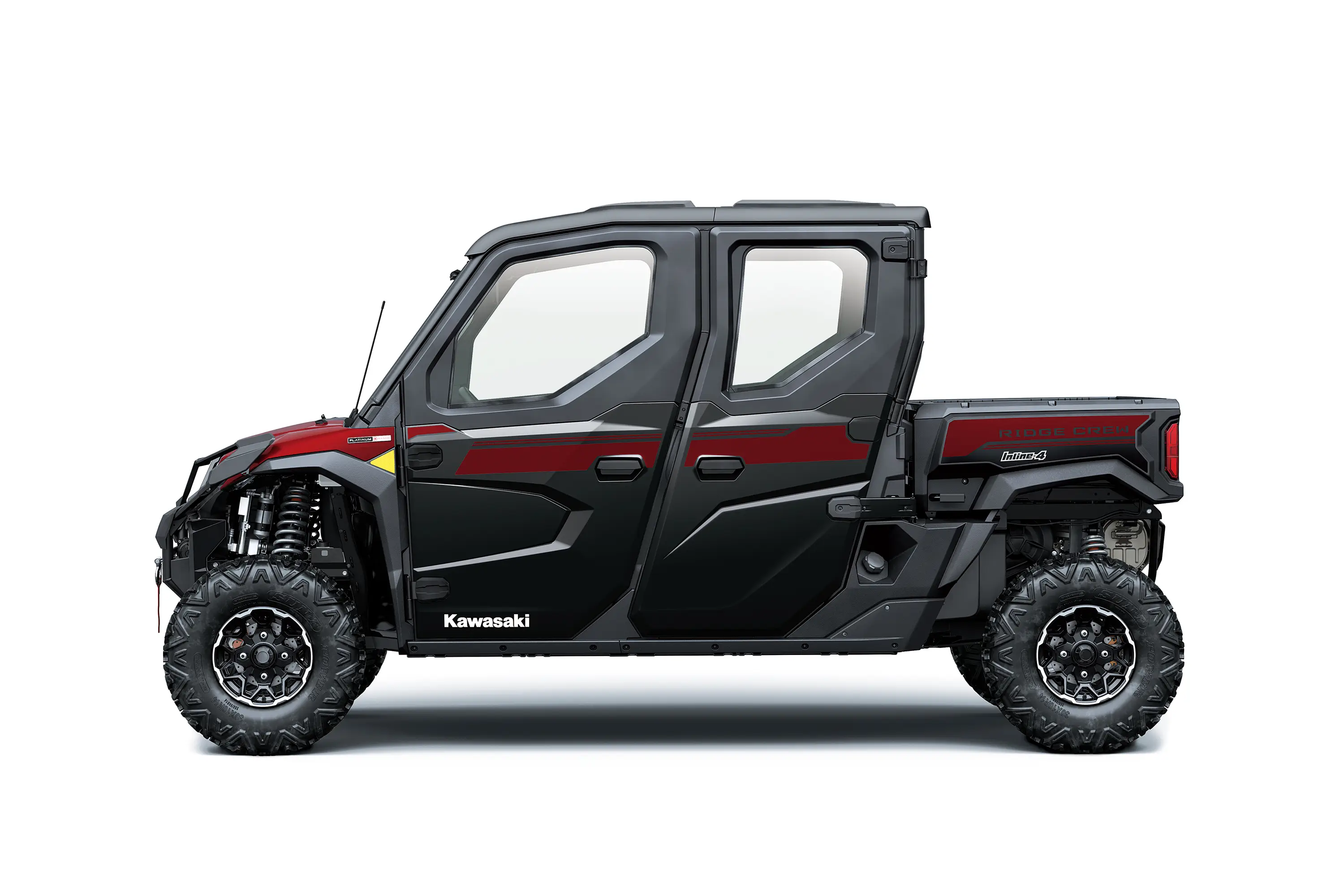

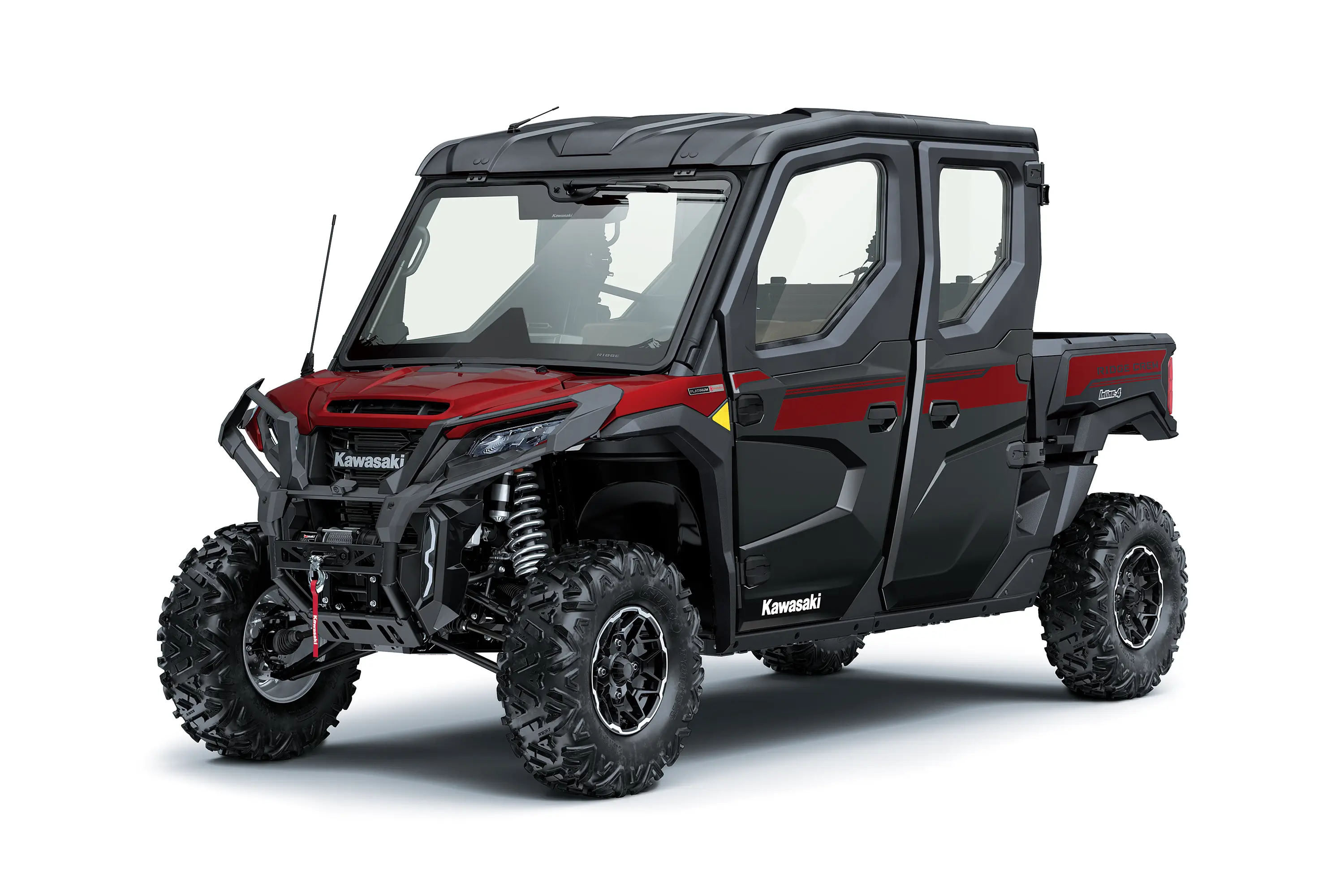

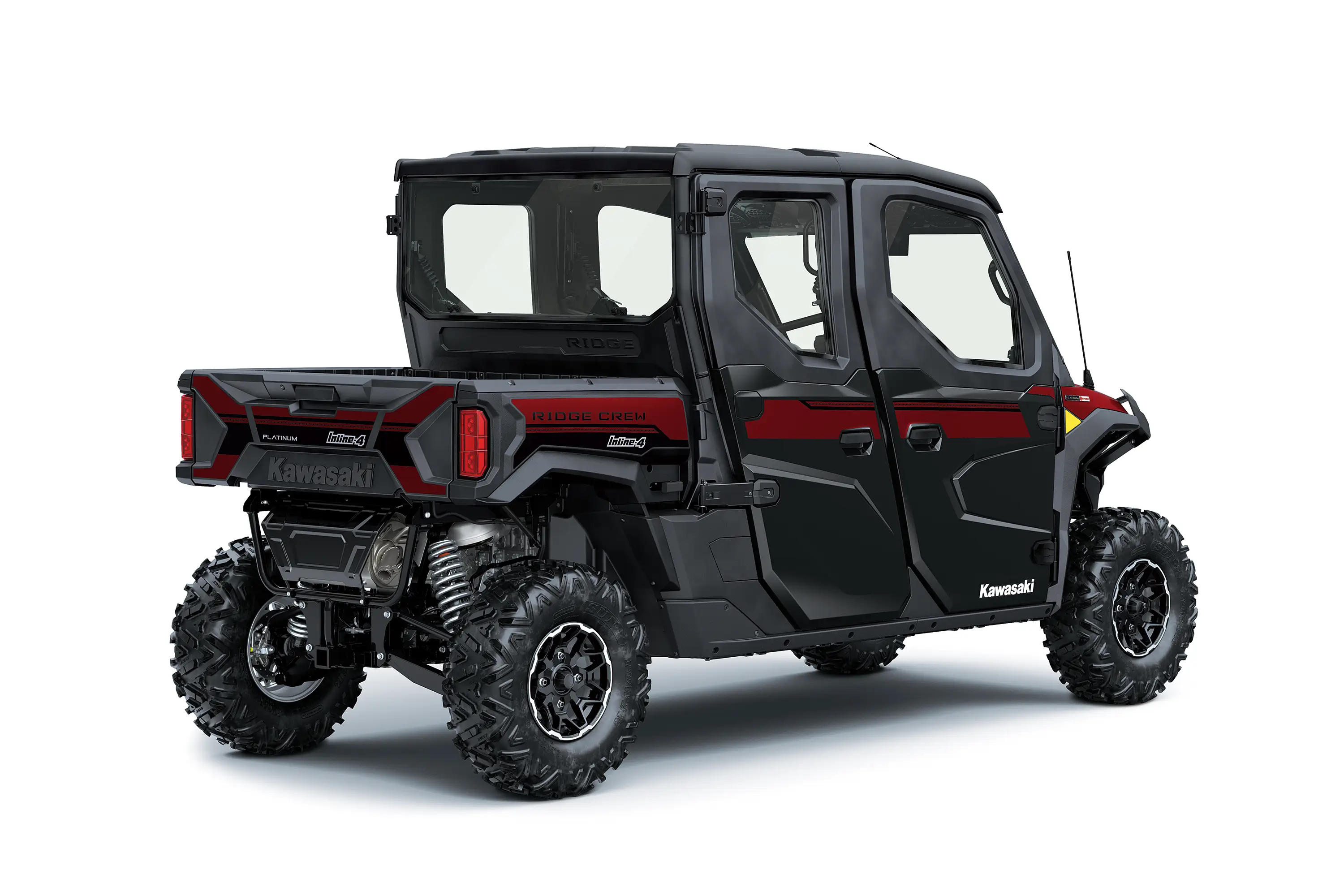

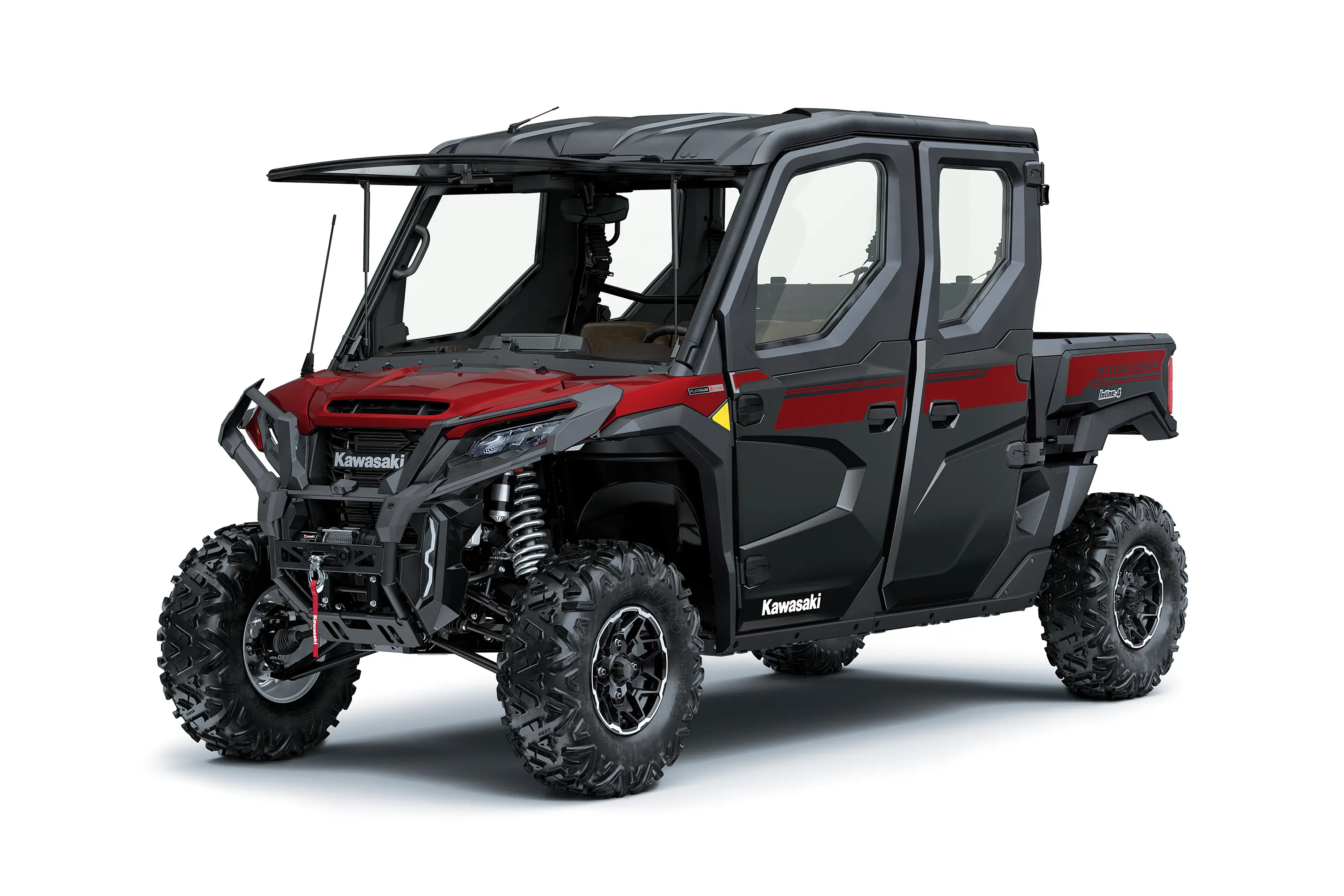

2027 Kawasaki RIDGE CREW PLATINUM RANCH HVAC Metallic Deep Red/Ebony- B504169
Get in Touch
AT A GLANCE
Industry
Powersports
Make
Kawasaki
Category
Side x Side
Year
2027
Model
RIDGE CREW PLATINUM RANCH HVAC
Trim
Metallic Deep Red/Ebony
MSRP
$37,999
Stock
B504169
Subcategory
3- to 6-Passenger
Info
Condition
New
Availability
Available
VIN
JKAWTCN12VB504169
Color
RED
Specifications
Engine Type
4-stroke, DOHC, 4-valve, in-line 4-cylinder, liquid-cooled
Engine Disp to Wgt
999cc
Horsepower
Max: 116.0 hp¹ @ 8,500 rpm
Torque
Max: 73.8 lb-ft @ 8,000 rpm
Bore x Stroke
73.4 x 59.0mm
Compression Ratio
10.6:1
Fuel System
EFI
Ignition/Starter
TCBI with Digital Advance | Electric
Transmission
Continuously Variable Transmission (CVT) with (H,L,N,R)
Primary Drive
Final: Selectable 4WD with locking front/rear differential, shaft
Enginee
Engine Braking: Yes
Alternator
Output (max): 85 amp
Electrical System
Rider Aids: Power Modes, Economical Riding Indicator
Suspension (Front)
Long-travel, Double wishbone
Front Wheel (Dia)
Travel: 12.7 in
Suspension (Rear)
Long-travel, Double wishbone
Rear Wheel (Dia)
Travel: 12.7 in
Front Tire
SUNF 30 x 10-14
Rear Tire
SUNF 30 x 10-14
Wheels
Type: 14 in Aluminum
Steering
Rack-and-pinion w/ Electric Power Steering (EPS)
Front Brake
Dual hydraulic 249mm discs with two-piston calipers
Rear Brake
Dual hydraulic 249mm discs with single-piston calipers
Ground Clearance
13.4/14.6 in (max preload)
Fuel Capacity
12.9 gal
Turning Radius
19.0 ft
Cargo Bed Capacity
1,000 lbs
Length
157.9 in | Cargo Bed: 34.6 in
Width
64.0 in | Cargo Bed: 49.0 in
Height
82.3 in | Cargo Bed: 12.8 in
Max Payload
1,290 lbs
Seats
6-person (2 row), bench seats
Tow Capacity
2,500 lbs
Lighting
All-LED lighting
Frame
Ladder type, tubular steel
Weight (Dry)
2,507.1 lbs
Weight (Wet)
Curb: 2,617.3 lbs
Wheelbase
122.2 in
Instrumentation
Digital speedometer, tachometer, fuel gauge, odometer, dual trip meters, total time, trip time, average speed, gear indicator, Driving Mode, Power Mode, clock, water temperature, battery voltage, oil change reminder, Bluetooth indicator, Economical Riding Indicator, maintenance reminder, high beam, neutral, reverse, and warning lights (battery, EPS, CVT, seatbelt, parking indicator, oil pressure, water temperature)
