TRUE ONE PASS TOOL
Conditions at planting time are all-important to crop yield and seedbed preparation.  The 875/877 Series Tilloll will level, incorporate and bring the soil to a nearly perfect seedbed condition in one trip.  Save field trips and you will be saving fuel, operator labor and equipment dollars.  Combining field trips conserves moisture and provides a firmer seedbed.  The soil is worked fewer times, depositing erosion resistant residue and coarser soil on the surface to prevent sealing.  Chemicals are successfully mixed throughout the seedbed in a single high-speed field trip.

TILLOLL DISC GANGS
The Tilloll Series features 20″ disc blades spaced at 7 1/2″ that start the process of combining operations.  The blades level, cut, and size residue to handle more challenging conditions.  The disc blades throw soil outward on a 10 degree angle and are limited by the disc gang shields behind the blades.  The chopper reel assemblies behind the shanks are set at the opposite angle as the gangs and will return the soil inward, keeping everything level.

HEAVY-DUTY SHANK MOUNT

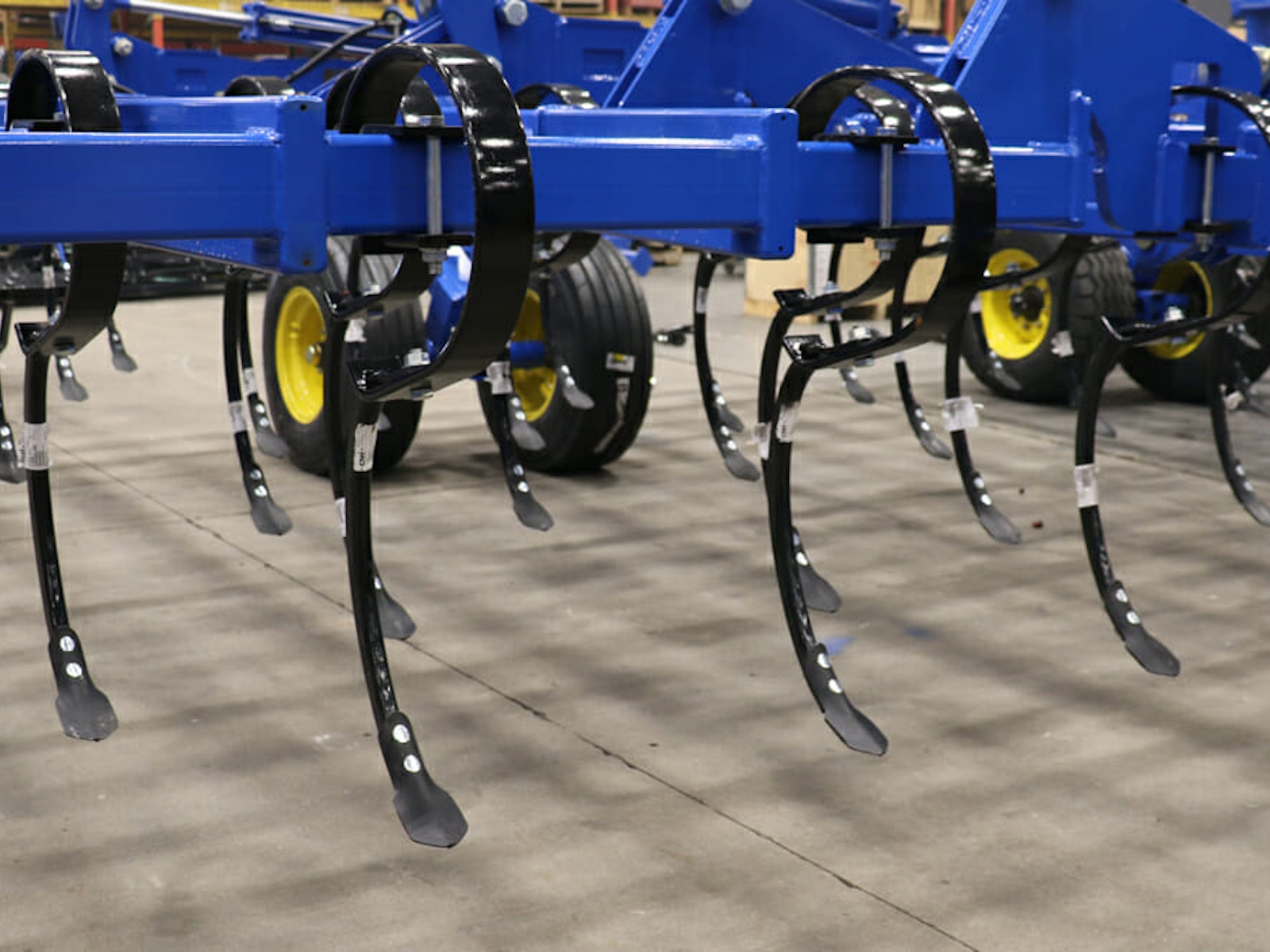

Edge bent shanks featuring spring clamps with 170 lbs. of point load take care of the tillage action in the center of the machine.  The increased point load and spring size will keep the sweep running level and true at faster speeds, improving sweep wear and weed killing performance.  Shanks are spaced at 9″ and come standard with 10″ sweeps.  Under frame clearance is 25 1/2″.

REAR LEVELING
Redesigned 5-blade choppers with heavy-duty trunnion bearings break clods, slice, and mix residue while directing soil inward towards the center the machine.  Chopper reels are 16″ in diameter, mounted on a 10 degree angle, opposite the direction from the front disc gangs to complete the level finish.  C-cushion bearing standards and trunnion bearings ensure maximum up-time and longevity in season.

A 3-row spike tooth leveler follows the chopper reels.  Each bar utilizes 3/4″ x 11″ square spike teeth on 2 1/2″ centers.  Aggressive spring loaded arms firm the soil and break clods, leaving a smooth finish for the planter.

TIME PROVEN
Nobody does it better than Landoll when it comes to preparing a seedbed in one trip.  The 875/877 Series Tilloll is the only time proven seedbed preparation machine you will need.  Landoll’s commitment to quality, reliability and performance assures you are getting the very best equipment – that’s the Landoll way!

Features May Include:

• 20” Concave Disc Blades Spaced at 7 ½”
• 10 Degree Gang Angle
• Reversible Scrapers
• C-Cushion Bearing Standards with 1 ½” Gang Bolt
• Soil Deflector/Spray Shield on Disc Gangs
• Spring Clamp Shanks with 170 lbs. of Point Load
• 25 ½” Under Frame Clearance
• 9” Shank Spacing
• 10” Sweeps
• Chopper Reel and Spike Leveling Attachment
• 16” 5-Blade Reel Mounted on Trunnion Bearings and C-Cushion Bearing Standards
• Chopper Mounted at 10 Degree Angle to Return Dirt from Front Gangs
• 3-Bar Spike Drag with Adjustable Spring Down Pressure and Tooth Angle
• Single Lip Cat. III or Cat. IV Hitch, Model Dependent
• Walking Tandem Wheels (Except on 875-15F), Heavy-Duty Hubs and Spindles
• Single Point Depth Control on 877 Models
• Edge Bent Shanks
• Powder Coat Paint, Sapphire Blue or Yellow, Model Dependent
• Safety Warning Lights
