2024 Brillion ROLLING PACKERS 93x60

2024 Brillion ROLLING PACKERS 93x60

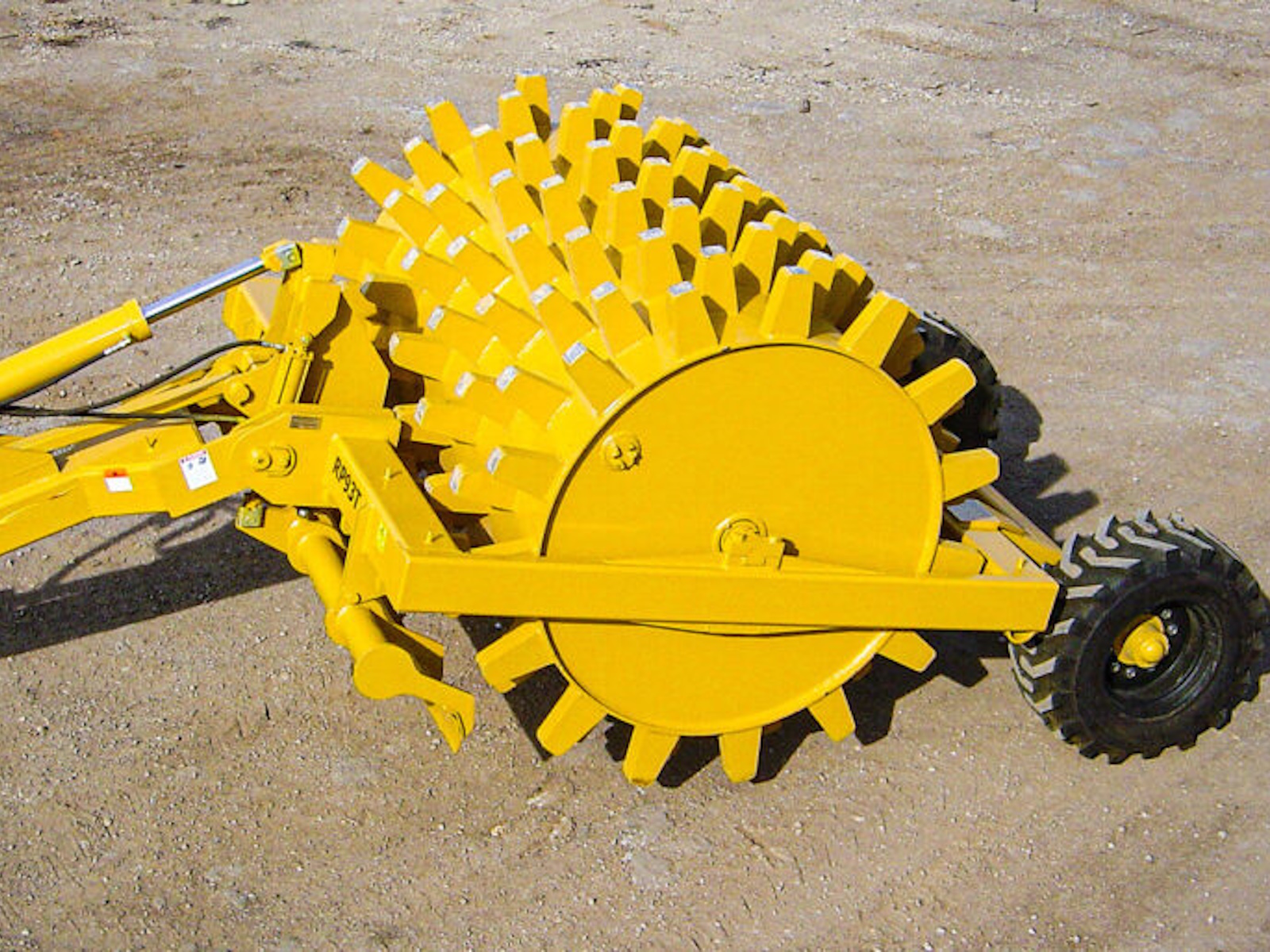

HEAVY-DUTY ROLLING MACHINE
The ICON Rolling Packer line includes 4 models.  Designed to assist in the compacting of job-sites, these machines will speed up final preparation and keep the job on schedule.

VERSATILITY BY MODEL
The performance of each of the models can be altered by adding or removing ballast from the rollers.  Pressure per square inch ranges from 201 to 418 depending on the model and type of ballast used.  The size of the packer teeth on the small model 48×48 is 7” tall by 2 ½” wide.  The larger models all use packer teeth that are 9” tall by 3” wide.  Tooth design is elliptical for increased speed and a higher percentage of the pack with less chipping.  The frames are independently flexible for each drum.  The drums are equipped with standard cleaners, which operate in forward and reverse, to keep moist wet soil from building up.

CONSTRUCTION GRADE
All drum shells are ½” thick.  Fill plugs are standard on all drums.  The heavy-duty design allows for tandem operation.  Rear hitches are standard equipment.  The hitches are equipped with both a single or double lip swivel.  The 93×60 model is available with a hydraulic transport that uses 15L x 19.5 tires.

Features May Include:

• Overall Packing Widths Range from 93” to 102”
• Side by Side 2 Drum Design
• Independent Flexible Frame for Each Drum
• Drum/Tooth Cleaners
• ½” Thick Drum Shell
• Rear Hitch for Tandem Operation
• Single or Double Swivel Hitch
• Hydraulic Transport Available on Model 93×60
• Model 93×60 can be Equipped with Optional Smooth Drum
