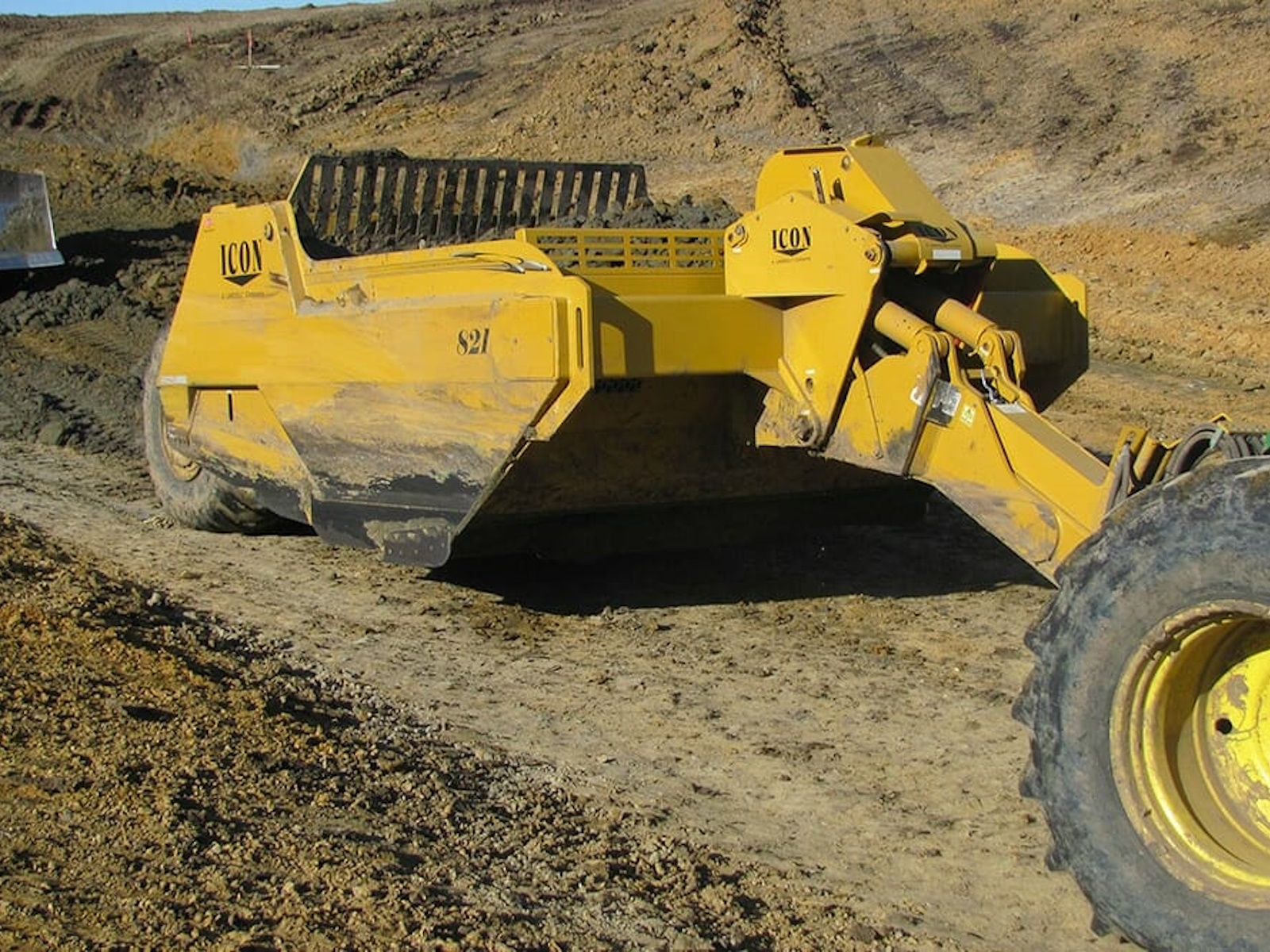

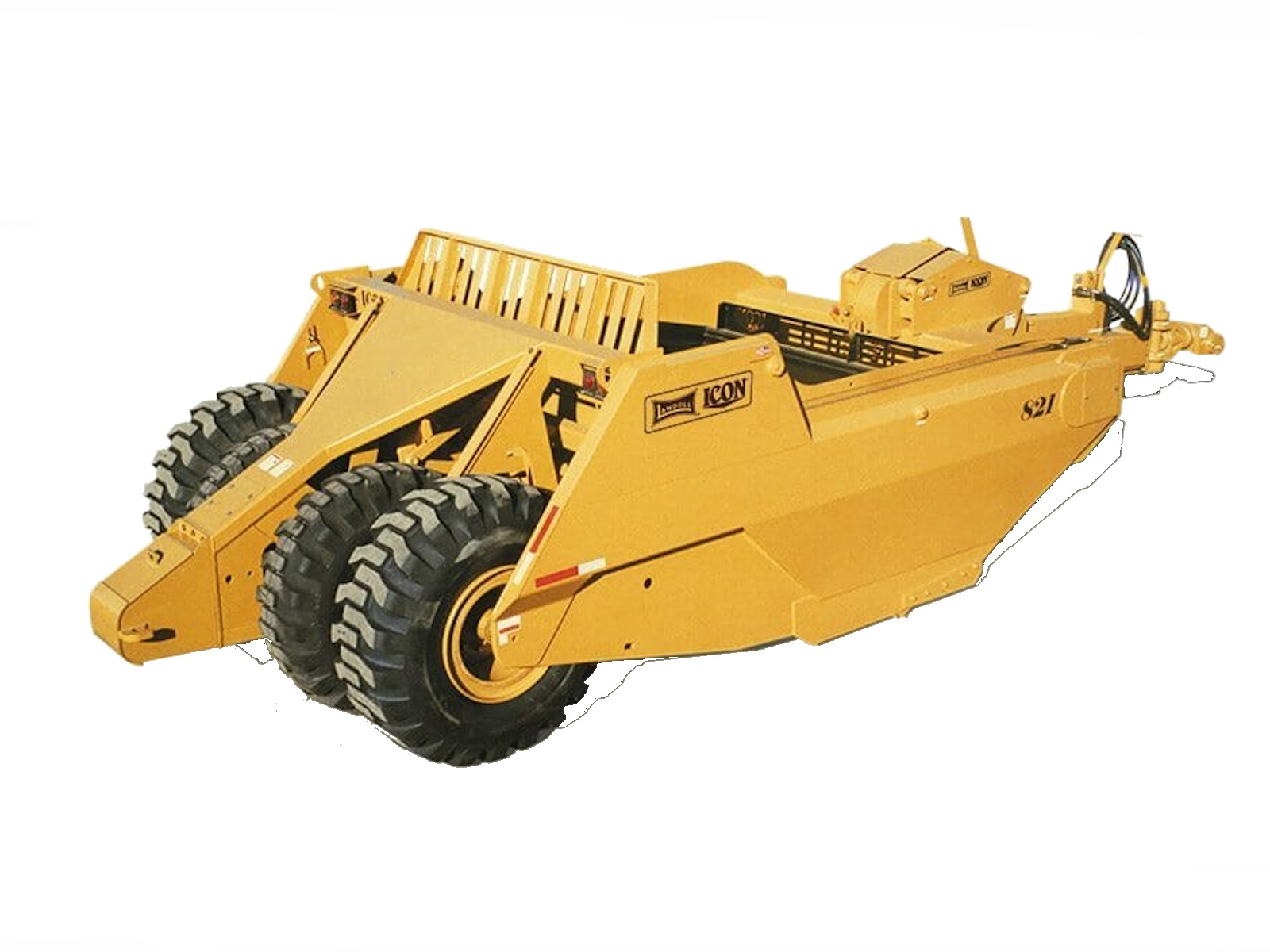

2024 Brillion 800 SERIES SCRAPER 821

2024 Brillion 800 SERIES SCRAPER 821

TOP OF THE LINE FRONT LOWERING SCRAPERS
The ICON 800 Series Scrapers are top of the line pull-type earthmovers.  These units are full-fledged industrial construction machines capable of handling the toughest earthmoving challenges.  Designed for use behind rubber tracked or rubber tired tractors, these units will harness up to 600 HP.  Sizes include 19 and 21 yard bowls.

UNLIKE ANY OTHER
Maximum durability, operator friendly control, patented swing wall eject, super-duty quick hitch and a long list of innovative features and benefits are not found on any other scraper.  The durable, functional and eye-appealing design gives the contractor a cost-effective machine with profitable return on investment, and a strong resale value.

MAXIMUM DURABILITY
The ICON 800 Series Scraper is fully assembled, lubed, filled with hydraulic oil and checked at the factory before shipping.  The machine is ready for the job on delivery to the customer.  After 36 to 48 hours of use, a quick check and adjustments are made by a servicing ICON dealer.  All ICON 800 Series Scrapers have a 6-month warranty.

USER FRIENDLY
Operator friendly controls use 2-valve sequencing hydraulics for efficient operation.  Tandem capability with a quick hitch on the lead scraper allows for one man mount/dismount.  Cab mounted controls with digital readout for precise reference to bowl and gate settings are standard.  A large push block is standard on all 800 Series scrapers.  The front gate and eject wall are finished in dirt-rejecting epoxy.  Feature for feature, the ICON 800 Series Scrapers are serious about earthmoving.

Features May Include:

• 19 or 21 Yard Heaped Capacity
• Front Lowering Unit
• Patented Swing Wall Eject System
• 18” Hydraulic Disc Brakes
• Double Wall Design for Added Strength (80,000 Yield T-1 Steel Material)
• Cast 360 Degree Swivel Hitch Rated for 600 HP
• Quick Hitch Allows for Easy One Man Hook-Up and Disconnect
• In-Cab Monitor to Gauge Depth and Gate Position
• 18” Ground Clearance
• 4,000 PSI Rated Hoses
• 29.5 Tires on 819
• 20.5 Tires and 23.5 Tires on 821
• Offset Tire Arrangement for Weight Distribution Between Loading and Hauling
• 3 1/4” Axles with Individual Axle Housings
• Optional Tandem Hitch Package
• Optional Quick Attach Tractor Drawbar
• Yellow Industrial Paint
• Safety Warning Lights
