2026 Yanmar TL50RP
Get in Touch
Description
2026 Yanmar TL50RP
Powerful Performance with Low Ground Impact

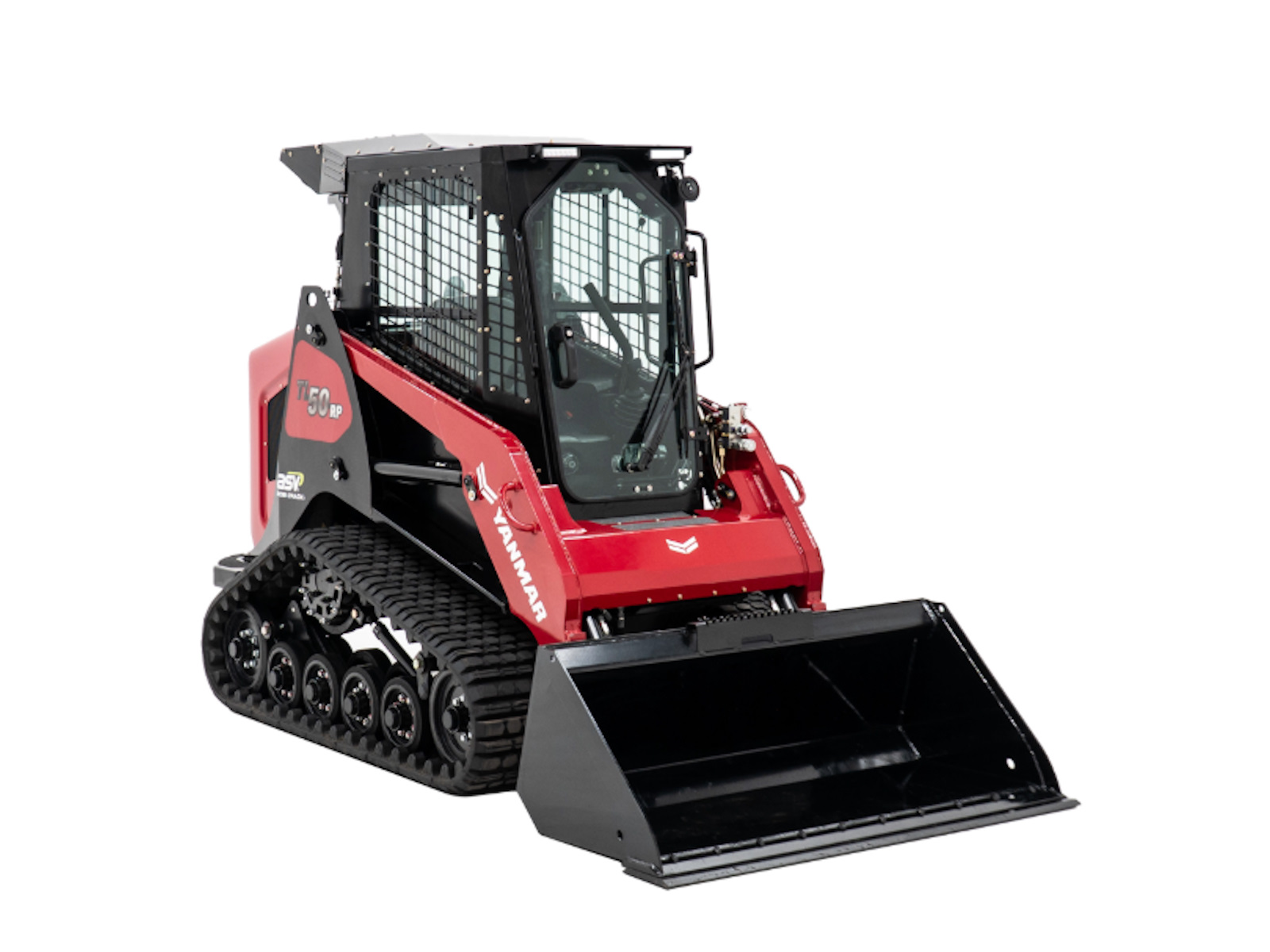

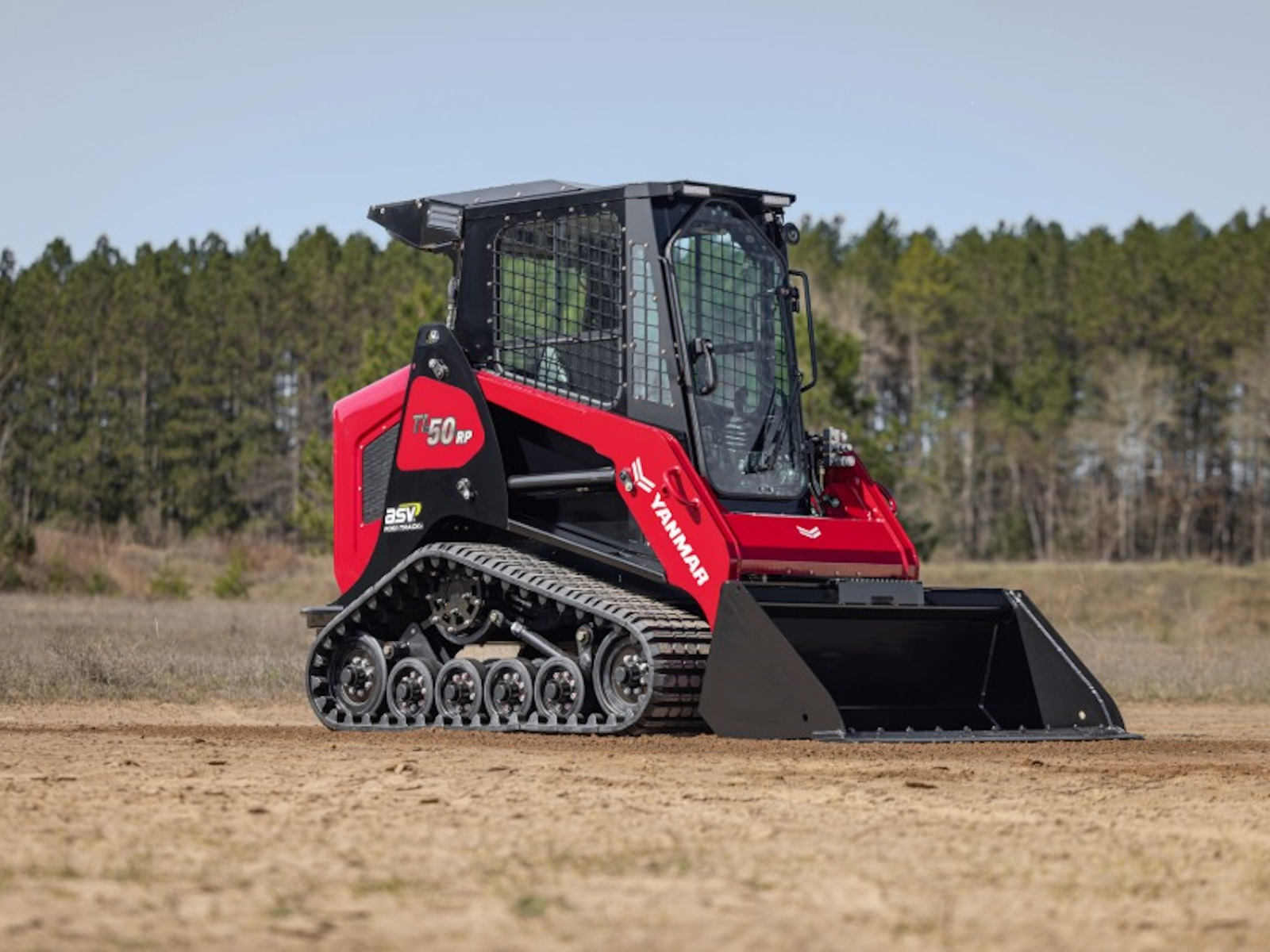

Introducing the TL50RP, a compact track loader that packs maximum power and lift capacity into a maneuverable 58.5″ platform. Built for demanding applications that require more from a compact machine, it delivers increased performance without giving up the jobsite agility contractors depend on. With ASV Posi-Track® undercarriage technology and an available all-weather cab, it’s built for any job, any season.
More Power. No Compromises.
The TL50RP is built on our patented ASV Posi-Track® fully suspended torsion-axle undercarriage and 15-inch tracks that distribute weight across a larger ground contact area, keeping ground pressure at just 3.0 psi even under full load. Working effectively across delicate surfaces, soft turf, and demanding terrain where both performance and ground protection matter. Built for construction, land management, snow removal, and rental operations, the TL50RP handles heavier workloads while maintaining control in tighter working environments.
Features May Include:
Built Around the Operator
- The TL50RP keeps operators comfortable and productive in any conditions. An available all-weather cab provides year-round protection from the elements, while large windows deliver clear sightlines in every direction. An optional hydraulic quick attach makes switching between attachments fast and effortless, without ever leaving the operator station.
Built to Perform, Easy to Maintain
- A turbocharged Yanmar diesel engine produces 53.8-horsepower and 103-foot pounds of peak torque. With a 1,400-pound rated operating capacity and 2,920-pounds of breakout force, it’s built to handle heavier material confidently, job after job, season after season. A rear-tilting hood keeps maintenance simple and downtime short.
Intuitive Control for Every Task
- Pilot operated hydraulic joysticks manage loader and drive functions independently, with auxiliary variable flow available via joystick buttons or continuous console switch. The hand-operated rotary throttle gives precise engine speed management, and the 4.3-inch color display puts key machine data right in front of you.
Info
Industry
Agriculture
Make
Yanmar
Model
TL50RP
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Warranty
2 year
Family/Type
Cooling and Capacity: Engine-driven fan and coolant/antifreeze-filled radiator
Fuel Type
Diesel
Length
Of Track on Ground: 57 in.
Ground Clearance
Contact Area: 1,713 in
Wheels
Roller: Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include metal- face sealed bearings
Width
Track: 15 in.
Drivetrain
System: Two hydrostatic direct drive sprockets controlled by single joystick
Displacement
95.7 cu in
Fuel Capacity
13 gal. | Rated Operating (35% of Tipping Weight): 1,400 lbs. | Operating (50% of Tipping Weight): 2,000 lbs.
Fuel System
Cooling: High efficiency oil cooler beside engine radiator, not stacked
Engine Type
Diesel, 3-cylinder, turbocharged
Weight
5,205 lbs. | Operating (Open ROPS): 5,205 lbs. | Operating (Enclosed Cab): 5,530 lbs. | Ground Pressure: 3.0 psi | Tipping: 4,000 lbs.
Power/Horsepower
53.8 HP
Notes
ROC: 1,400 lbs. | Loader Arms: Radial | Travel Speed, Maximum: 7.1 mph | Breakout Force: 2,920 lbs. l Auxiliary Hyd. Flow, Standard: 13.3 gpm | Auxiliary Hyd. Pressure, Standard: 3,000 psi | Controls: Variable flow via joystick rocker switch, or continuous via console switch. | Couplers: Push to connect quick couplers mounted on manifold block. Pressure relief valve on block | Quick-Attach Mounting Plate: Universal standard skid steer quick attach coupler with manual or hydraulic latching pins | Emission Controls: Meets all U.S. EPA Tier 4 final standards | Undercarriage: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads | Nominal Charge: 12 V | Charging System: 80 amp alternator | Outlets: 1-12 V port inside operator station | Wiring: Pre-wired for all factory-available accessories | Cab: Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P) | LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction | Machine Display: Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
Battery
590 CCA
Air Filter (Cabin)
Intake Cleaner: Dual stage
Seats
Vinyl seat with built-in operator presence switch (B); premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 2 in. wide seat belt
Torque
103 ft-lb
Engine
Speed: Hand-operated rotary throttle
