2026 Yanmar TL100VP Forestry
Get in Touch
Description
2026 Yanmar TL100VP Forestry
Forestry Performance Without Compromise

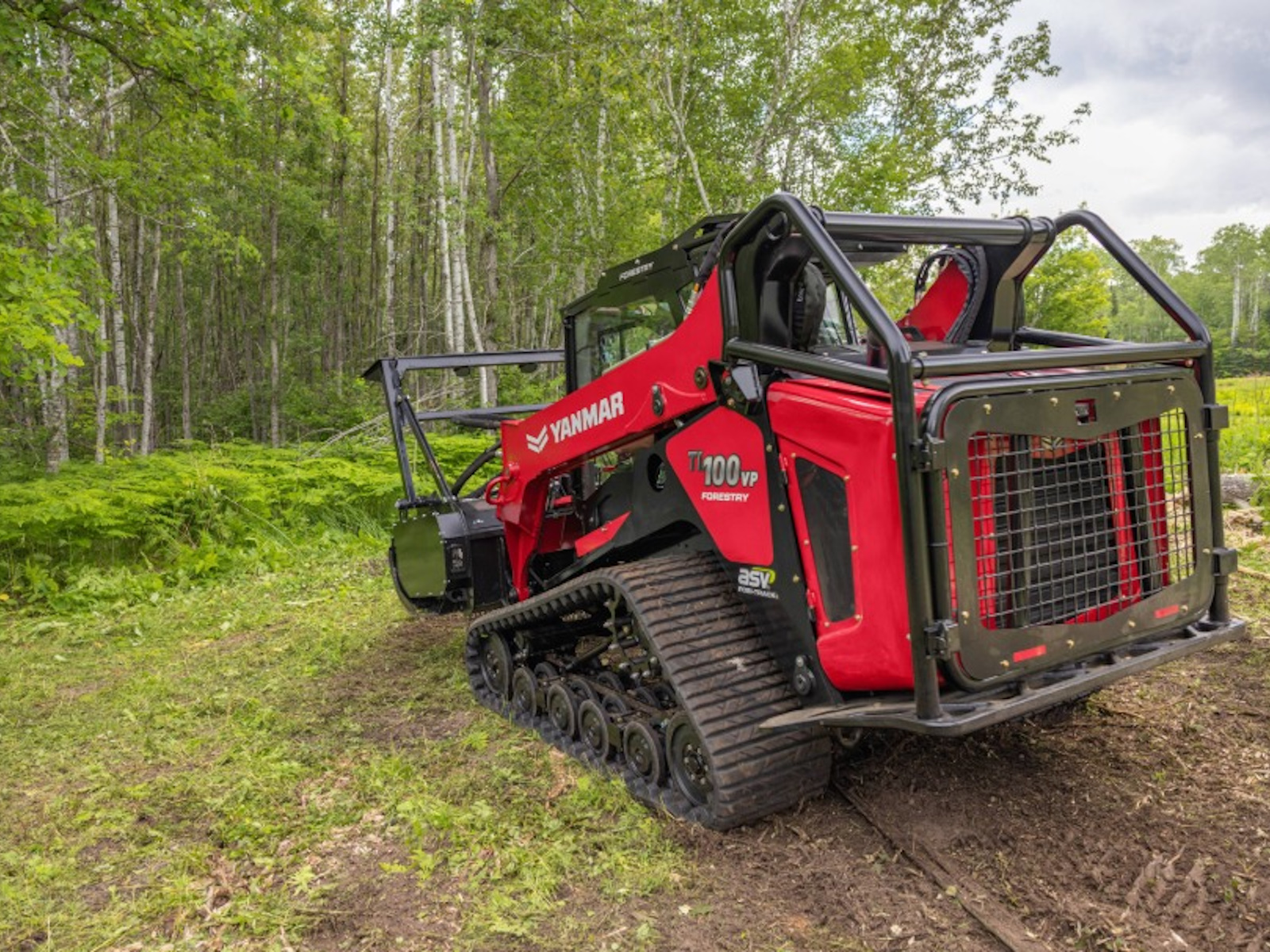

The TL100VPF brings serious forestry performance and is engineered for the toughest vegetation management and land-clearing applications. Combining 103.5 horsepower, high-flow hydraulics, purpose-built forestry guarding and our advanced ASV Posi-Track® dual-level suspended torsion-axle undercarriage, it delivers the durability, protection and performance professionals demand in the harshest operating conditions.
Take Command of Rough Terrain
From mulching and right-of-way clearing to demanding site preparation, the TL100VPF brings heavy-duty capability to challenging forestry work. It has a 41-gpm high-flow hydraulic system powering demanding attachments. Features a standard reversing hydraulically driven cooling fan and is engineered to run at full load, 100% of the time, in ambient temperatures up to 118°F. A 4,100-pound rated operating capacity and the ASV Posi-Track® undercarriage provide the strength and stability needed to work confidently in difficult terrain and changing ground conditions.
Features May Include:
Put 103.5 Horsepower Behind the Mulcher
- The TL100VPF combines its Yanmar engine with standard 41-gpm high-flow hydraulics to drive demanding forestry attachments. Large hydraulic lines and direct-drive pumps help reduce power loss, while the heavy-duty cooling system supports efficient operation during intensive land-clearing work.
Protection Built for Forestry
- Purpose-built guarding helps protect critical machine components in harsh operating conditions, while the forestry-equipped cab provides enhanced operator protection. A standard rearview camera and LED work lights improve visibility, and the 7-inch display keeps vital machine information within easy view.
Traction for the Terrain Ahead
- The ASV Posi-Track® undercarriage features suspended wheels and independent torsion axles to maintain ground contact over rough terrain. Standard 20-inch wide tracks provide a broad footprint and low ground pressure, while the suspended design delivers a smoother ride that helps reduce operator fatigue. Standard SmartAssist Remote telematics provides convenient access to machine location, utilization and maintenance information.
Info
Industry
Agriculture
Make
Yanmar
Model
TL100VP Forestry
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Warranty
2 year
Weight
11,570 lbs. | Ground Pressure: 4.1 psi | Tipping: 11,714 lbs.
Power/Horsepower
103.5 HP
Notes
ROC: 4,100 lbs. | Loader Arms: Vertical | Travel Speed, Maximum: 9.3 mph | Auxiliary Hyd. Flow, Standard: 23 gpm | Auxiliary Hyd. Flow, High: 41 gpm | Auxiliary Hyd. Pressure, Standard: 3,481 psi | Auxiliary Hyd. Pressure, High: 3,989 psi | Controls: Variable flow via joystick rocker switch, or continuous via console switch. | Couplers (Flat Faced Couplers): 1/2 in. low flow, 3/4 in. high flow | Quick-Attach Mounting Plate: Universal standard skid steer quick attach coupler with manual or hydraulic latching pins | Emission Controls: Meets all U.S. EPA Tier 4 final standards | Undercarriage Suspension: Advanced dual level suspension, two independent torsion axles combine with two independent torsion bogie wheels per undercarriage | Nominal Charge: 12 V | Charging System: 80 amp alternator | Outlets: 1-12 V port inside operator station | Wiring: Pre-wired for all factory-available accessories | Cab: Cab: All Weather Forestry Cab with heat and air conditioning, 3/4 in poly door, 1/2 in poly sides, forestry guarding | Controls: Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds | Machine Display: Multi-functional color 7 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
Fuel Capacity
34 gal. | DEF: 5 gal. | Rated Operating (35% of Tipping Weight): 4,100 lbs. | Operating (50% of Tipping Weight): 5,857 lbs
Engine Type
Diesel, 4-cylinder, turbocharged
Fuel System
Cooling: High efficiency side-by-side radiator and oil cooler, not stacked
Displacement
189.2 cu in
Torque
291 ft-lb
Family/Type
Cooling and Capacity: Hydraulically-driven fan and anti-freeze filled radiator cooling system | Track: General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads
Air Filter (Cabin)
Intake Cleaner: Three-stage
Width
Track: 20 in.
Length
Of Track on Ground: 71 in.
Ground Clearance
Contact Area: 2,845 in
Drivetrain
System: Direct drive hydrostatic pumps powering two direct drive sprocket motors controlled by selectable electronic ISO/H-pattern joysticks
Wheels
24 high-density polyurethane and rubber wheels per track, wheels include sealed bearings
Battery
950 CCA
Seats
Adjustable air ride suspension seat, single sided lap bar and 2 in. wide seat belt
Engine
Speed Control: Hand-operated dial with foot throttle
Fuel Type
Diesel
