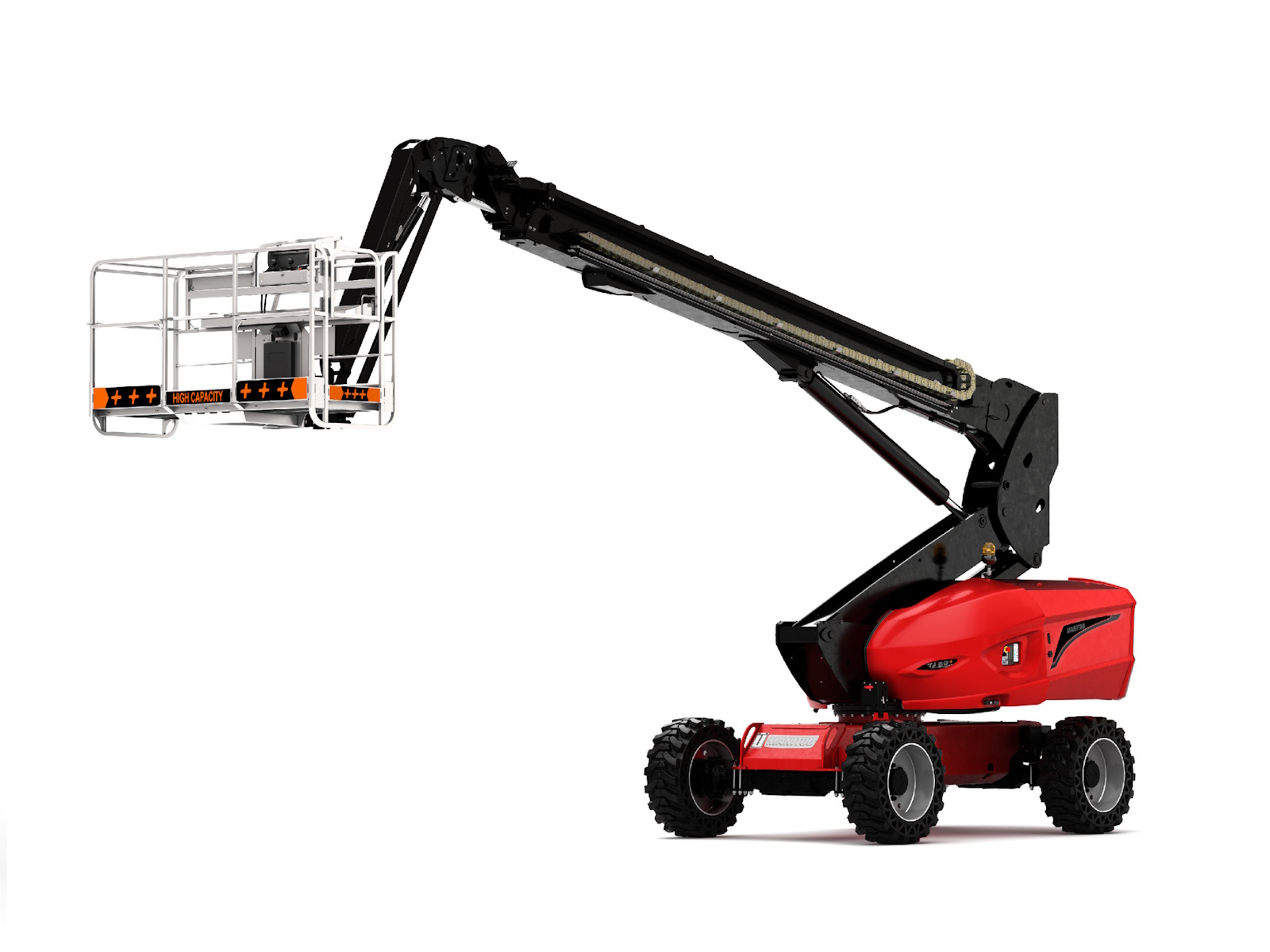

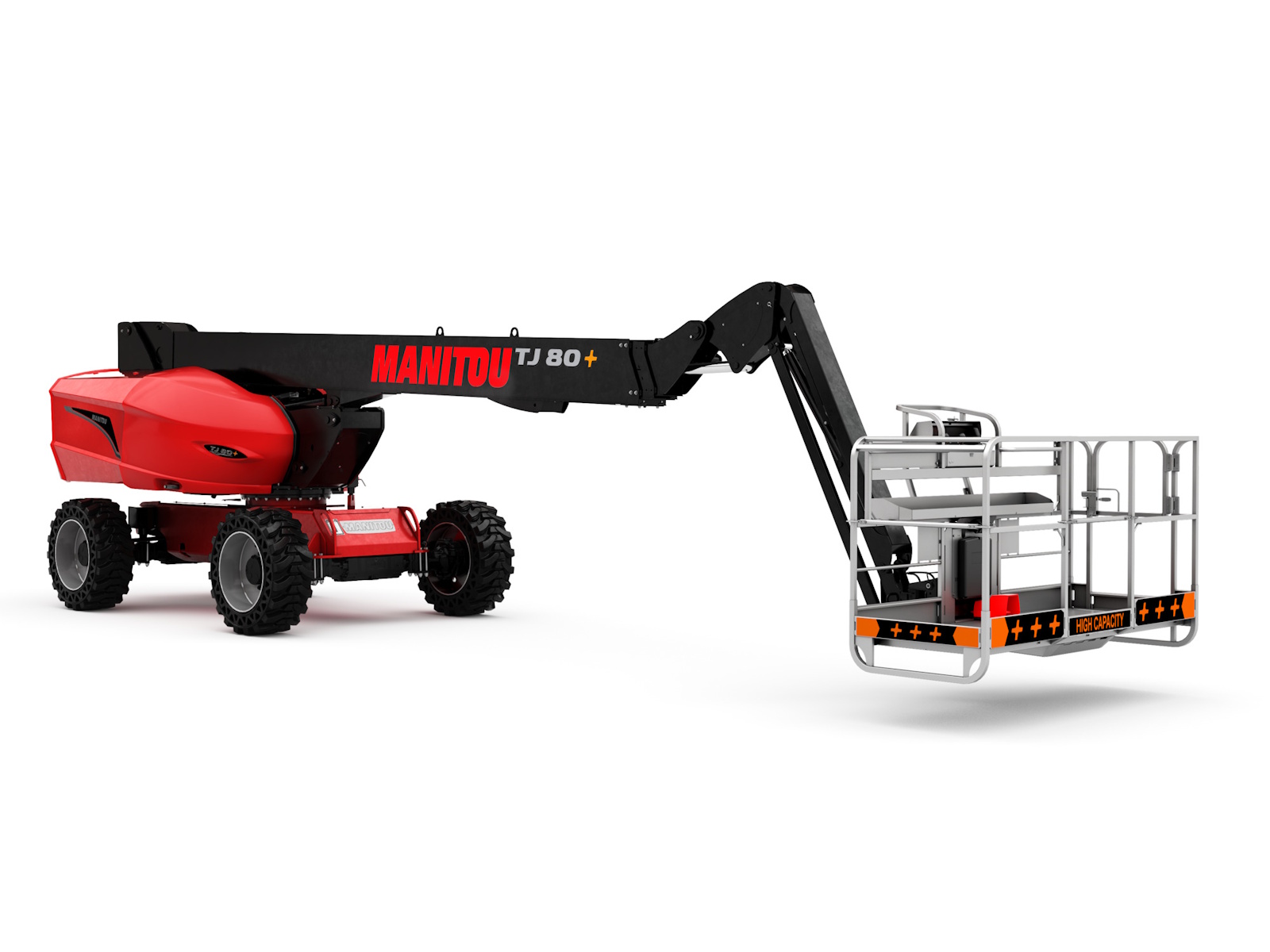

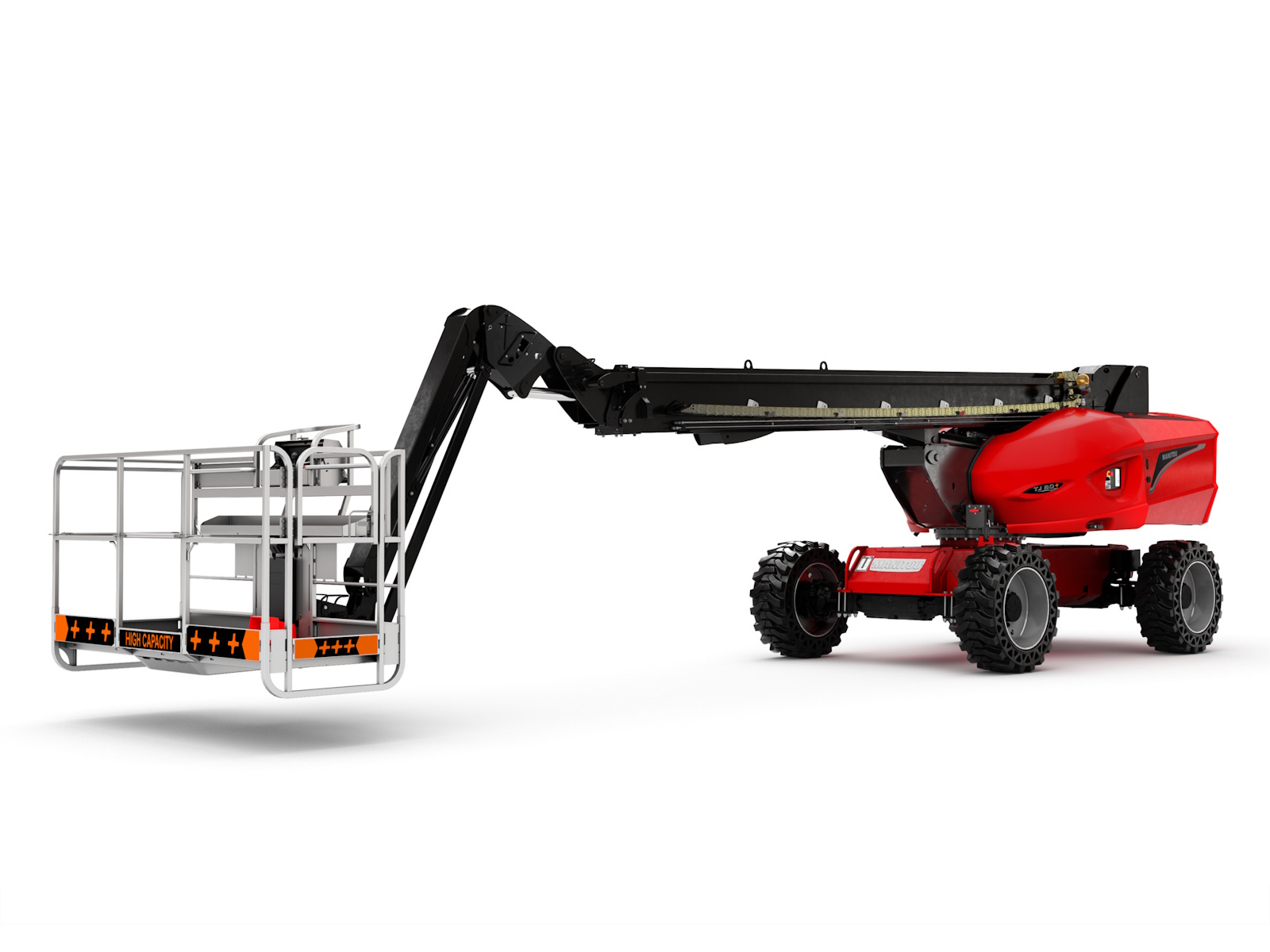

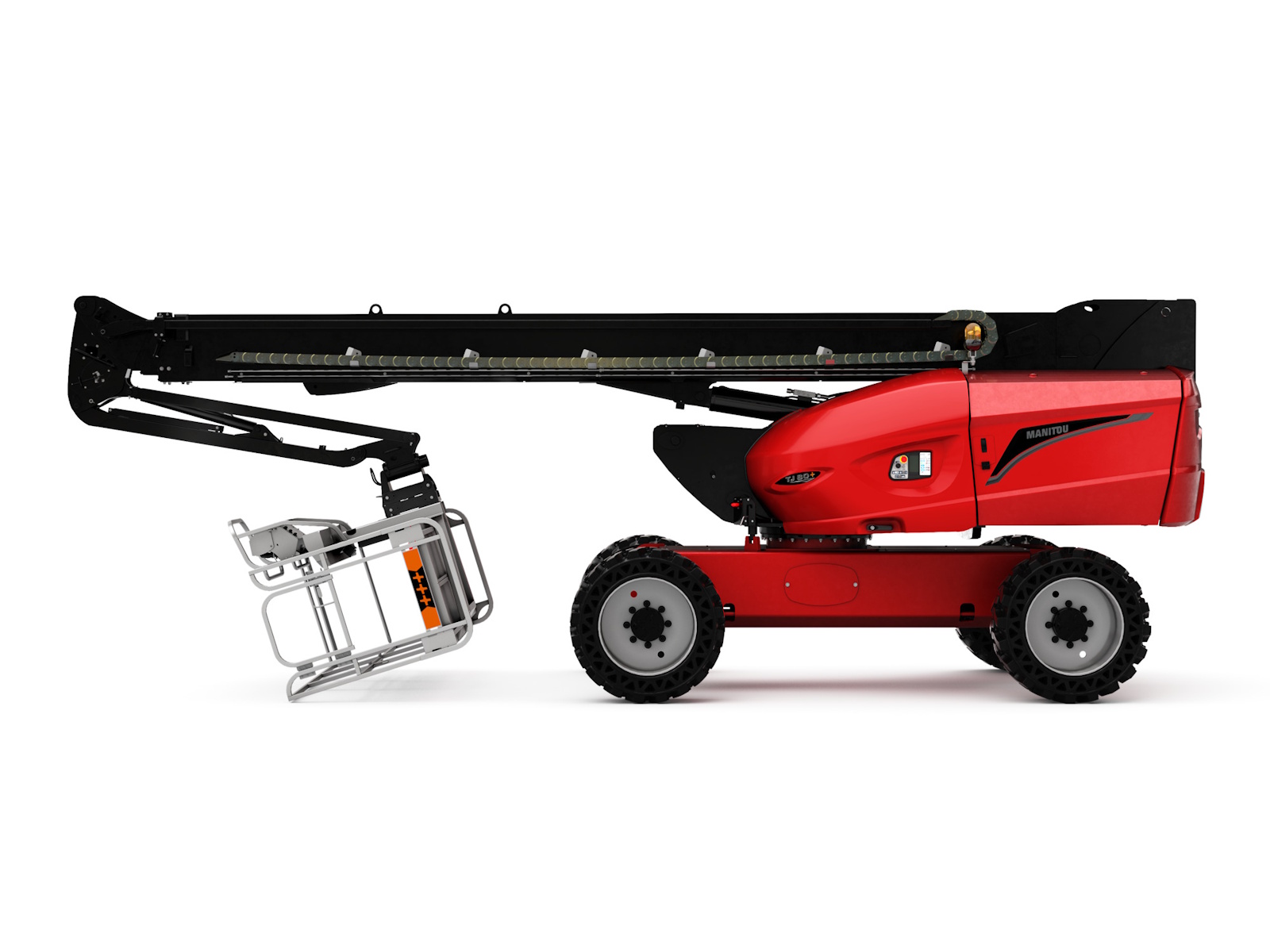

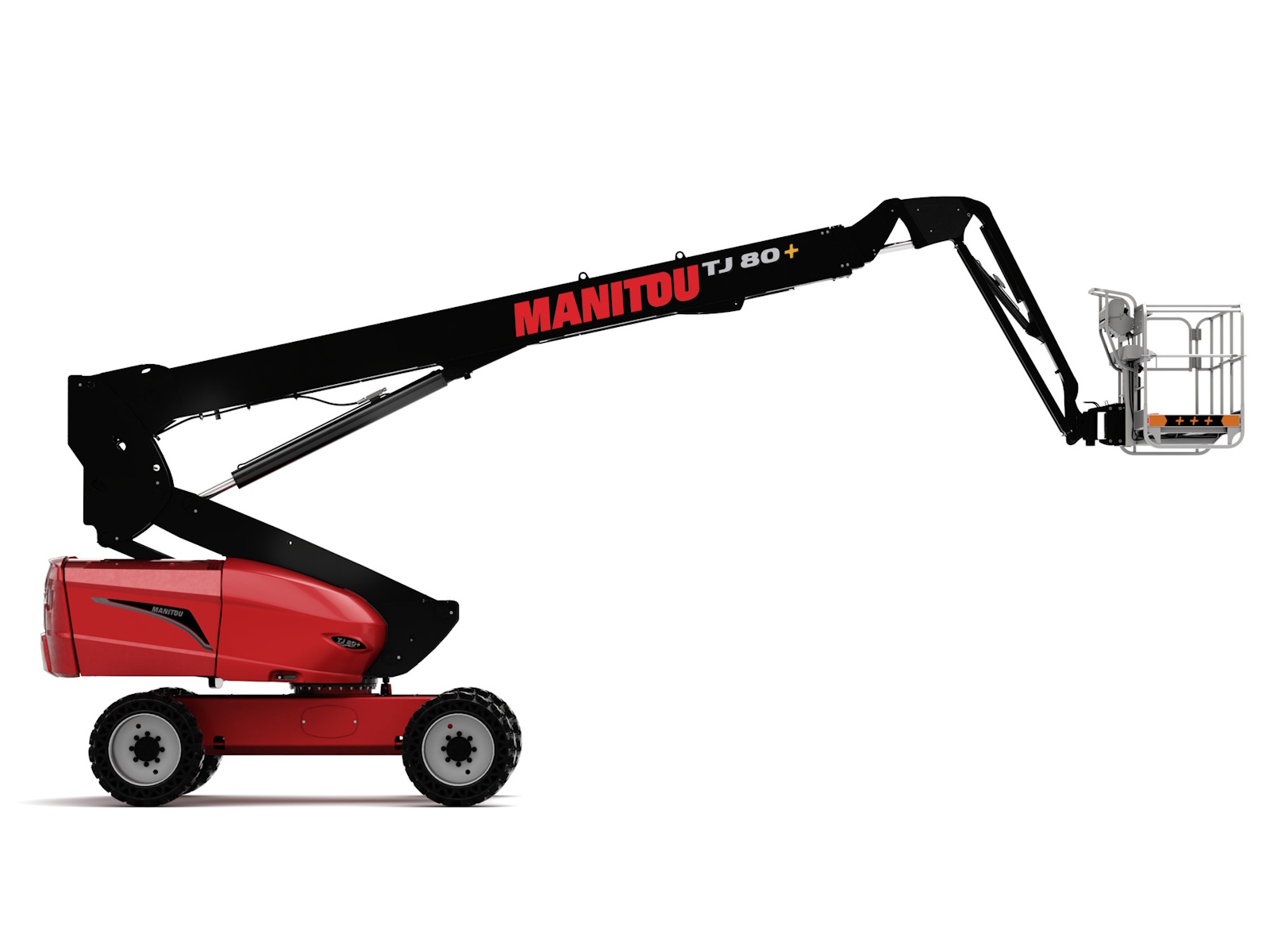

2026 Manitou Group TJ 80+

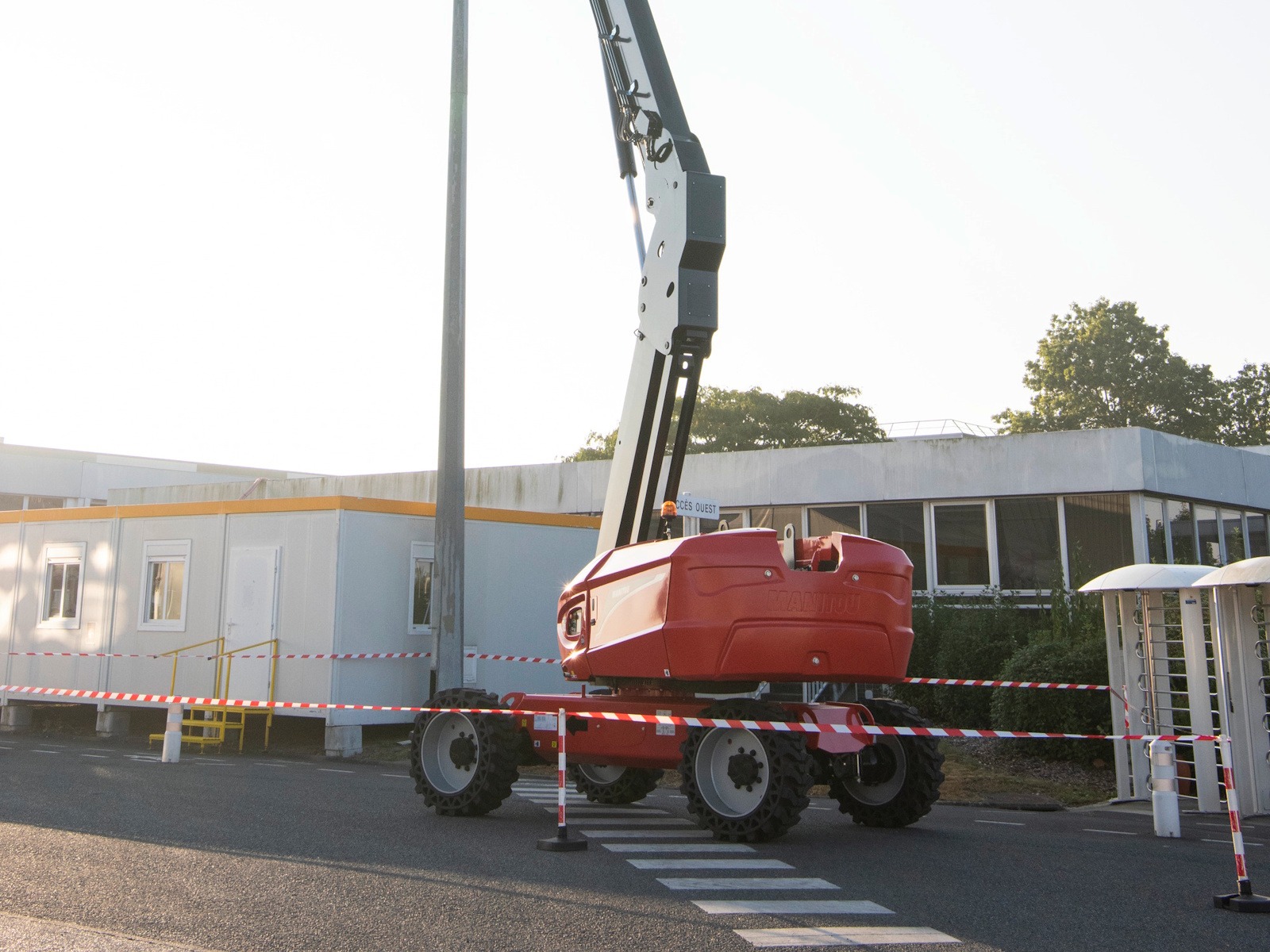

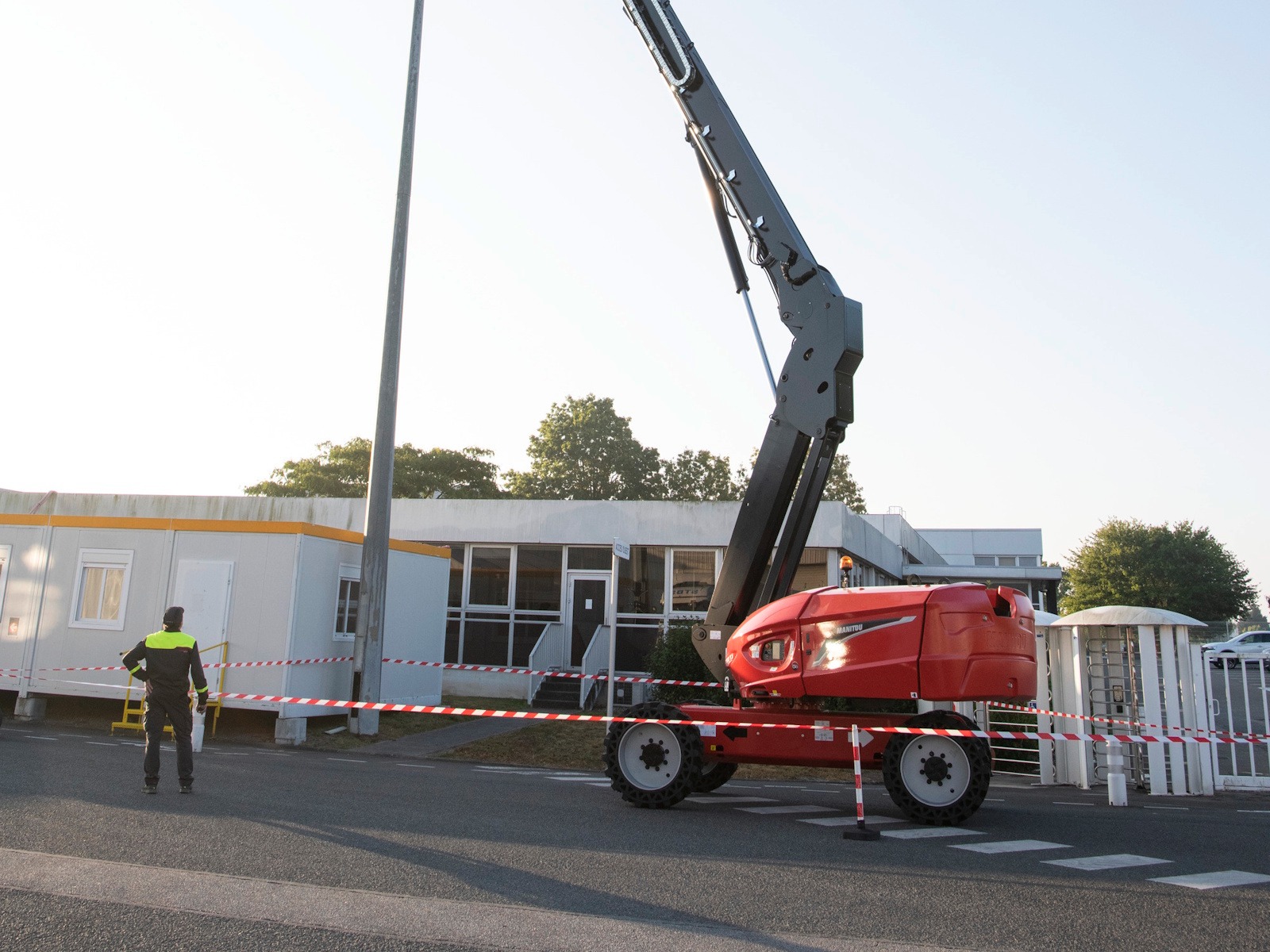

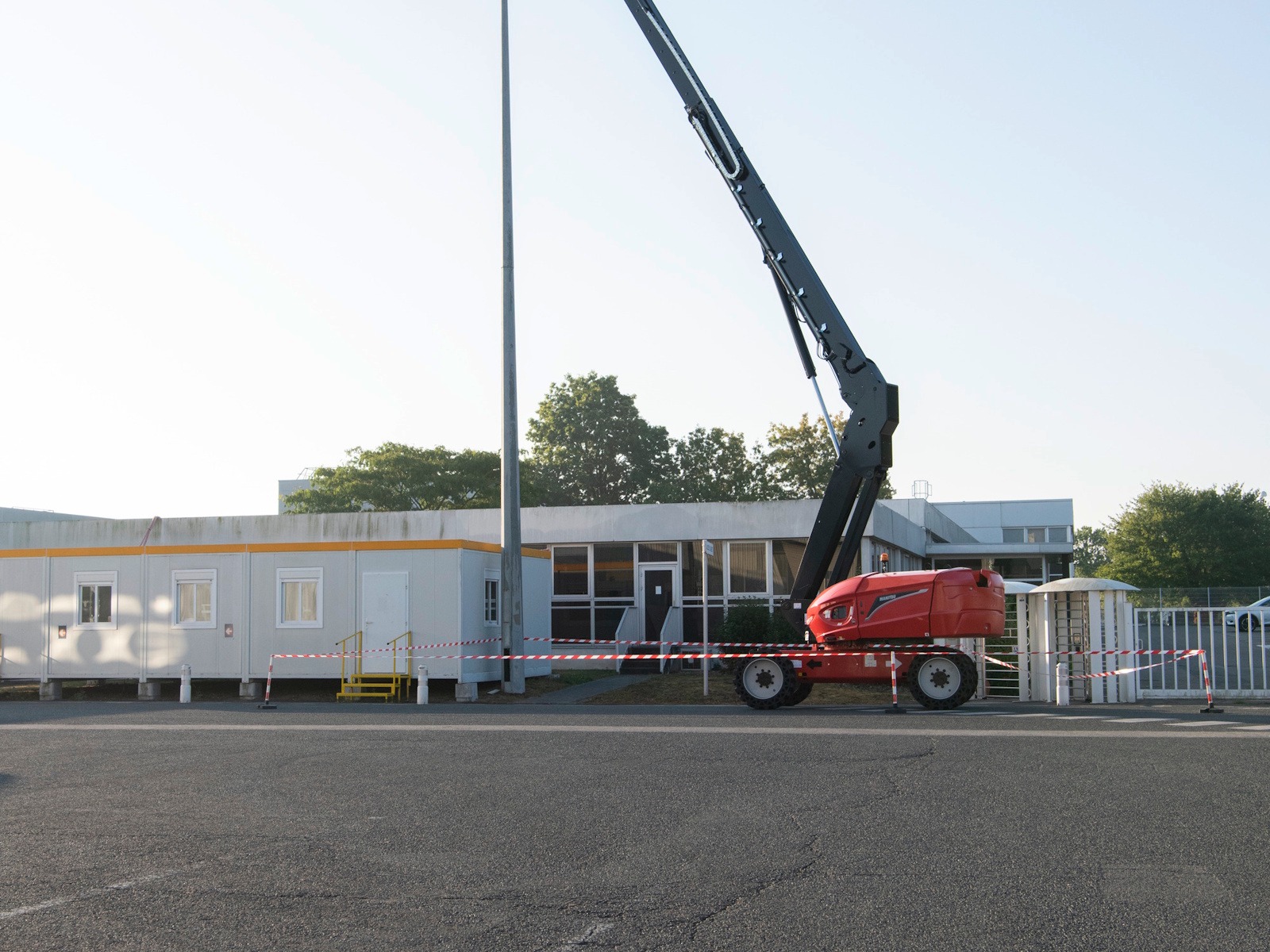

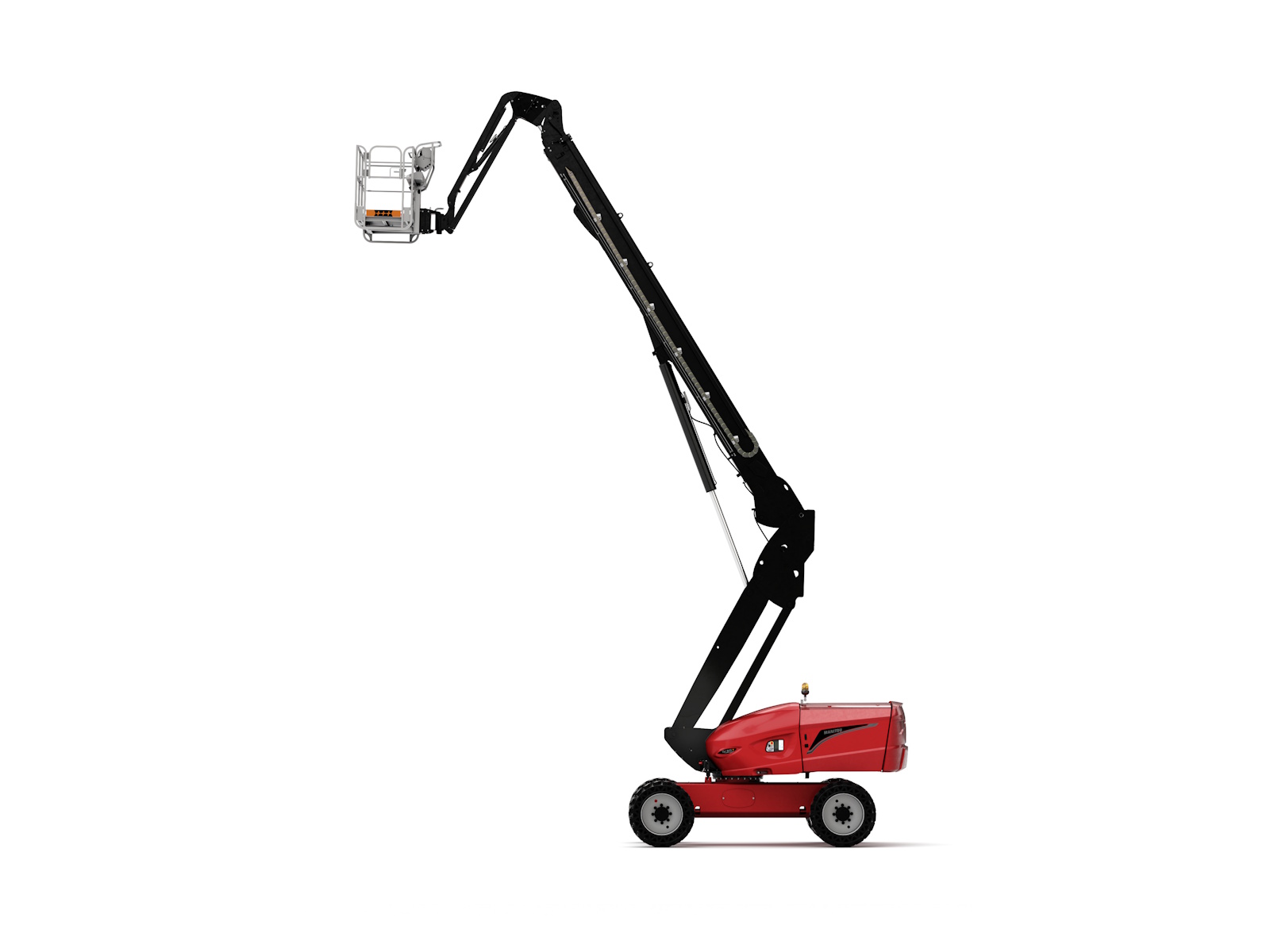

Take advantage of the performance of the TJ 80+ telescopic MEWP! This latest boom lift meets all your requirements in terms of off-road capability, strength, power and security. With the telescopic mast and compact structure of the machine, you can work easily in the tightest spaces. The advantages of the TJ 80+ make it an ideal lifting solution to work daily on the jobsite: robust design, continuous 360 degree rotation, 4 wheel steering, transmission bridges, extra platform capacity of 899 lb ... Optimize your work at height and improve productivity each day!
Info
Industry
Agriculture
Make
Manitou Group
Model
TJ 80+
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height
8 ft 11 in | Working height: 84 ft 5 in | Platform height: 77 ft 10 in | Floor height (access): 1 ft 4 in | Overall height (stowed): 9 ft 2 in
Notes
Max. outreach: 64 ft 8 in | Pendular arm rotation (top / bottom): +70 ° / -63 ° | Platform capacity: 899 lb | Turret rotation: 360 ° | Platform rotation (right / left): 90 ° / 90 ° | Number of people (indoor / outdoor): 3 / 3 | Platform dimensions (length x width): 7 ft 7 in x 2 ft 11 in | Counterweight offset (turret at 90°): 4 ft 8 in | Counterweight Oversize / Reach: 4 ft 8 in | Drive speed - stowed: 3 mph | Drive speed - raised: 0.50 mph | Gradeability: 40 % | Permissible leveling: 4 ° | Ground Pressure: 309 PSI | Hydraulic Pressure: 5802 PSI | Hydraulic tank capacity: 25 US gal | Vibration on hands/arms: < 2 ft/s²
Weight
Platform weight*: 35946 lb
Length
35 ft 7 in | Overall length (stowed): 25 ft 10 in | Jib length: 7 ft 10 in
Width
8 ft 2 in
Turning Radius
Internal turning radius (over tyres): 6 ft 6 in | External turning radius: 14 ft 3 in
Ground Clearance
Ground clearance at centre of wheelbase: 1 ft 4 in
Wheelbase
9 ft 2 in
Tires
Solid Tyres Cured-On | 40 x 14 in / 1025 x 365 mm
Wheels
Drive wheels (front / rear): 2 / 2 | Braking wheels (front / rear): 2 / 2
Steering
Steering wheels (front / rear): 2 / 2
Engine
Kubota - D1803-CR-TIE4B | Engine norm: Tier 4
Power/Horsepower
49.60 Hp / 37 kW
Fuel Capacity
19 US gal
