Description

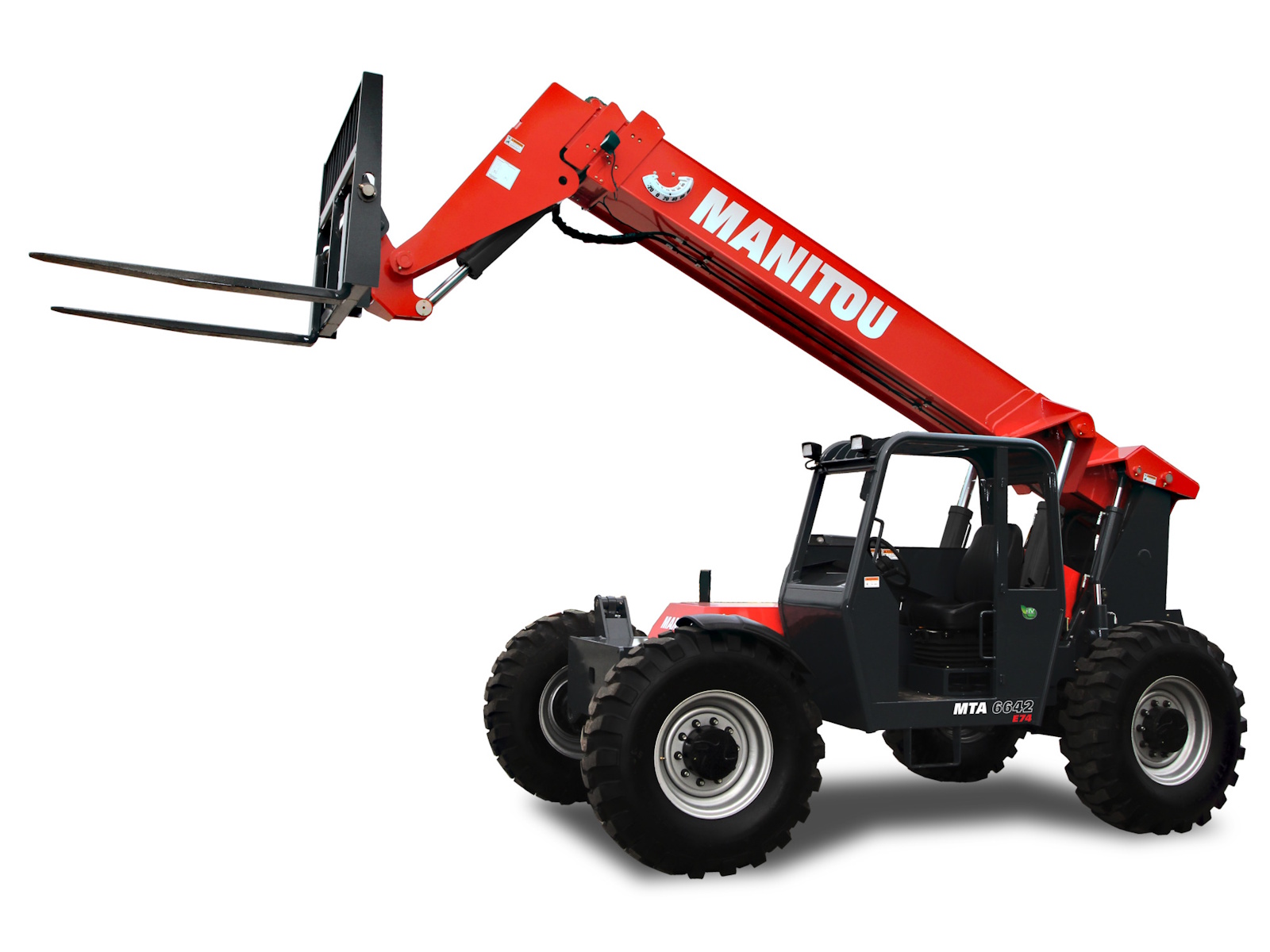

2026 Manitou Group MTA 6642 E74
The MTA 6642 E74 telescopic handler responds specifically to the requirements of the construction, energy or civil engineering markets. With a maximum load capacity of 2994 kg and a significant lift height (12.8 m), this high-performance model allows you to handle your materials in ideal conditions. Work with comfort and safety thanks to 360 degree visibility offered by the ergonomic cab, off-road design and many of the telescopic protection systems. To meet all your needs, the MTA 6642 E74 is compatible with many attachments.
Info
Industry
Agriculture
Make
Manitou Group
Model
MTA 6642 E74
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
6601 lb
Height
7 ft 8 in | Max. lifting height: 42 ft
Notes
Max. outreach: 28 ft 3 in | Tilt-up angle: 12 ° | Tilt-down angle: 112 ° | Lifting: 11 s | Lowering: 8 s | Extension: 14 s | Retraction: 12 s | Crowd: 7 s | Dump: 4 s | Number of gears (forward / reverse): 4 / 3 | Max. travel speed: 15 mph | Hydraulic pump type: Gear pump | Hydraulic flow / Pressure: 41 US gpm-3002 PSI | Noise at driving position (LpA): 80 dB | Cab certification: ROPS/FOPS | Controls: Single Joystick FNR
Length
Overall length to carriage: 19 ft 1 in | Forks: 47 in
Width
8 ft 2 in | Overall cab width: 33 in | Forks: 5 in
Wheelbase
9 ft 11 in
Ground Clearance
16 in
Turning Radius
External turning radius: 13 ft 9 in
Weight
Unladen weight (with forks): 22002 lb
Tires
Inflatable | 13 x 24
Engine
Deutz | Stage IV, Tier 4 final
Cylinders
4 - 0.23 in³
Power/Horsepower
74 Hp / 55 kW
Torque
288 ft/lbs @ 1300 rpm
Transmission
Torque converter with powershift gearbox
Brakes
Parking brake: Hydraulic spring release SAHR | Service brake: Wet disc brakes
Oil Capacity
4 US gal | Hydraulic oil: 45 US gal
Fuel Capacity
47 US ga
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
