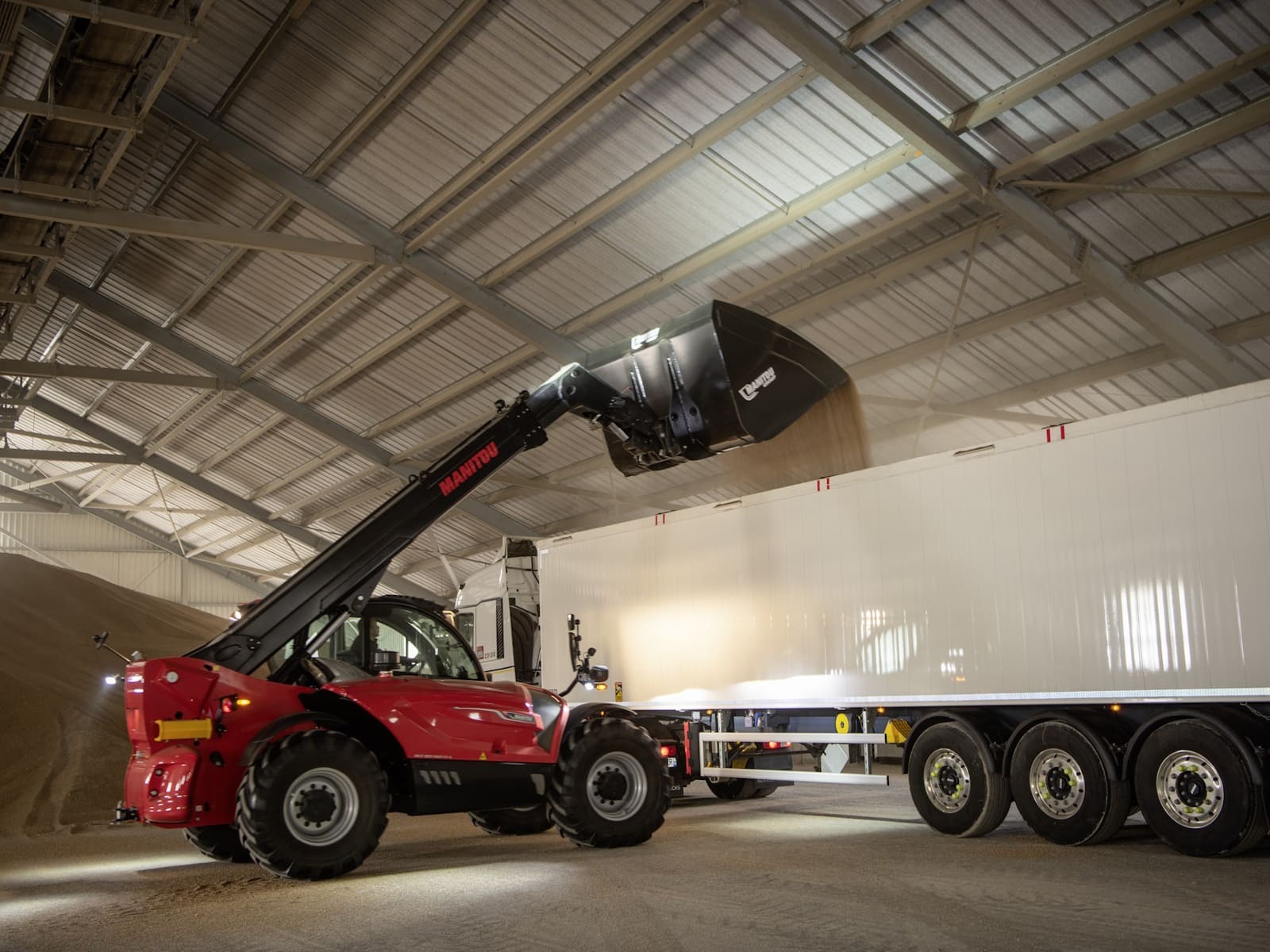

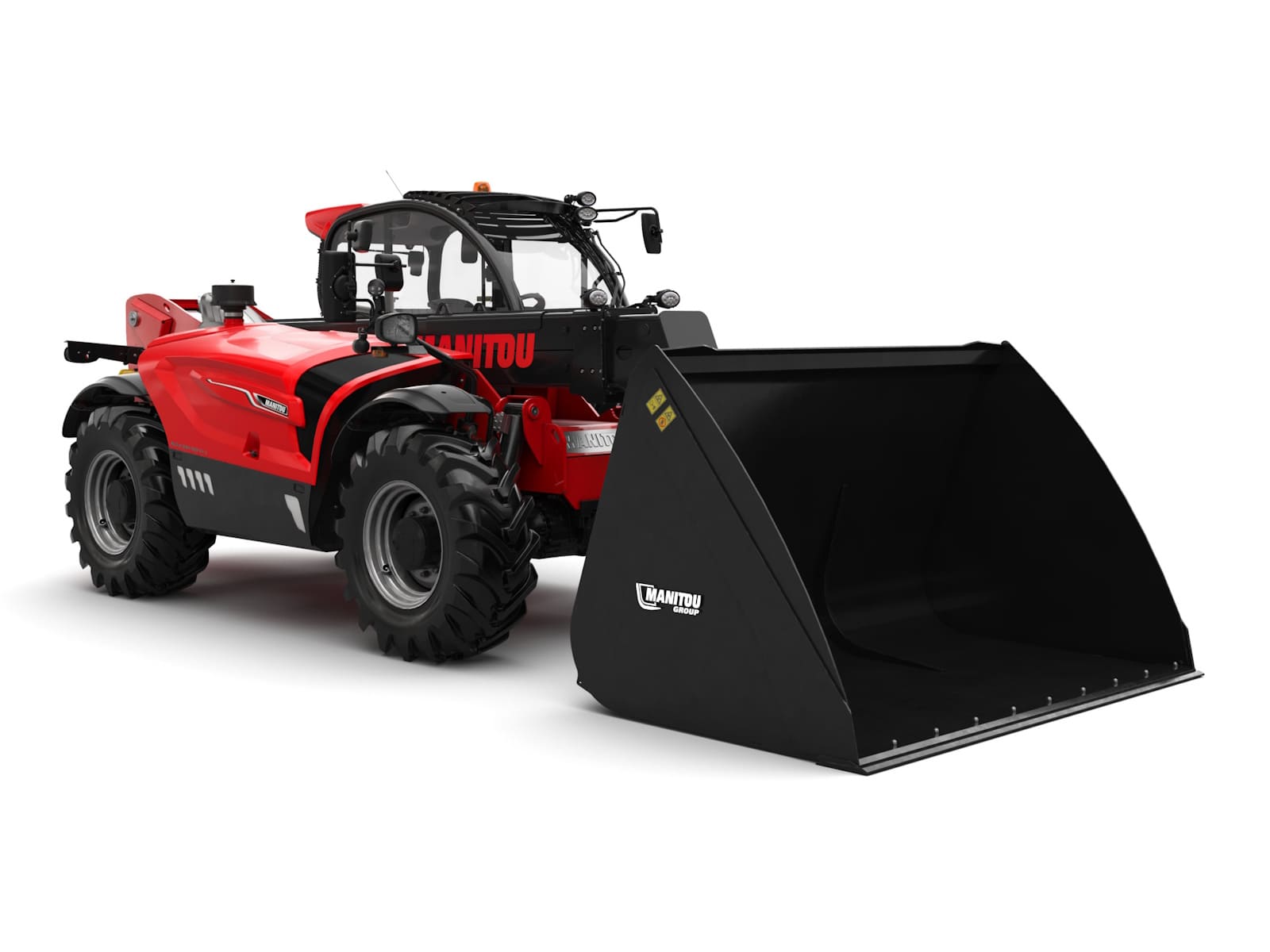

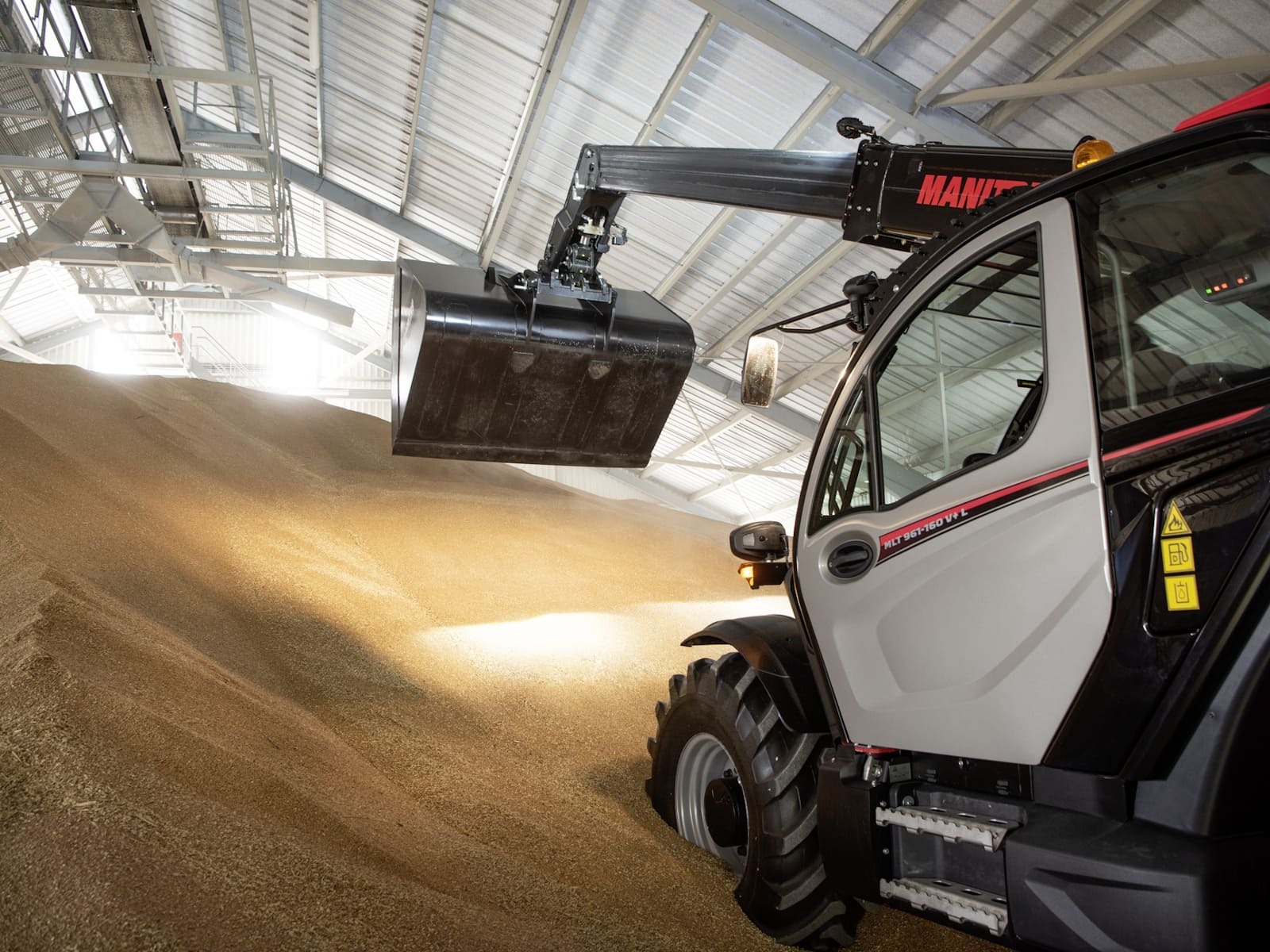

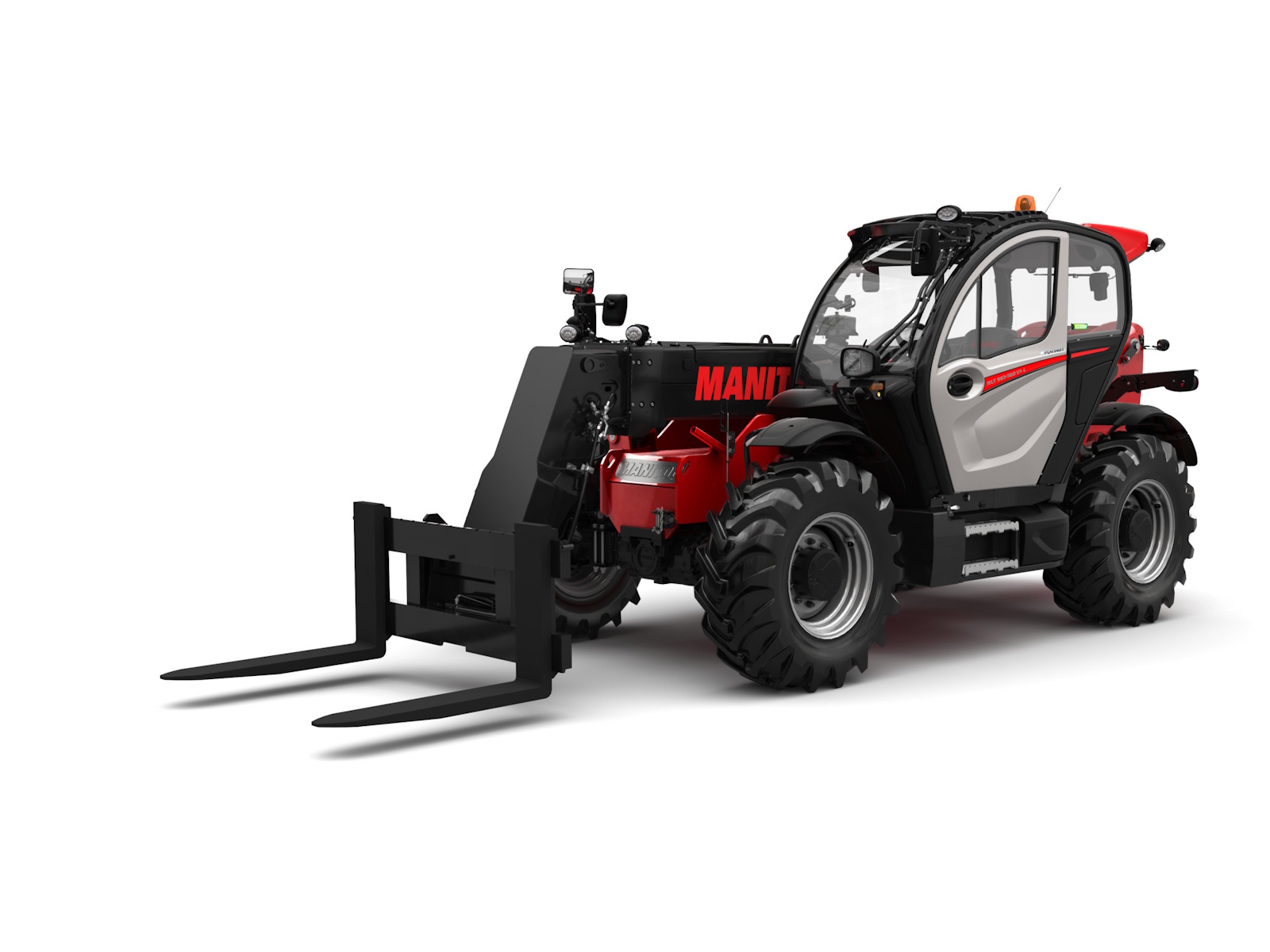

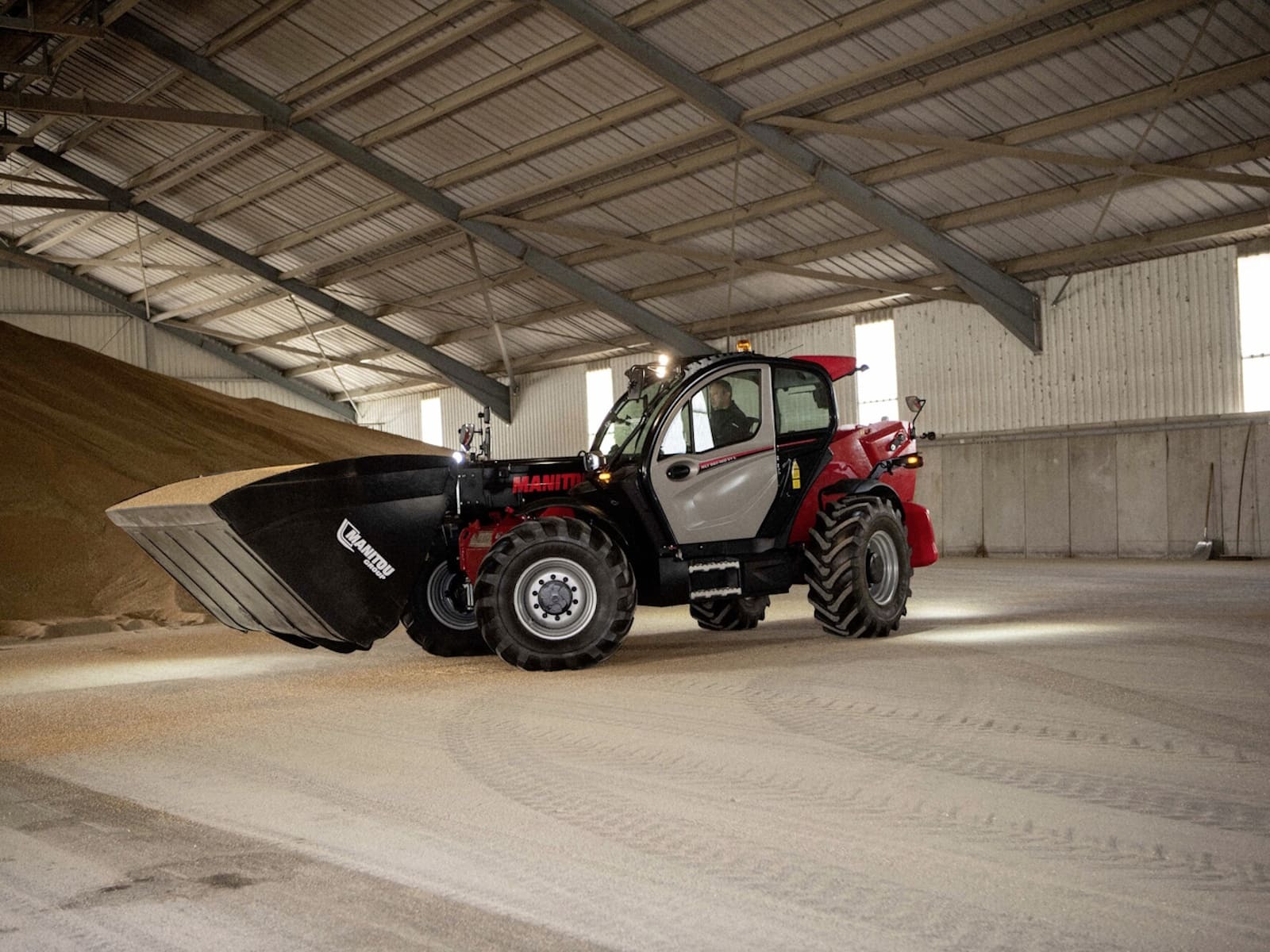

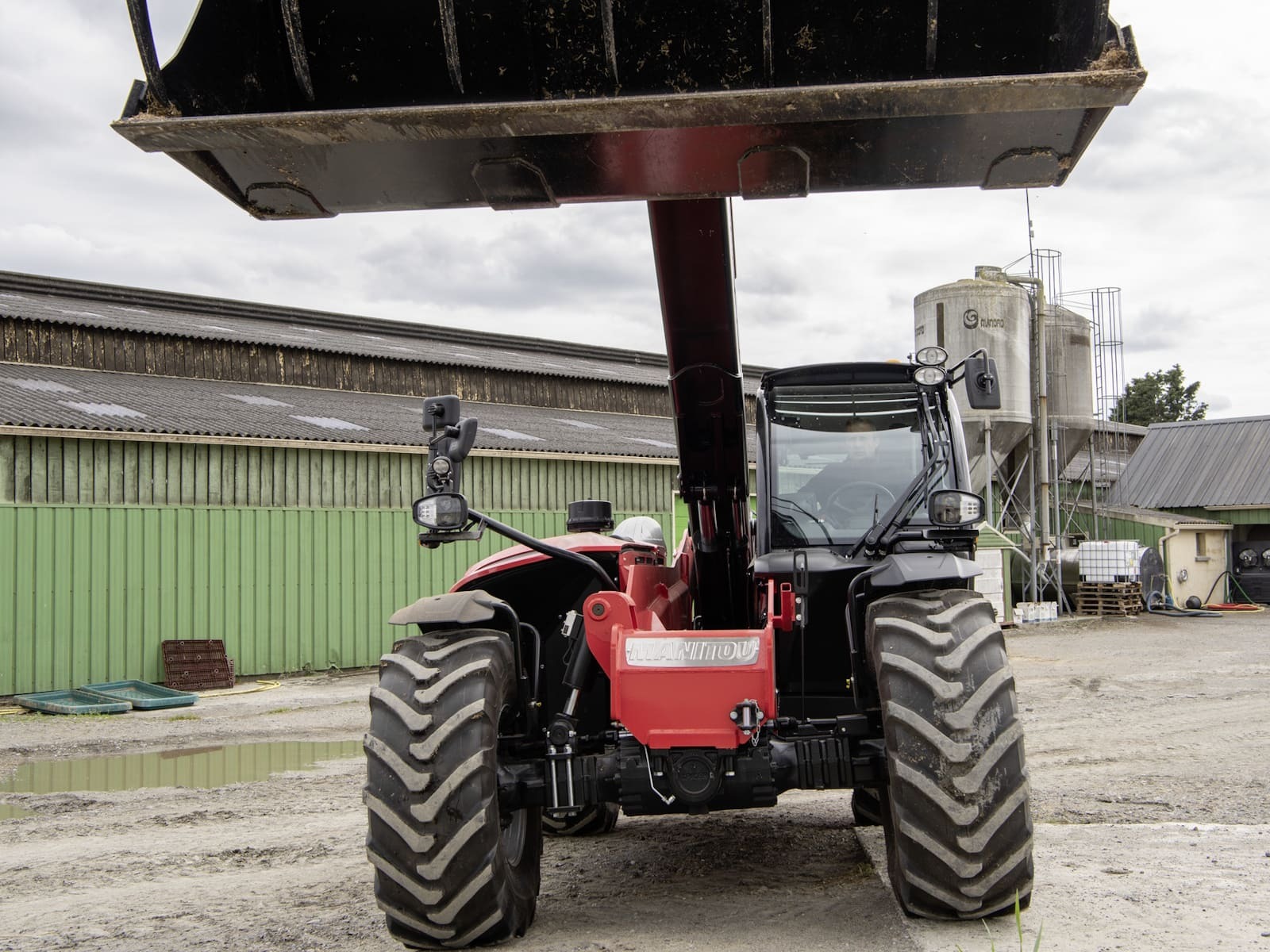

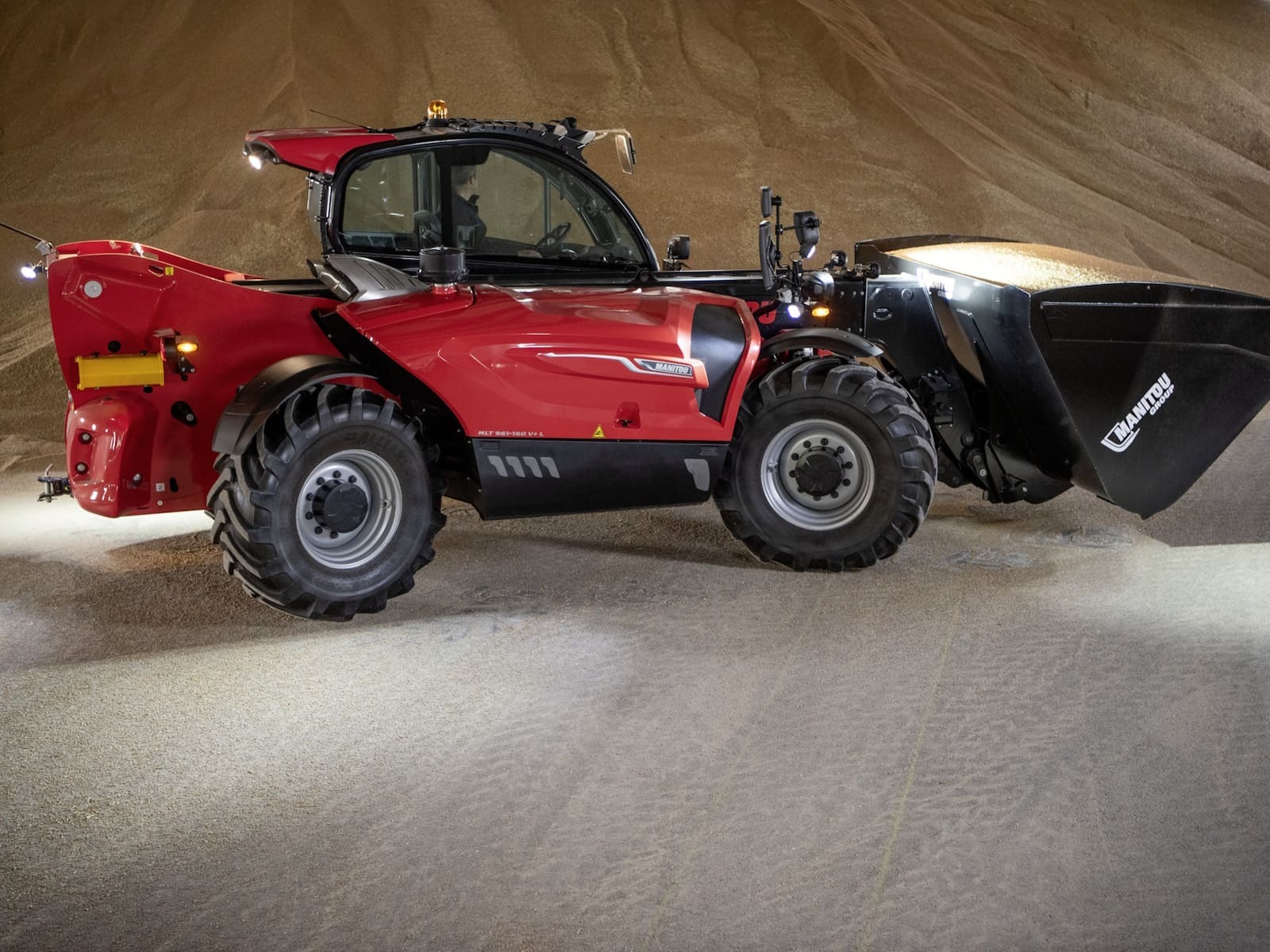

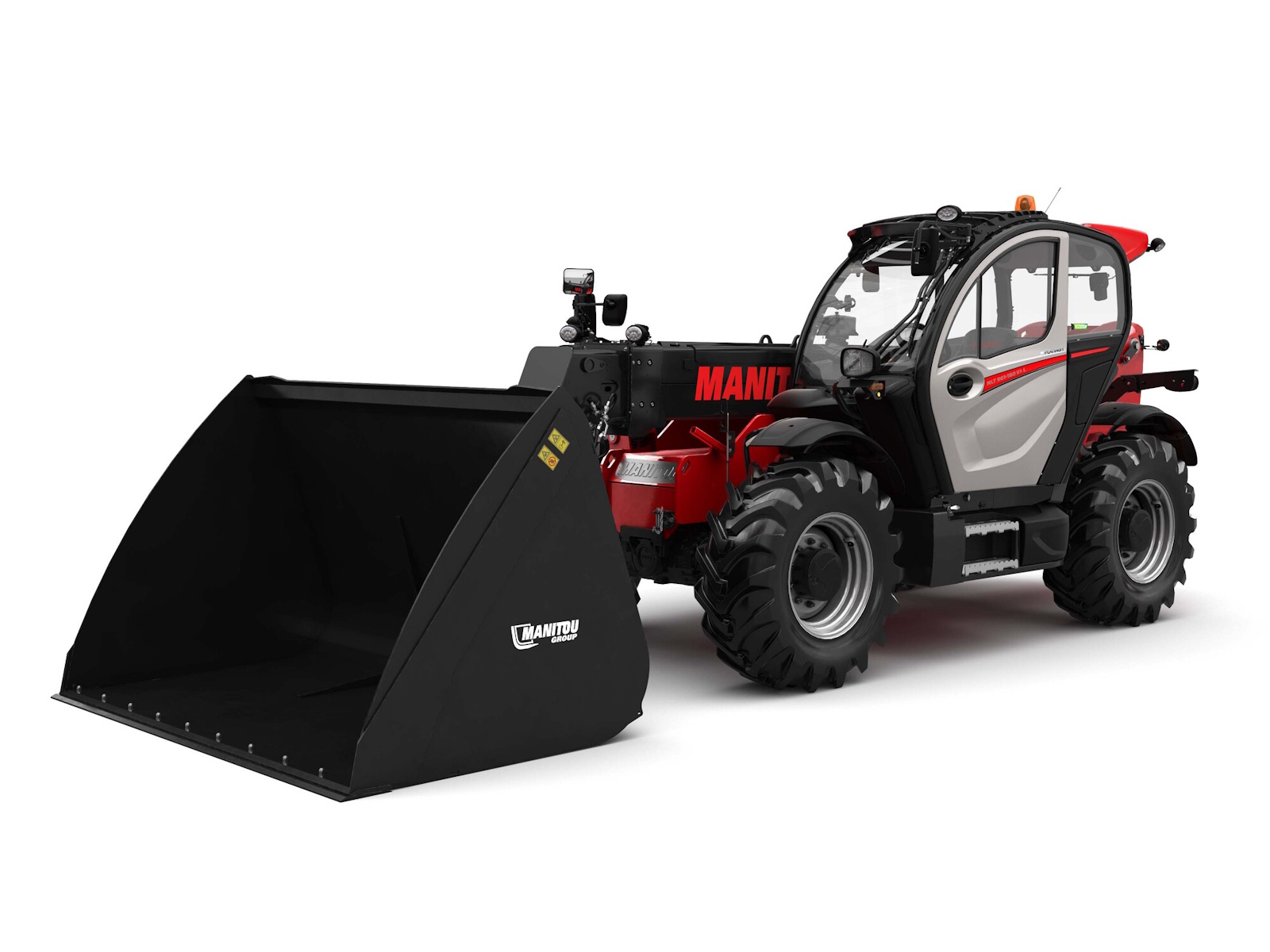

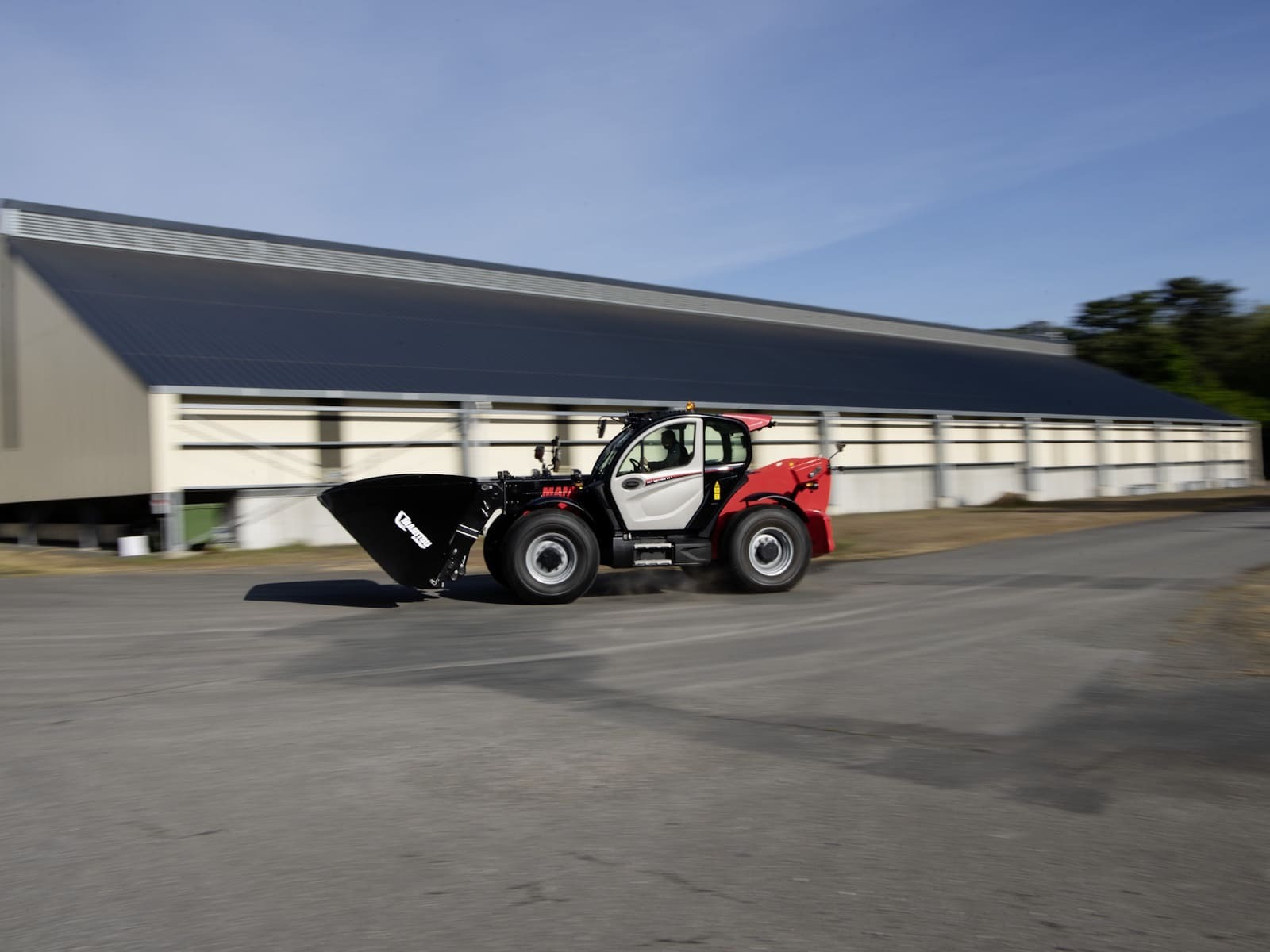

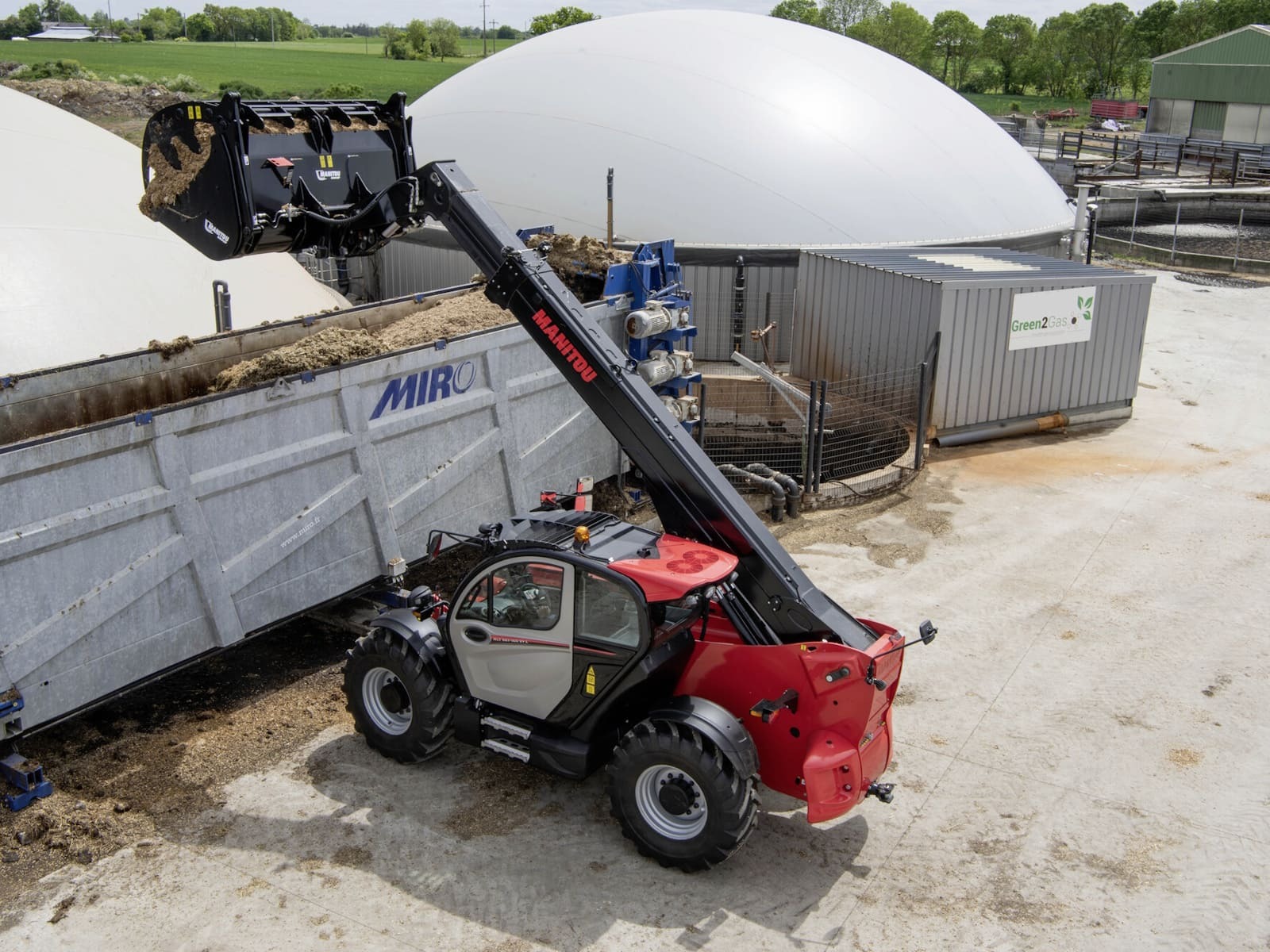

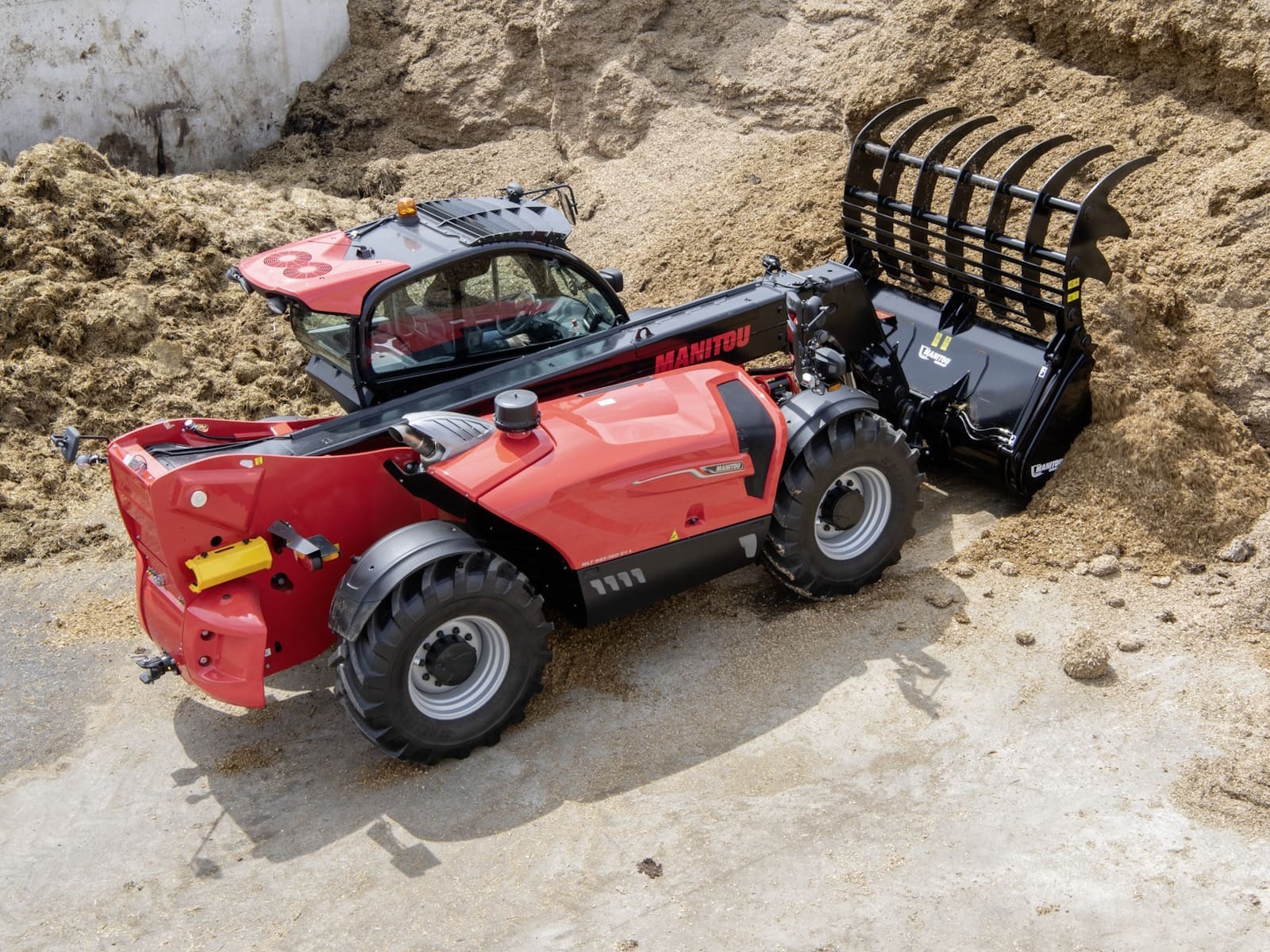

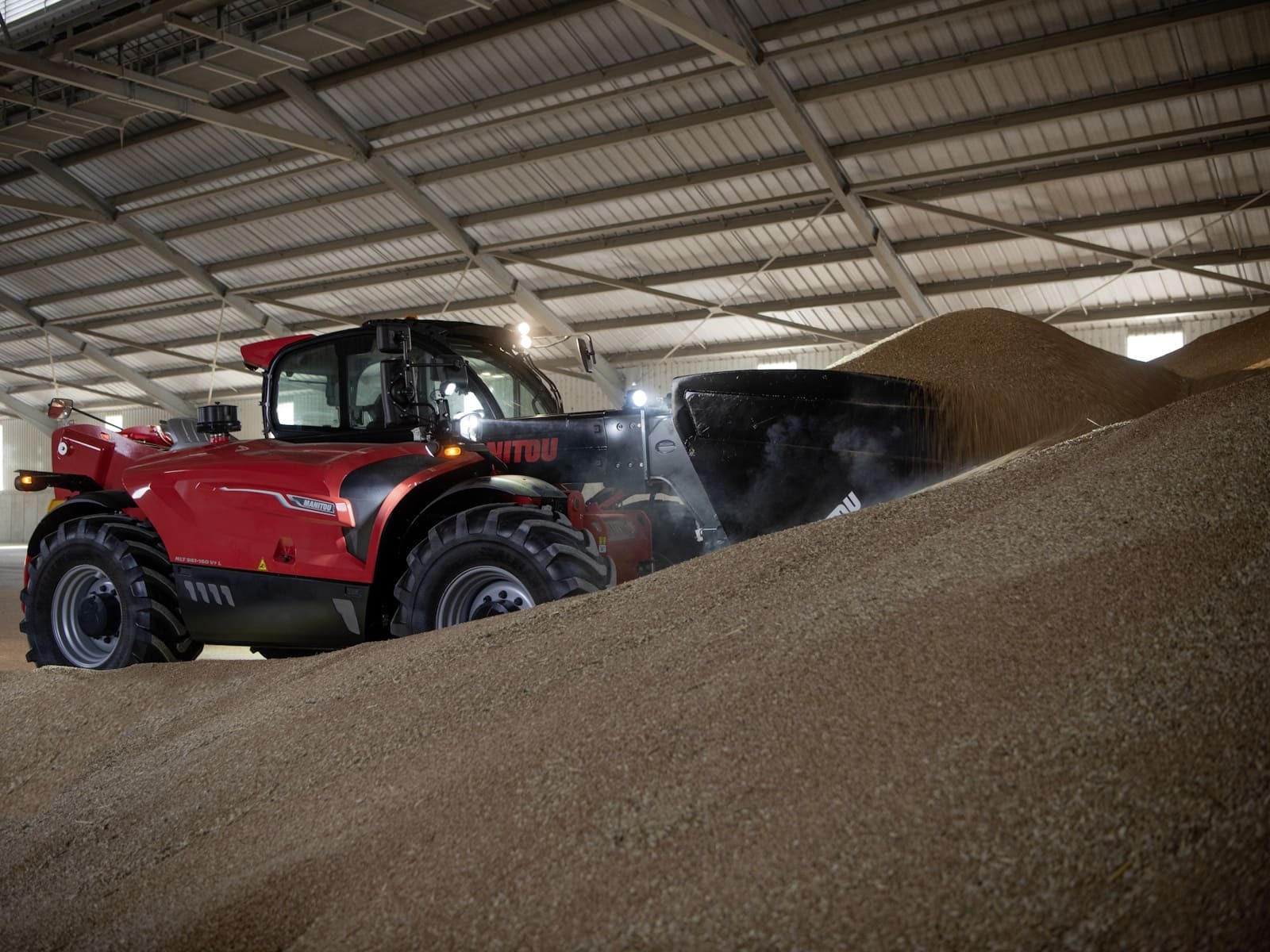

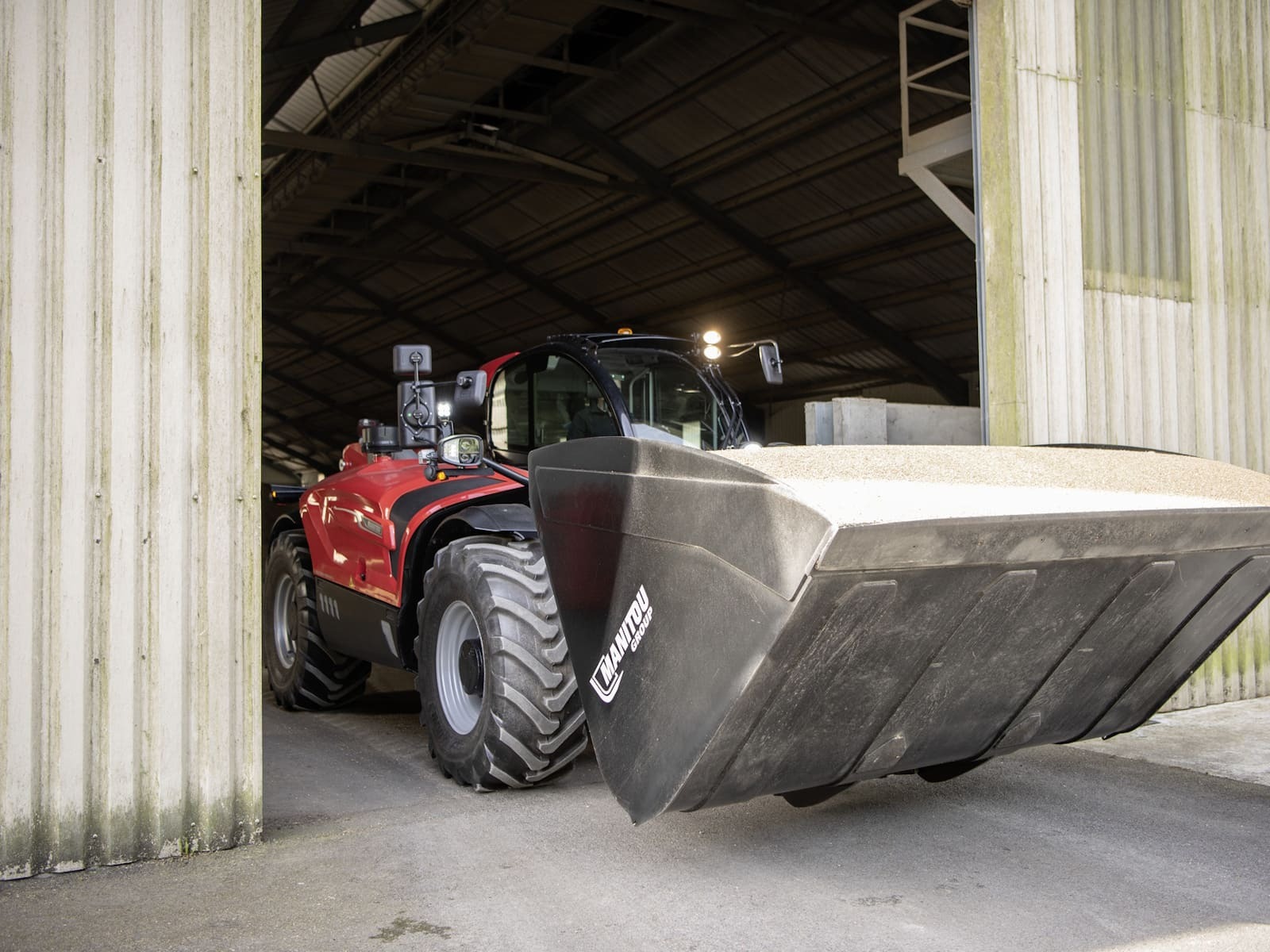

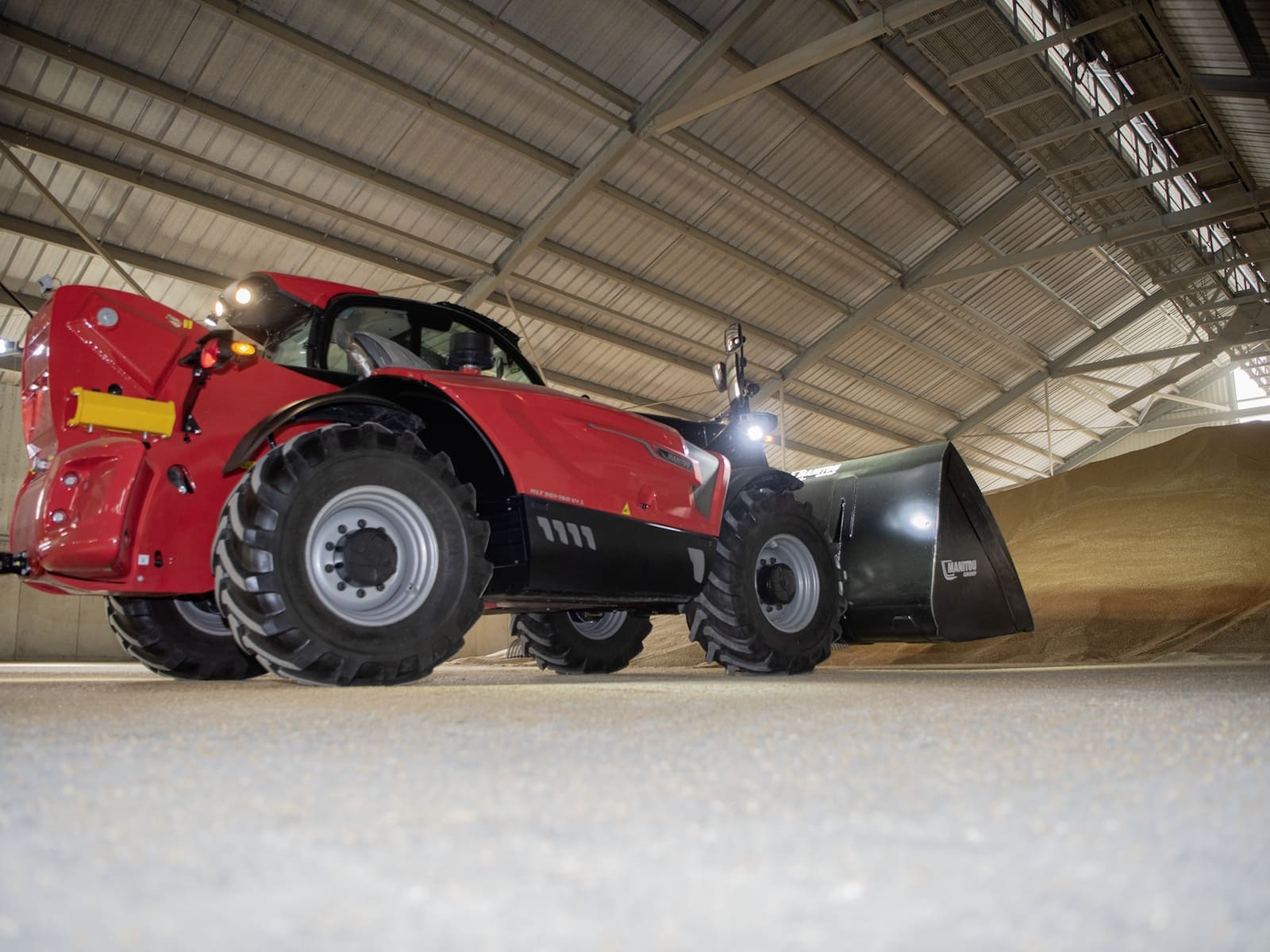

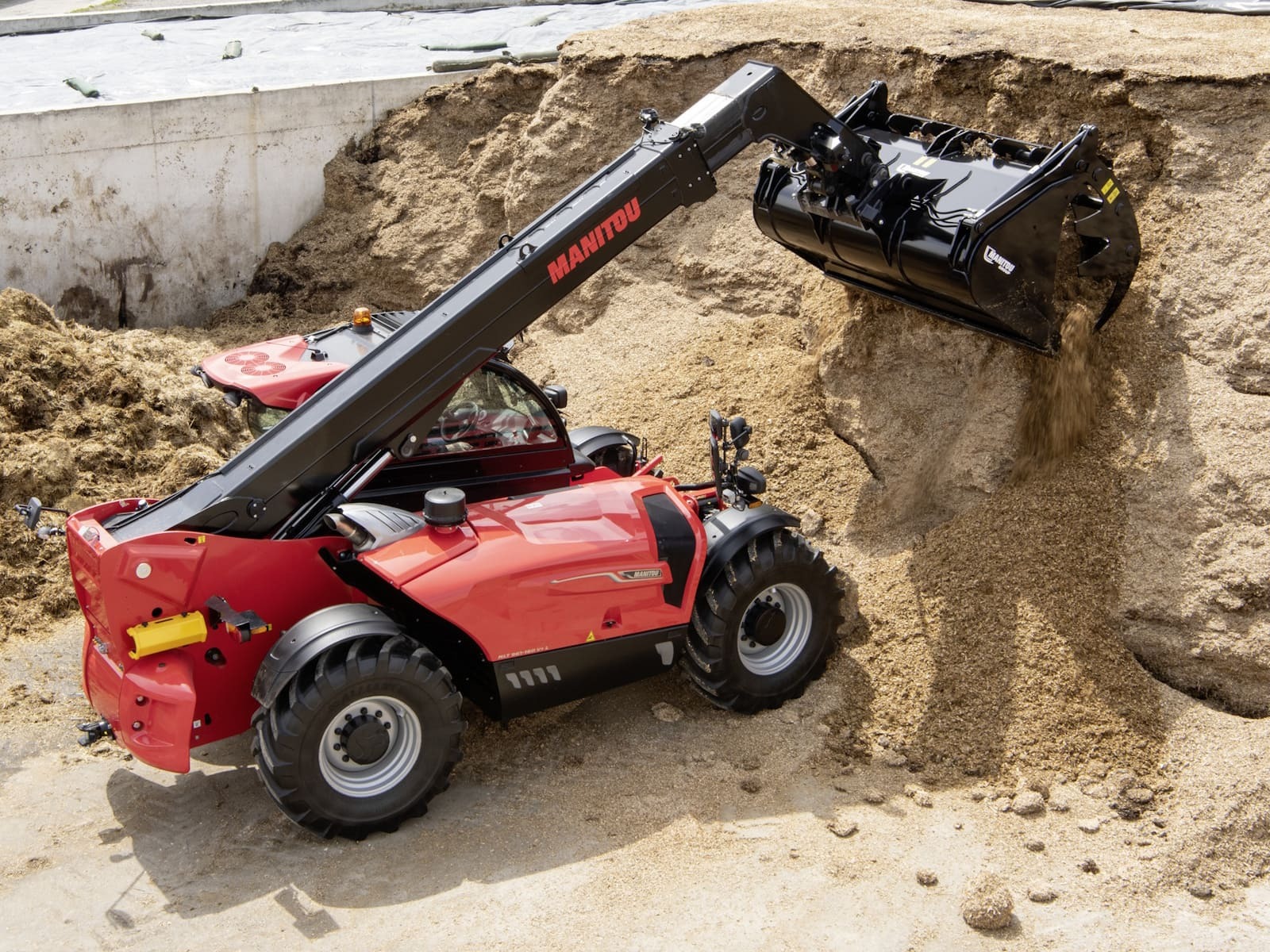

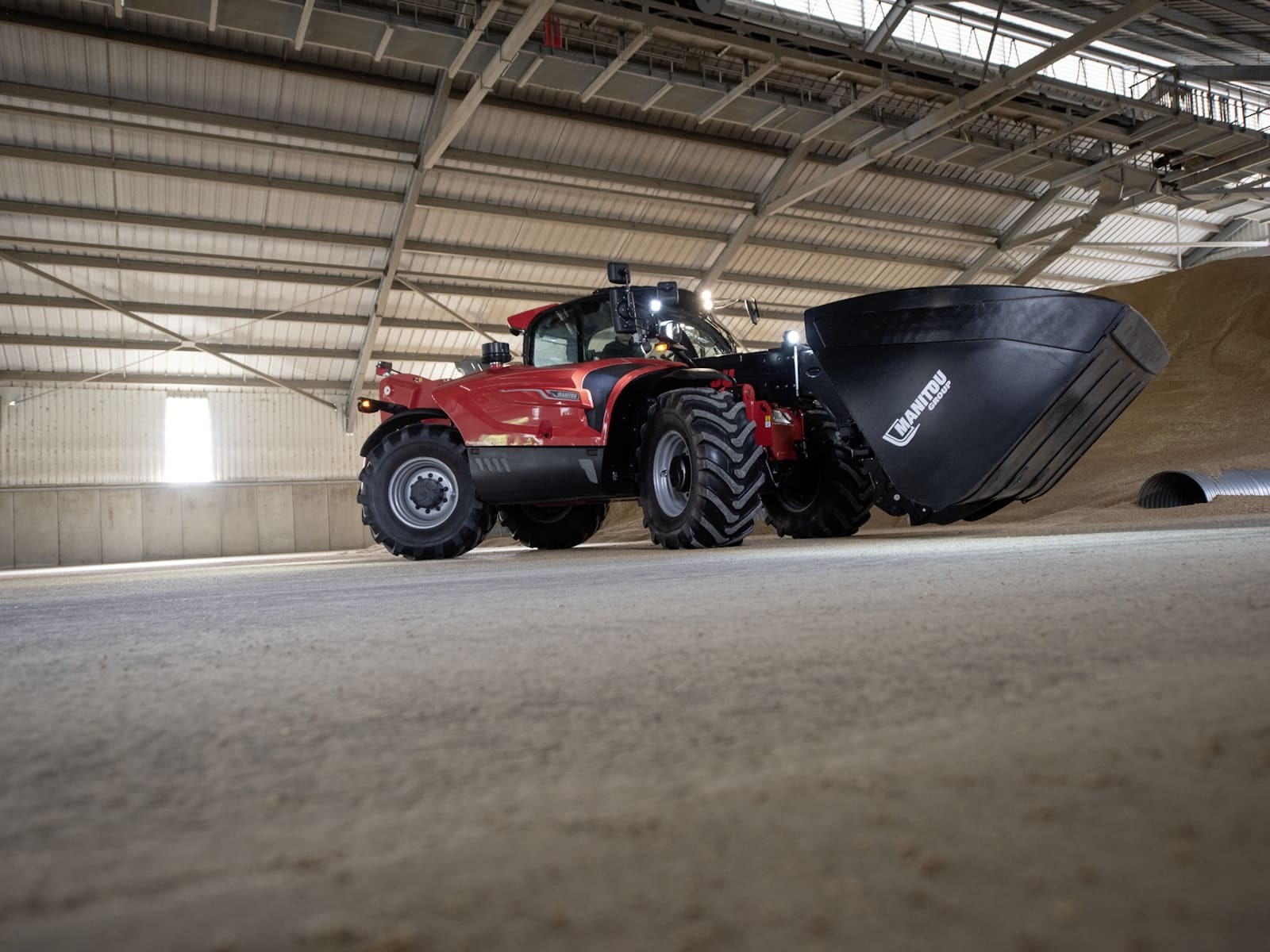

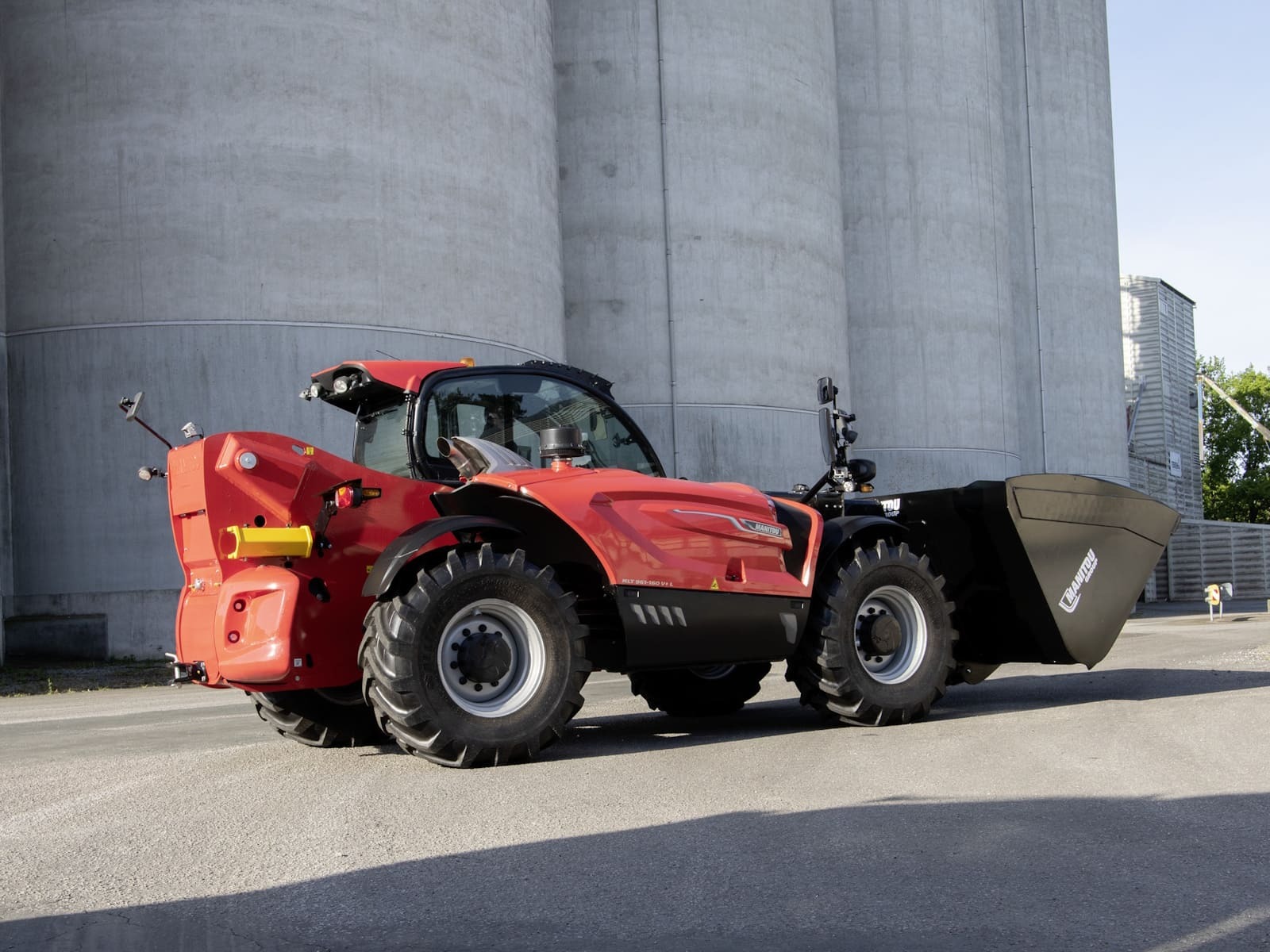

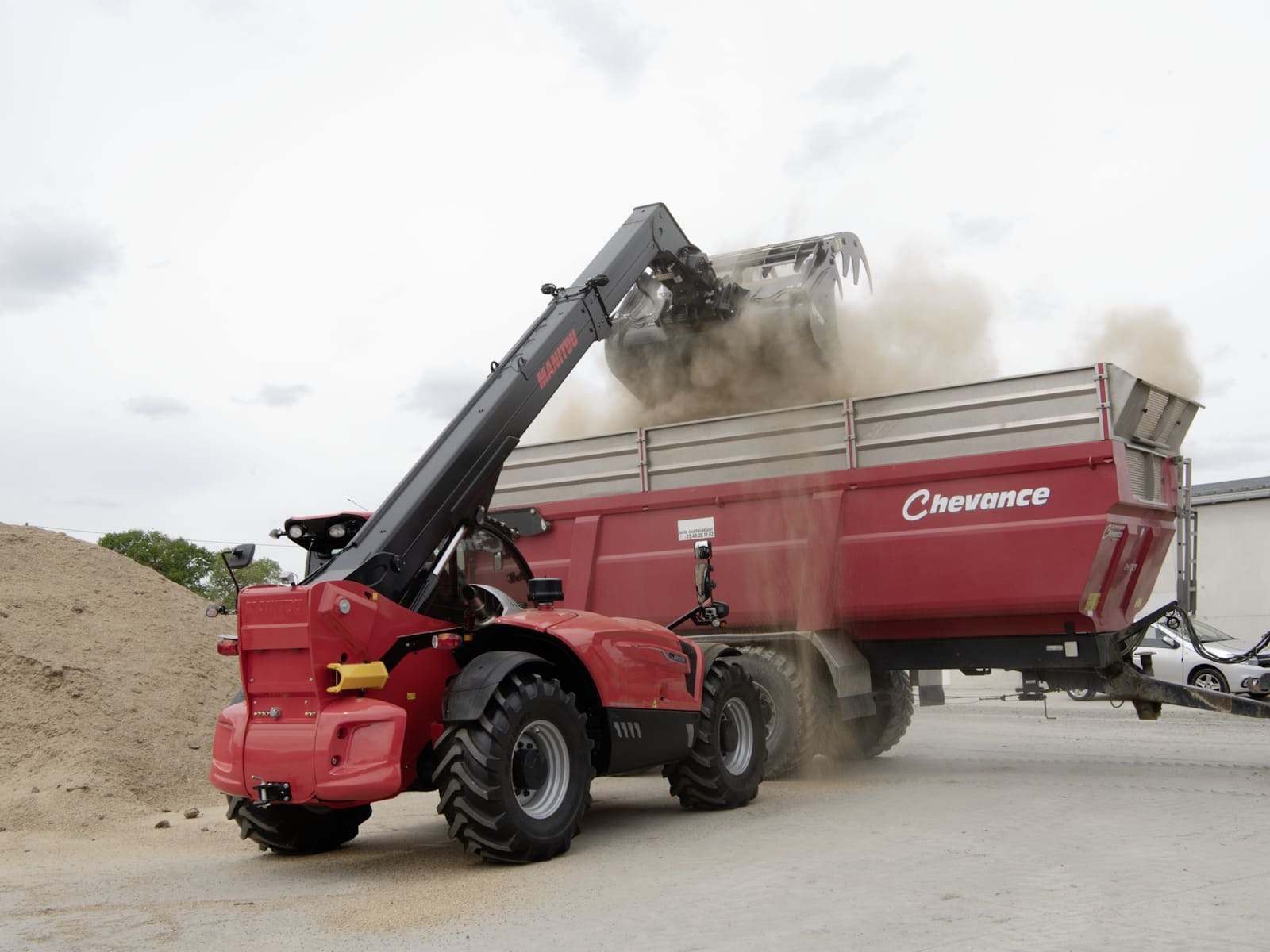

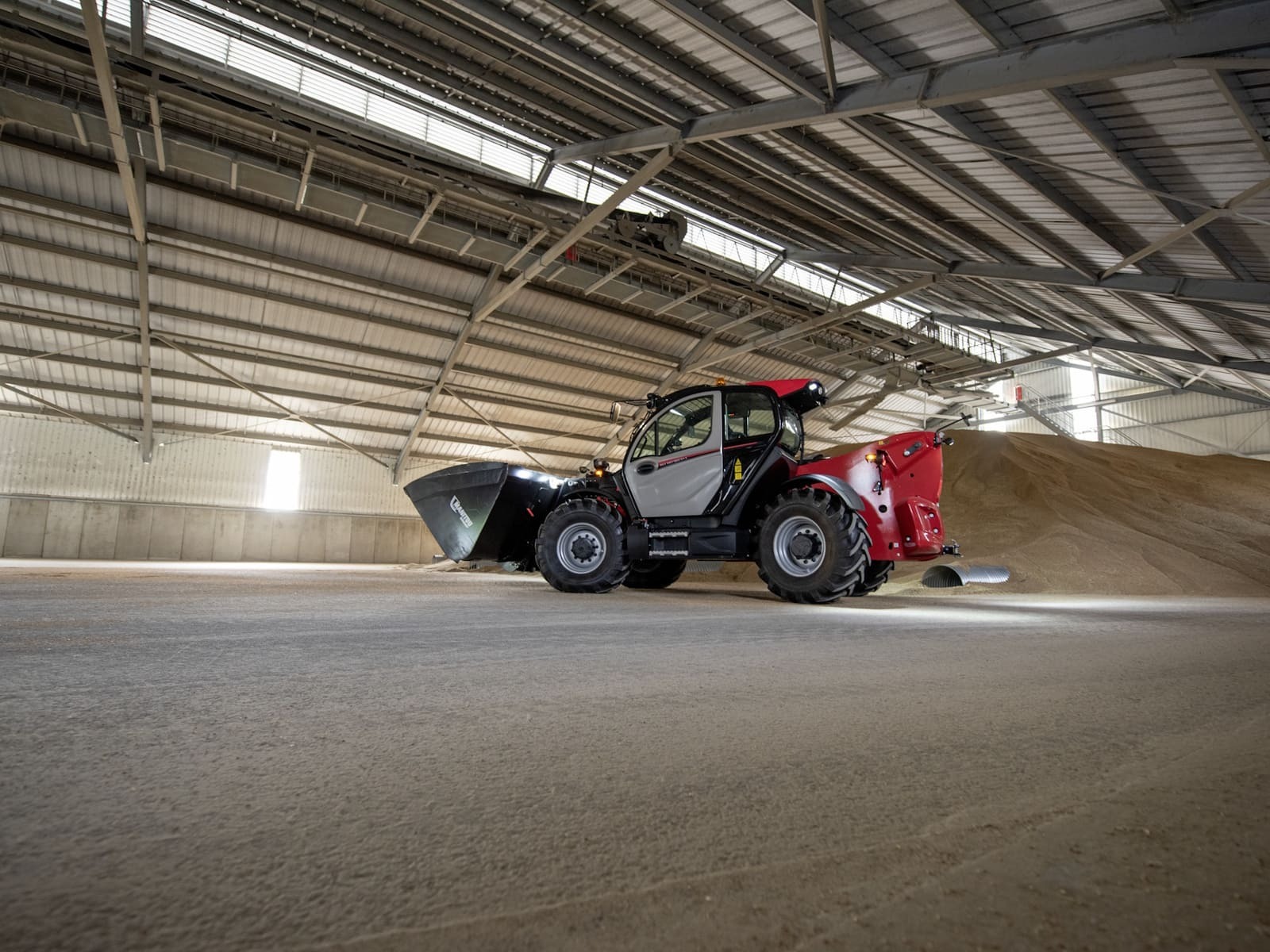

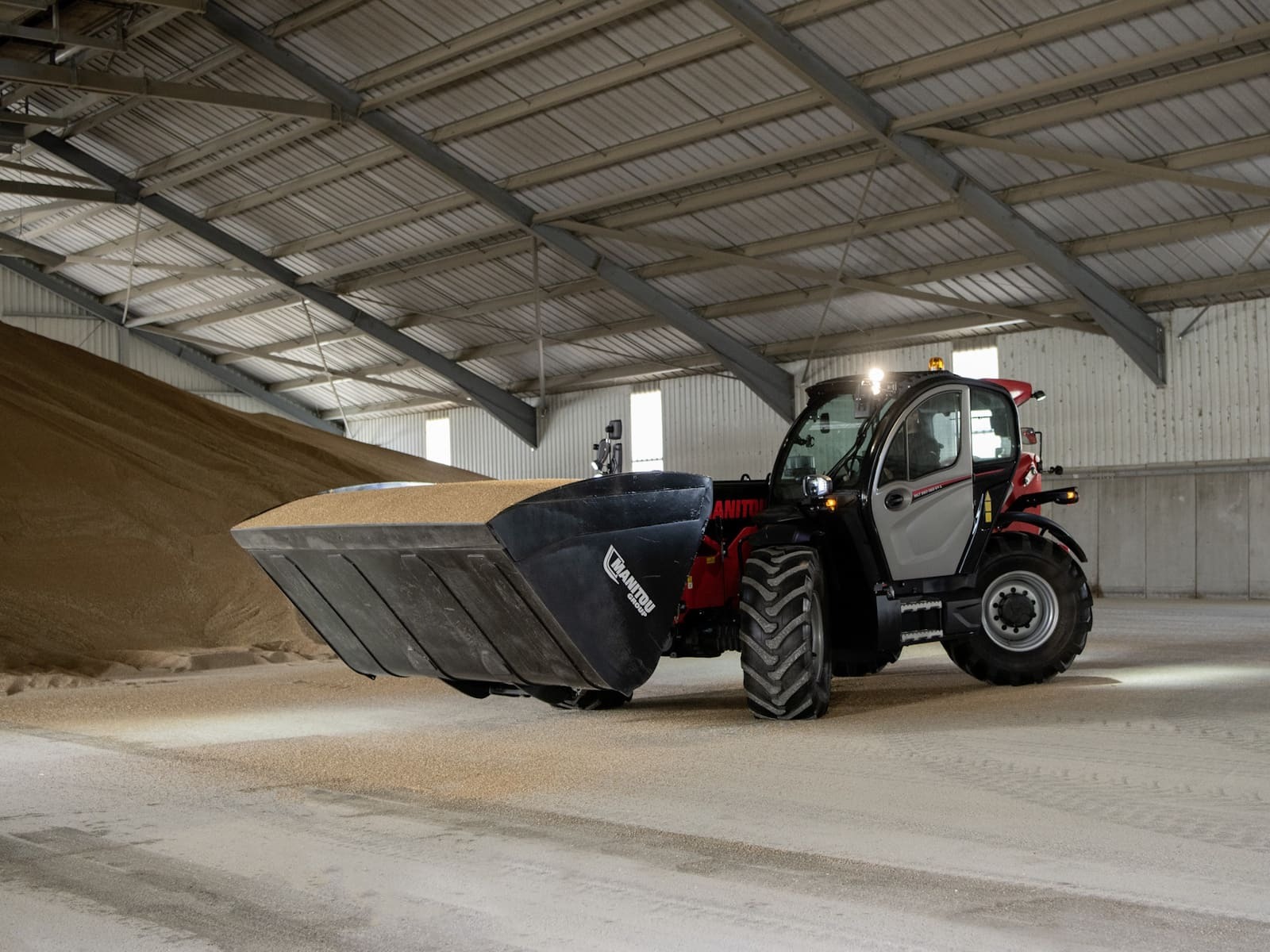

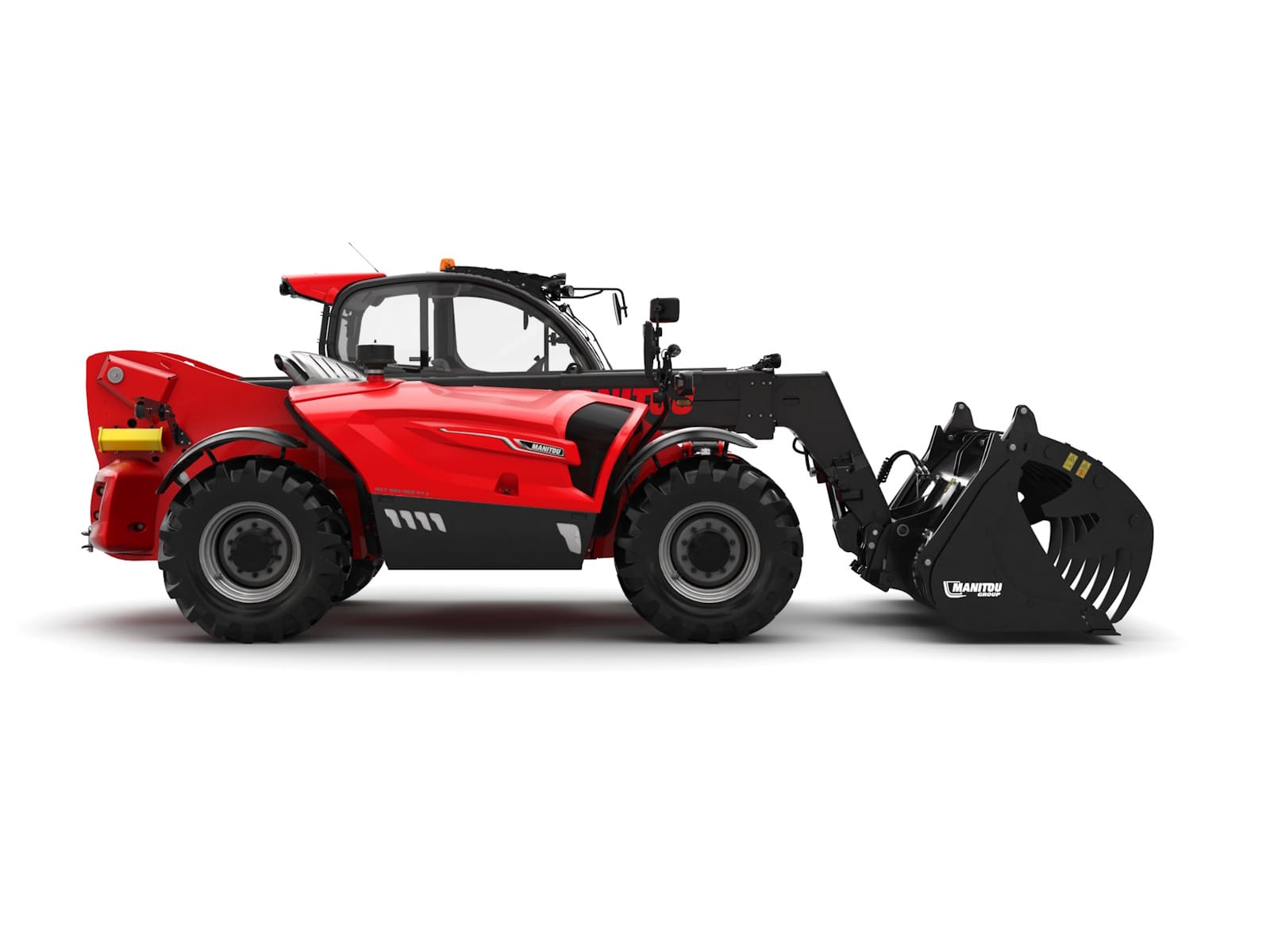

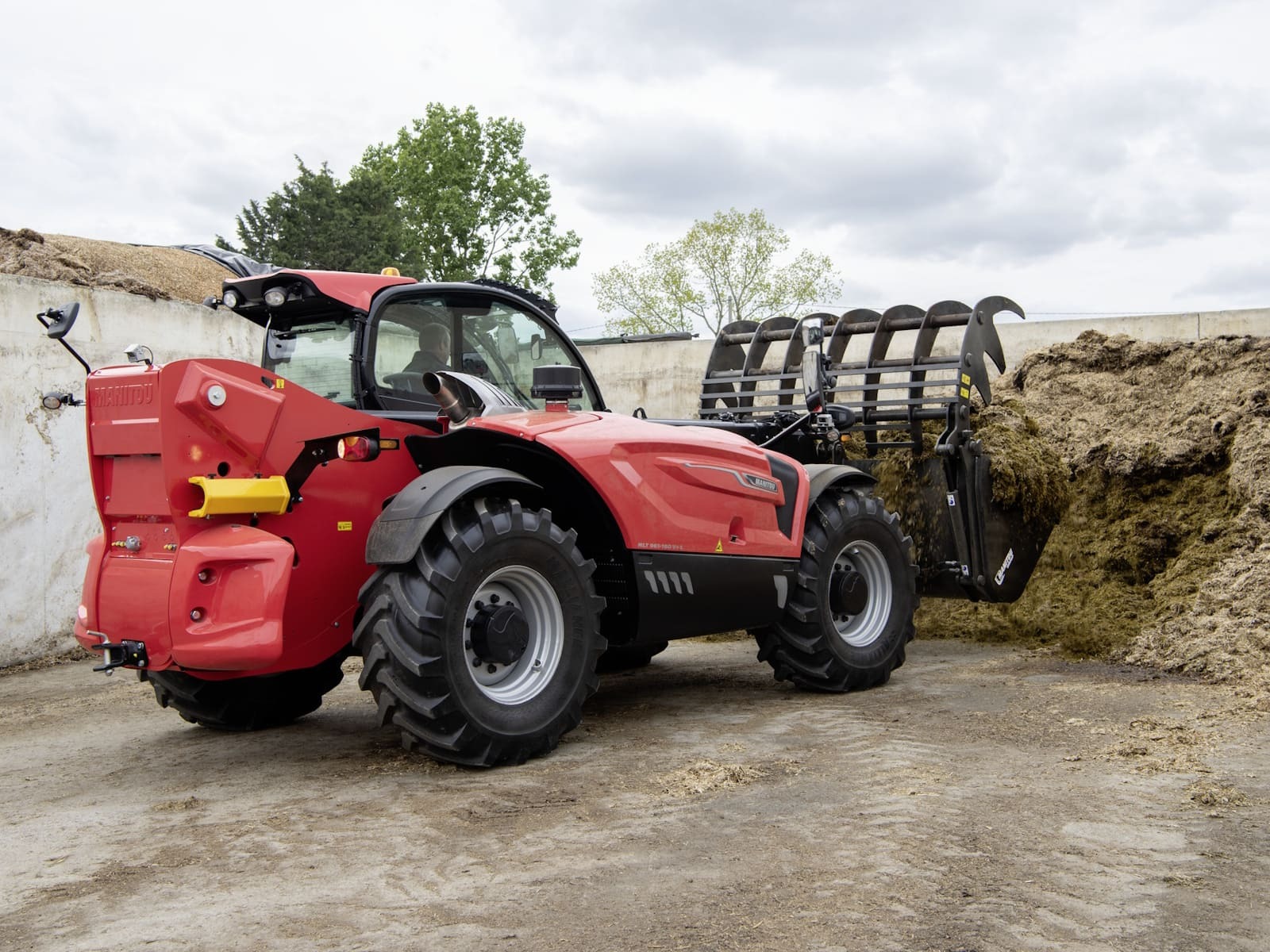

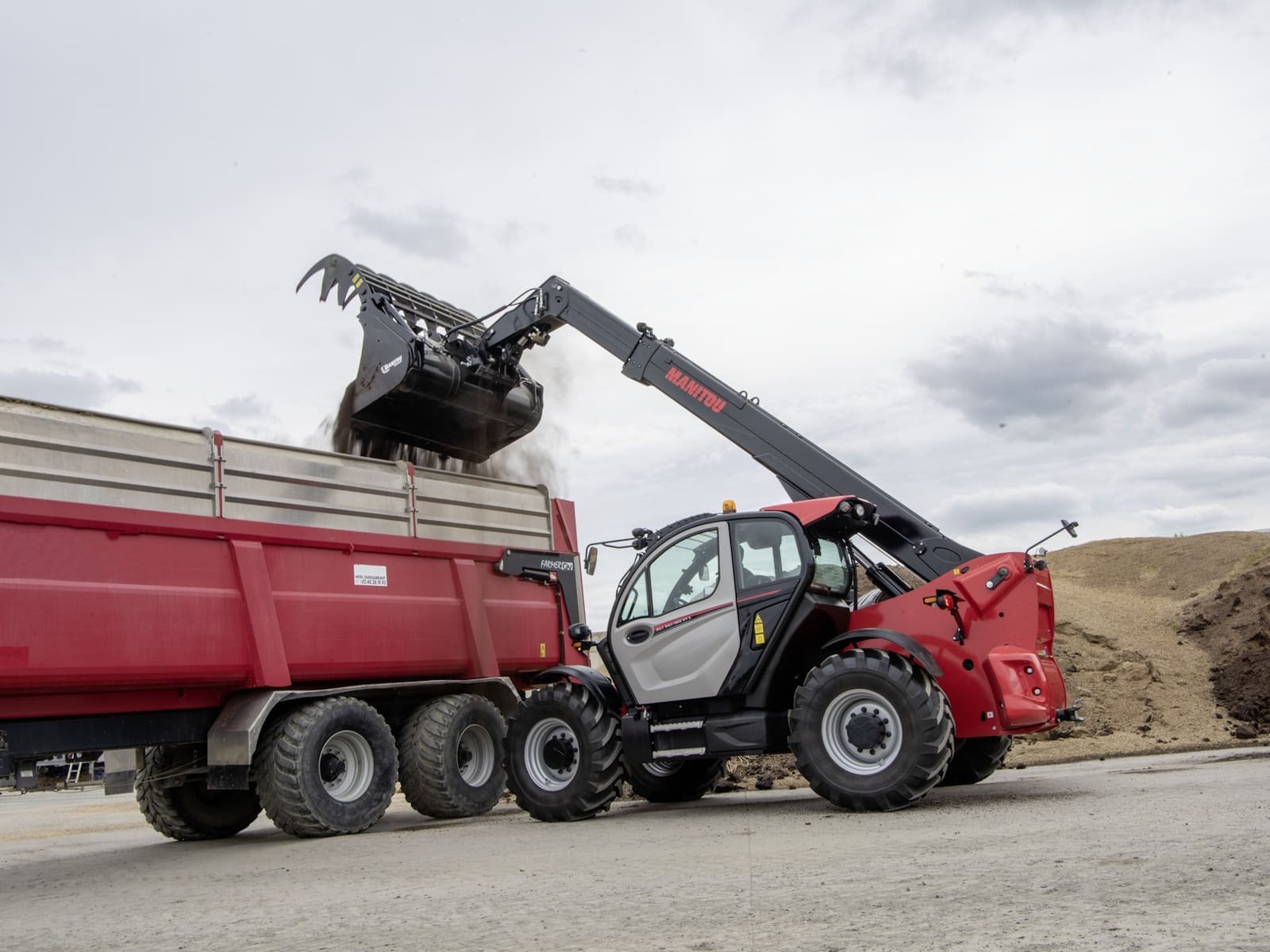

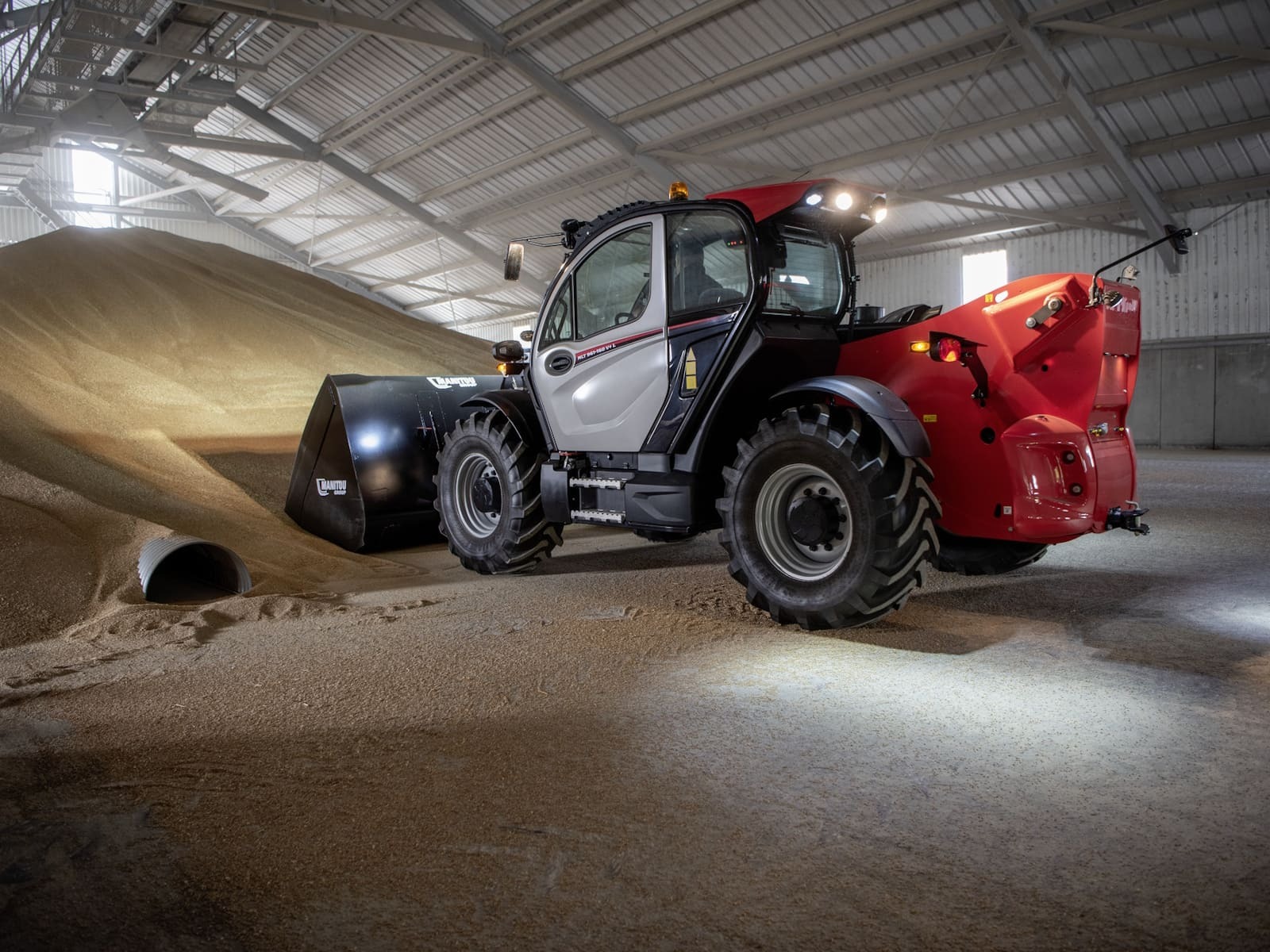

2026 Manitou Group MLT 961-160 V+ L

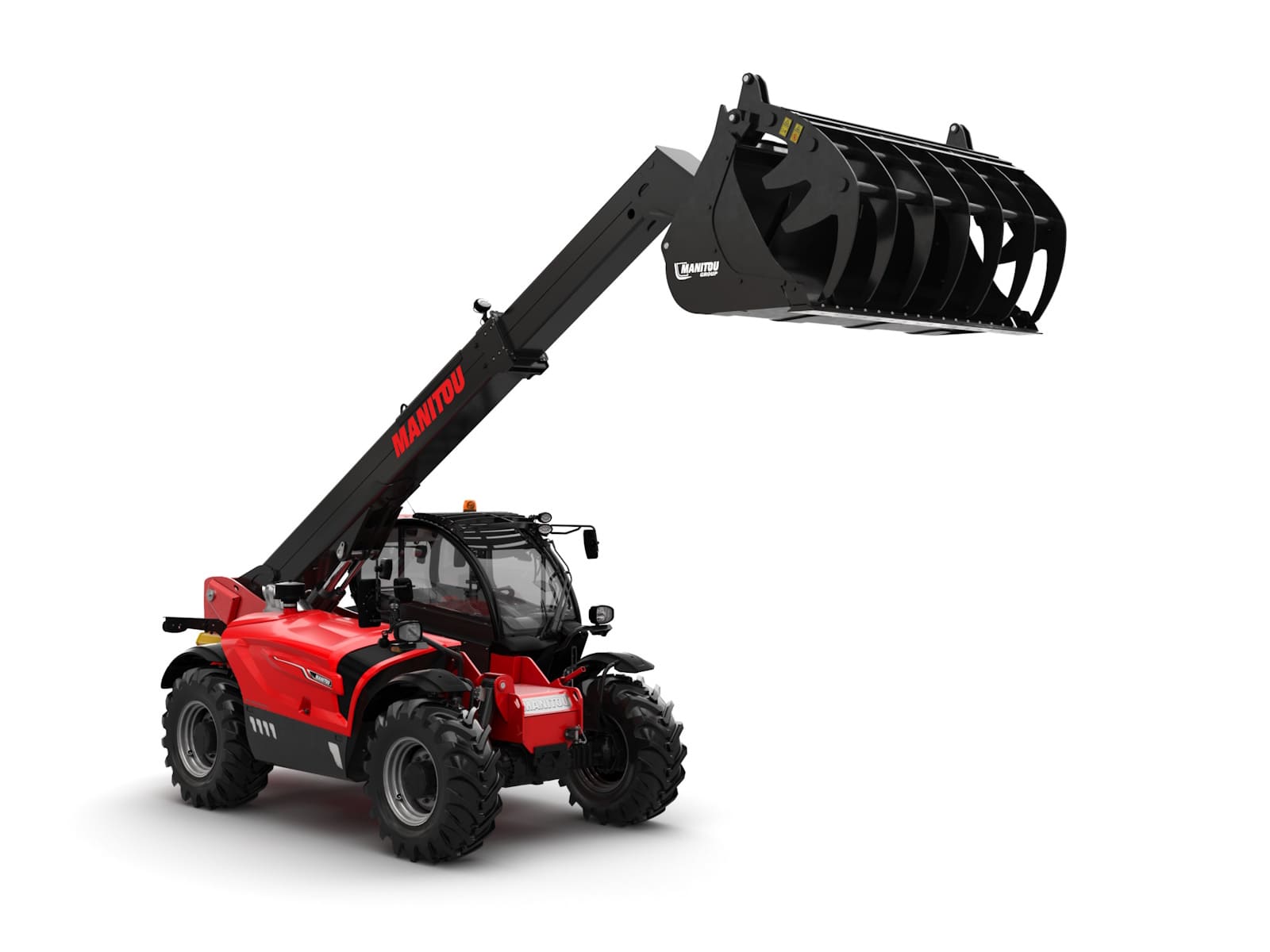

The MLT 961-160 V+ L has a 9 m lifting height, a 6 t max. capacity and a M-Vario Plus transmission. It offers even more comfort, performance and cost efficiency.

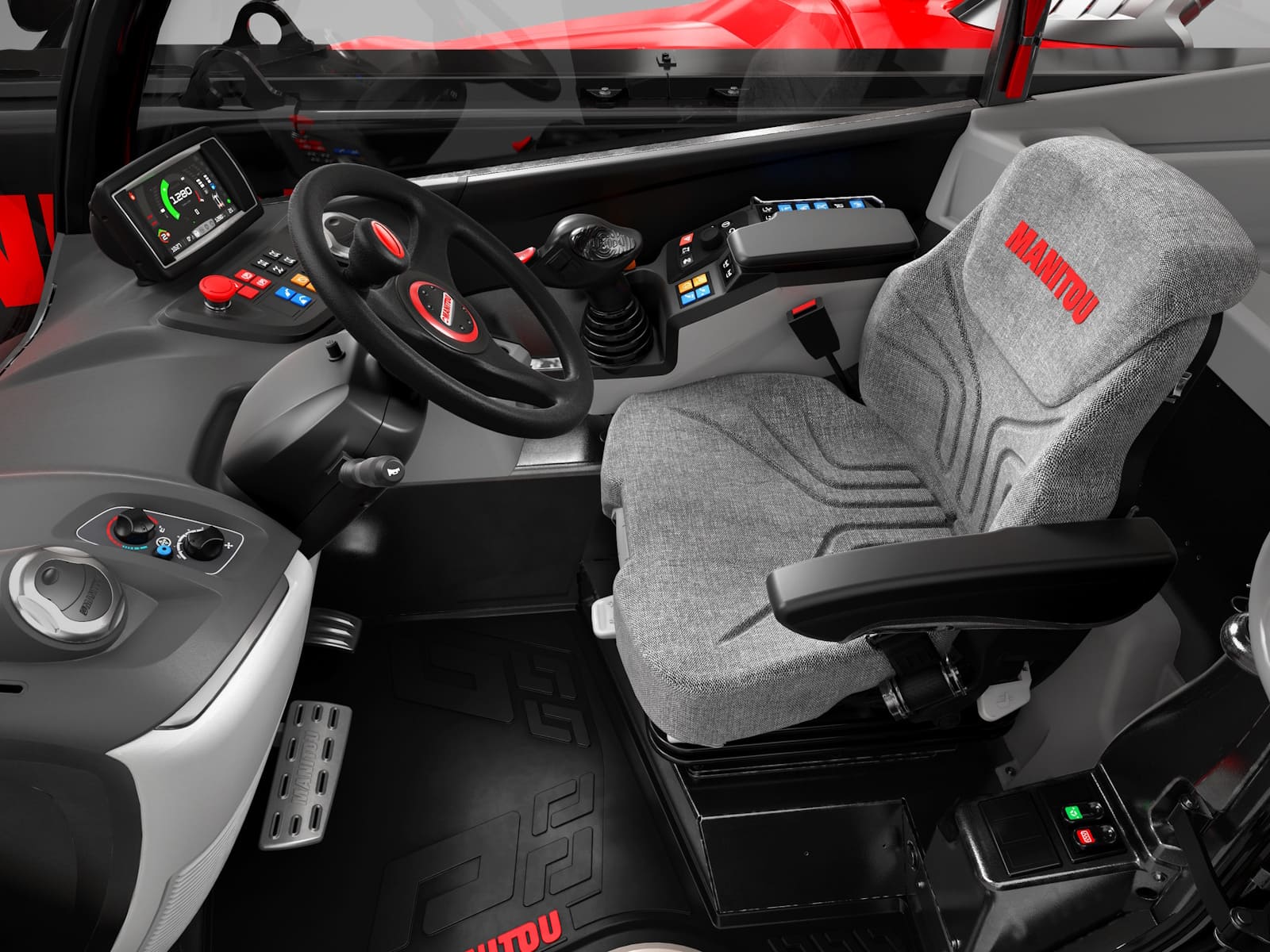

For your comfort, the machine is equipped as standard with a ultra-quiet NewAg XL cab, an "easy step" access, a high visibility grid, an automatic parking brake, a cup holder, a full range of storages, optional adaptive air suspension seat...

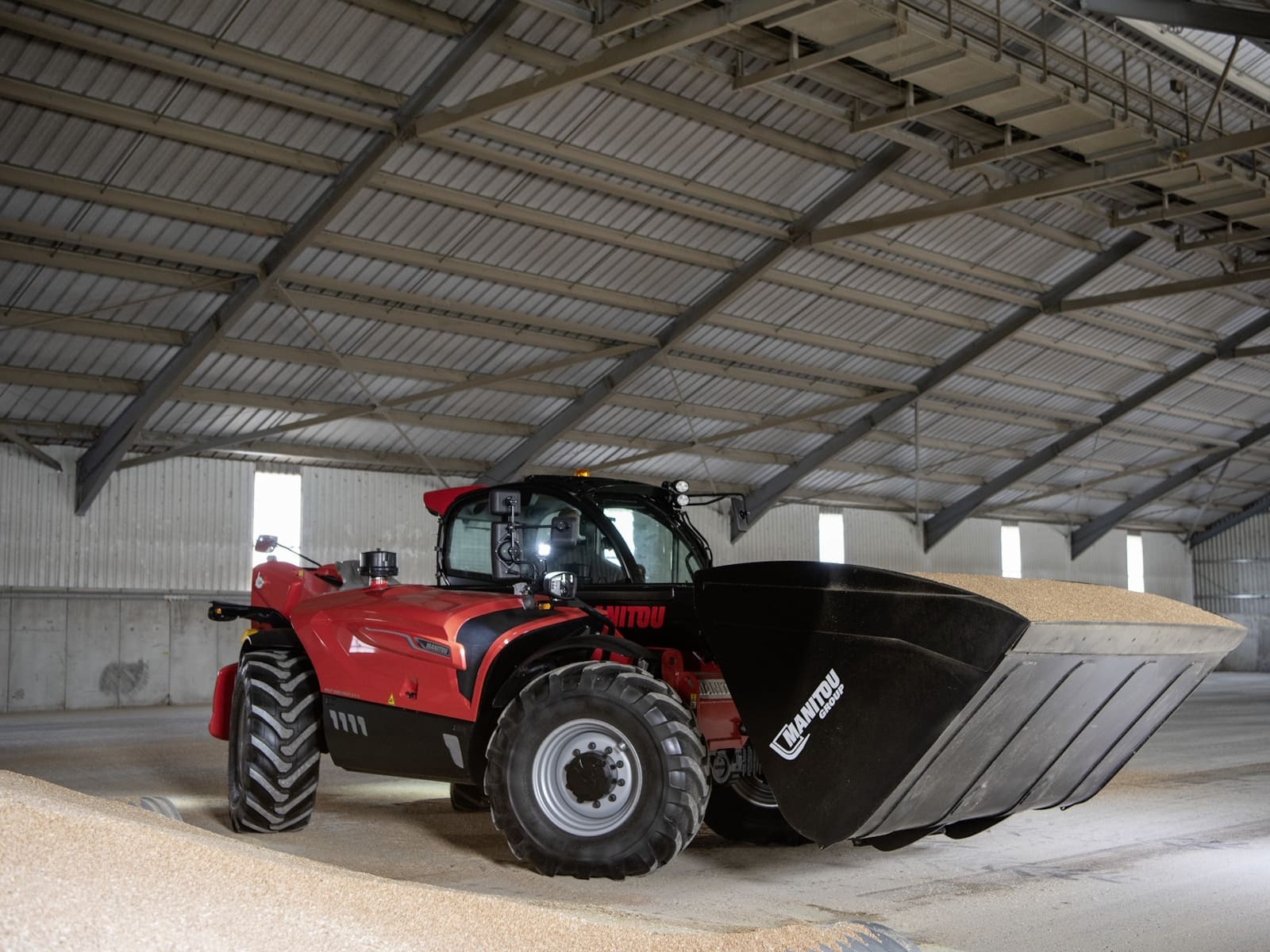

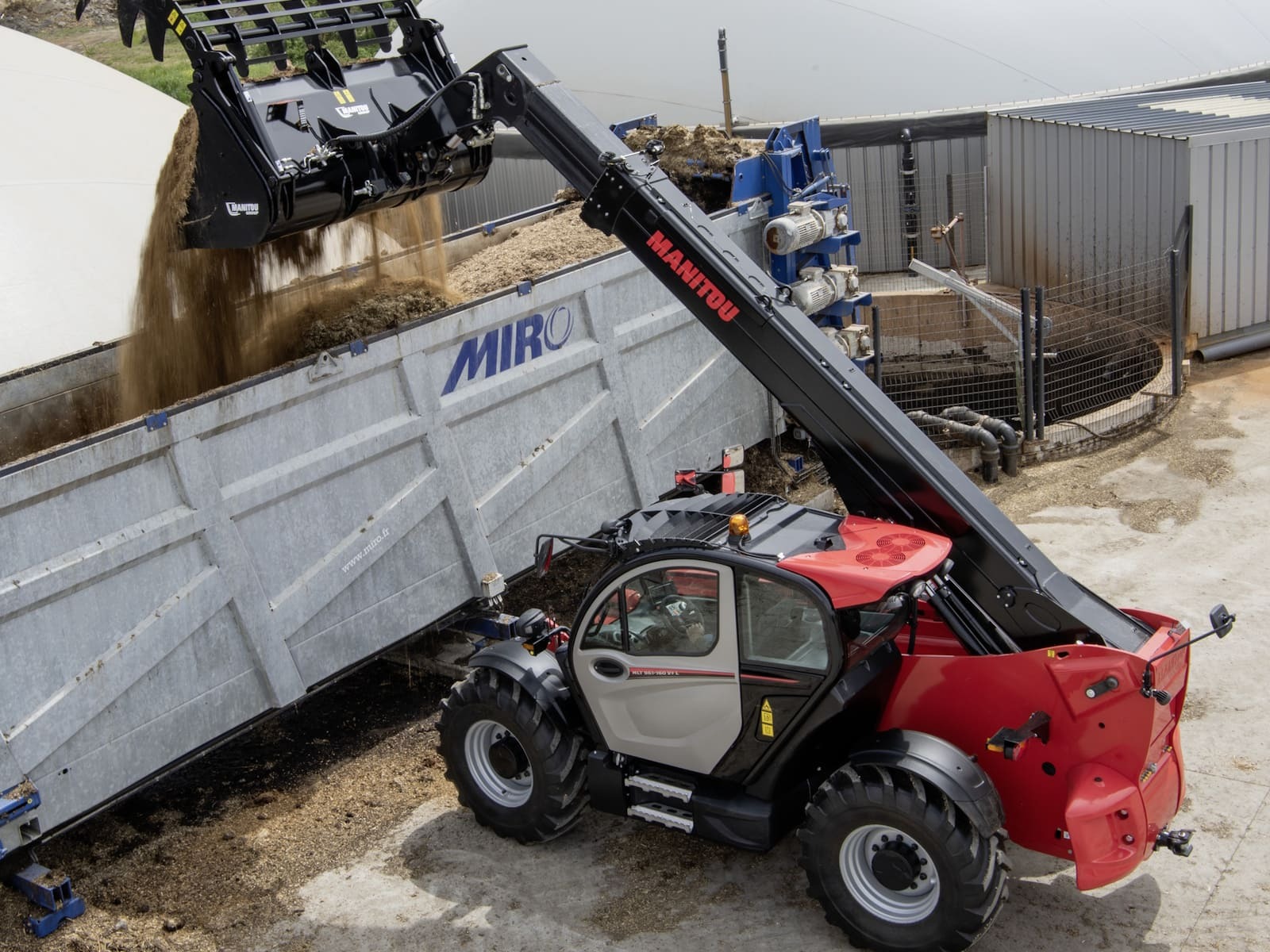

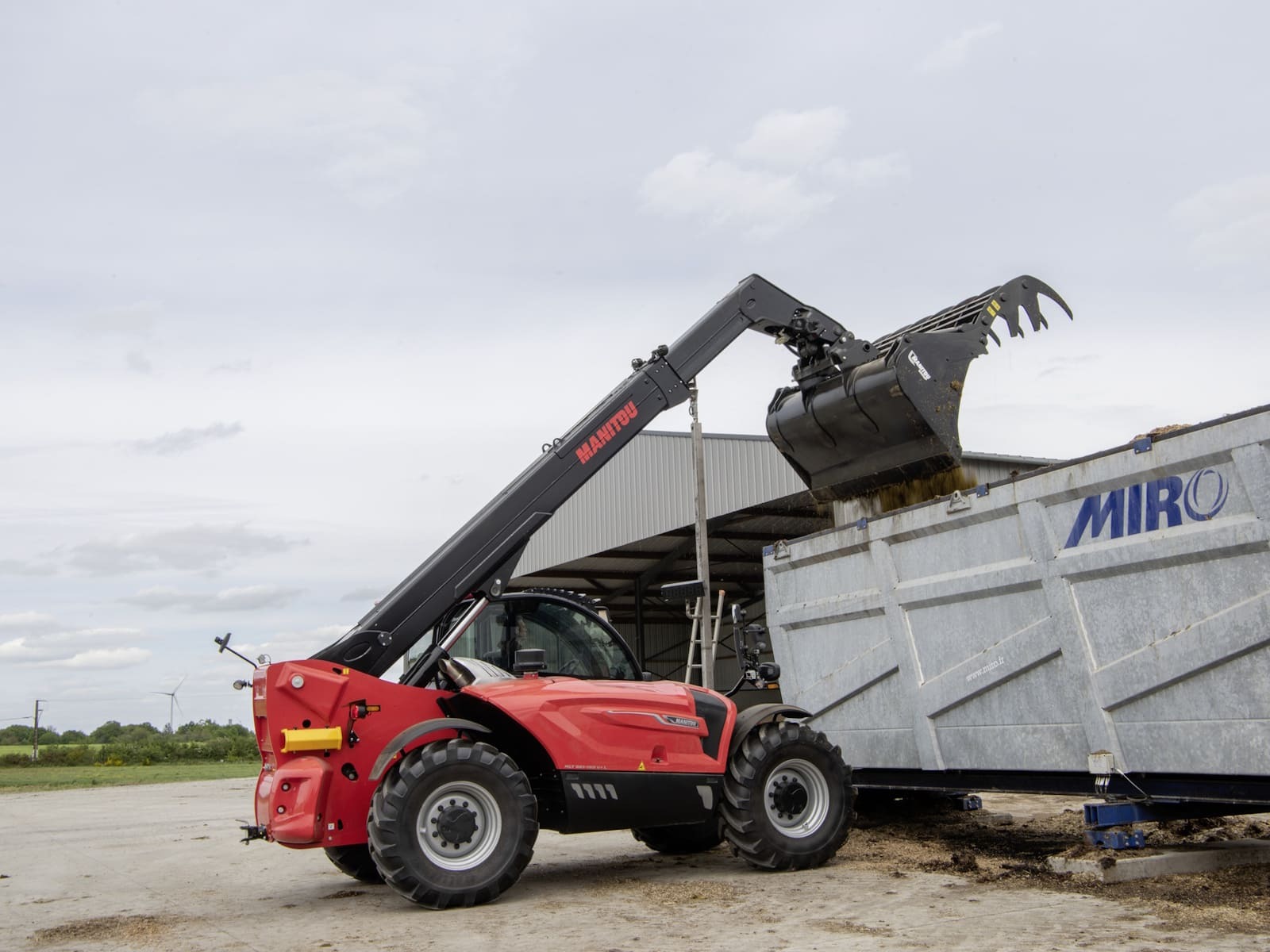

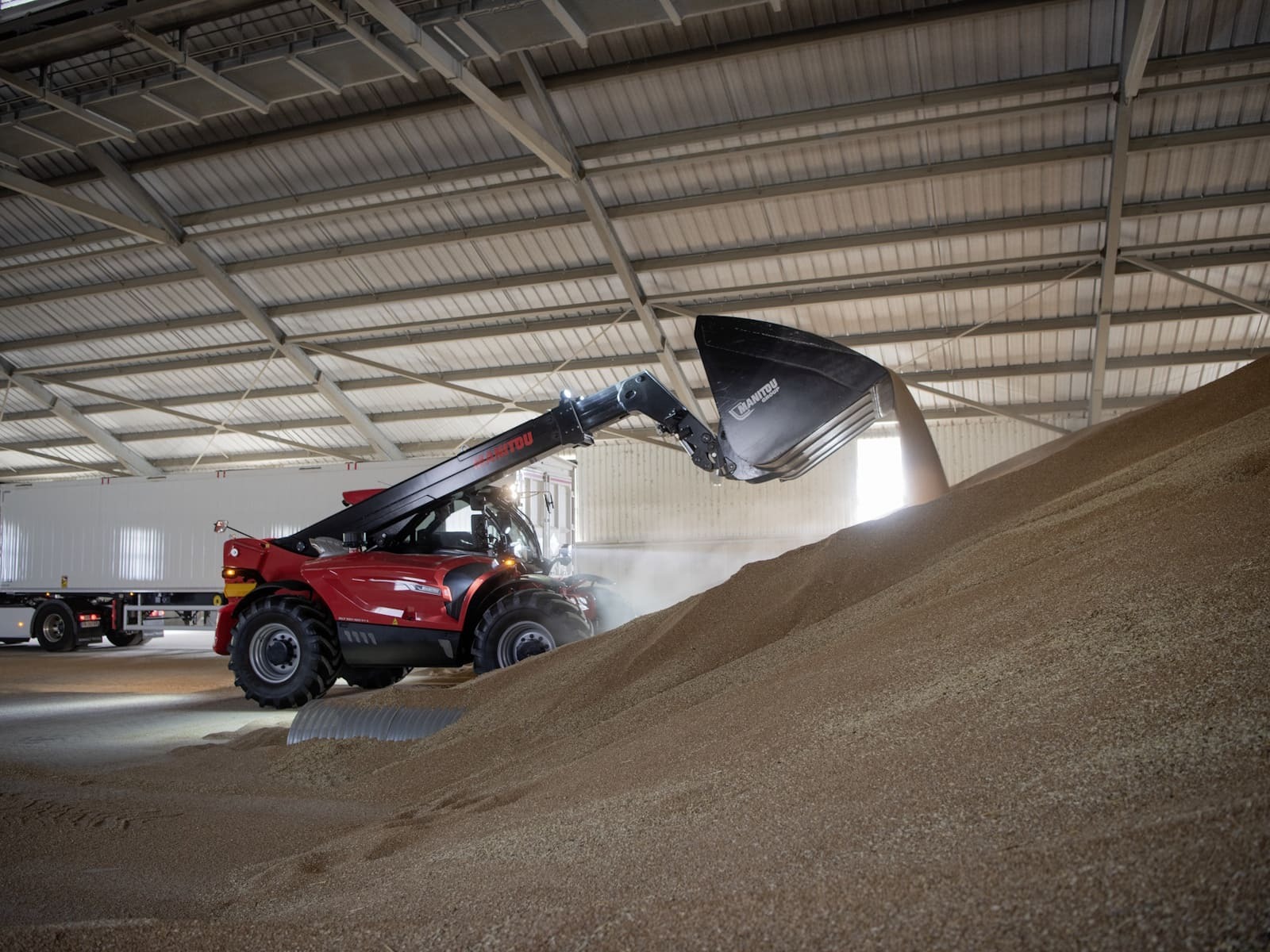

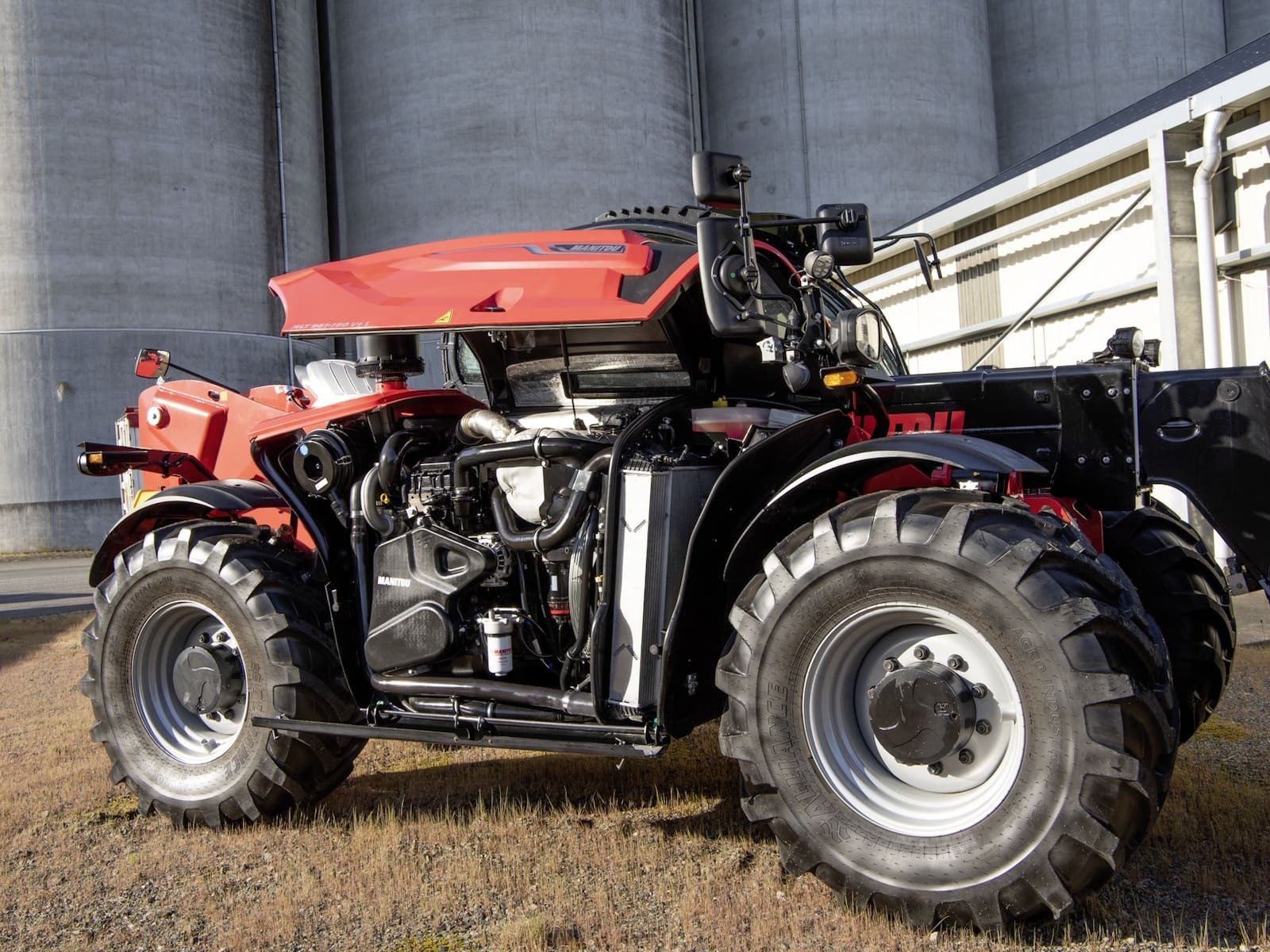

Designed for heavy duty applications with a power of 156 hp and a max. torque of 805 Nm, this telehandler has an air prefilter and an auto reversing fan. These features are perfectly adapted to dusty environments. The 200 l/min load sensing pump and the optional Intelligent Hydraulics package answer customers needs in terms of performances in agriculture and agro-industry.

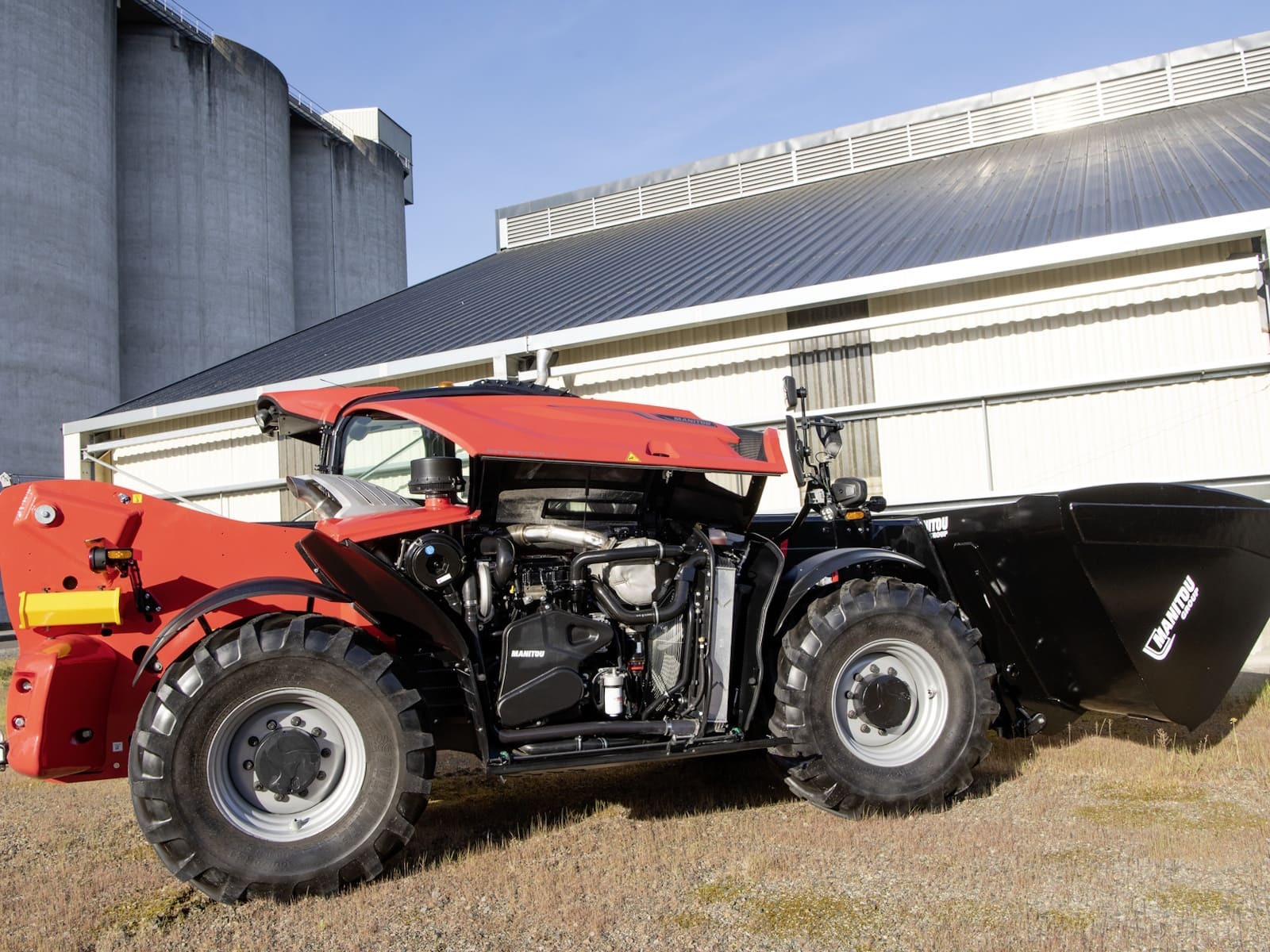

In terms of profitability, the MLT 961 combines easy maintenance (centralized position of greasing points, self cleaning air prefilter, connected machine, automatic greasing system option) and fuel consumption optimization (Eco mode, Ecostop / Regenerative Hydraulics options...) for an optimal total cost of ownership.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLT 961-160 V+ L
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 13228 lb
Height
8 ft 4 in | Max. lifting height: 29 ft 6 in | Reach at max. height: 3 ft 7 in
Notes
Max. outreach: 17 ft 5 in | Breakout force with bucket: 7300 daN | Front overhang: 5 ft 5 in | Tilt-down angle: 135 ° | Tilt-down angle: 135 ° | Frame leveling corrector: 7 ° | Lifting: 8.50 s | Lowering: 6.50 s | Extension: 7 s | Retraction: 6 s | Crowd: 3.80 s | Dump: 3.60 s | Drawbar pull (Laden): 9700 daN | Engine cooling system: 3 radiators water + intercooler + transmission oil | Max. travel speed: 25 mph | Hydraulic pump type: Variable displacement pump | Hydraulic flow - Pressure: 53 US gpm - 3916 PSI | Noise at driving position (LpA) tested following NF EN 12053 norm: 69 dB | Noise to environment (LwA): 105 dB | Vibration on hands/arms: < 8 ft/s² | Tractor homologation | Cab certification: Cabin ROPS - FOPS level 2
Weight
Unladen weight (with forks): 26345 lb
Ground Clearance
1 ft 6 in
Wheelbase
9 ft 10 in
Length
Overall length to carriage (with hitch): 20 ft | Overall length to carriage (without hitch): 19 ft 7 in
Width
8 ft 2 in | Overall cab width: 3 ft 3 in
Turning Radius
External turning radius (over tyres): 14 ft 1 in
Tires
Alliance - A580 - 500/70 R24 164A8
Wheels
Drive wheels (front / rear): 2 / 2
Steering
Manicrab, 2 wheel steer, 4 wheel steer, Crab mode
Engine
Yanmar | Stage V / Tier 4 Final
Cylinders
Number of cylinders - Capacity of cylinders: 4 - 279 in³
Power/Horsepower
156 Hp / 115 kW
Torque
Max. torque / Engine rotation: 594 ft/lbs @1350 rpm
Transmission
M-Vario Plus
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
Fuel Capacity
38 US gal | Hydraulic tank capacity: 48 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 6 US gal
