2026 Bigham Over Fold Tool Bars 4×4”

2026 Bigham Over Fold Tool Bars 4×4”

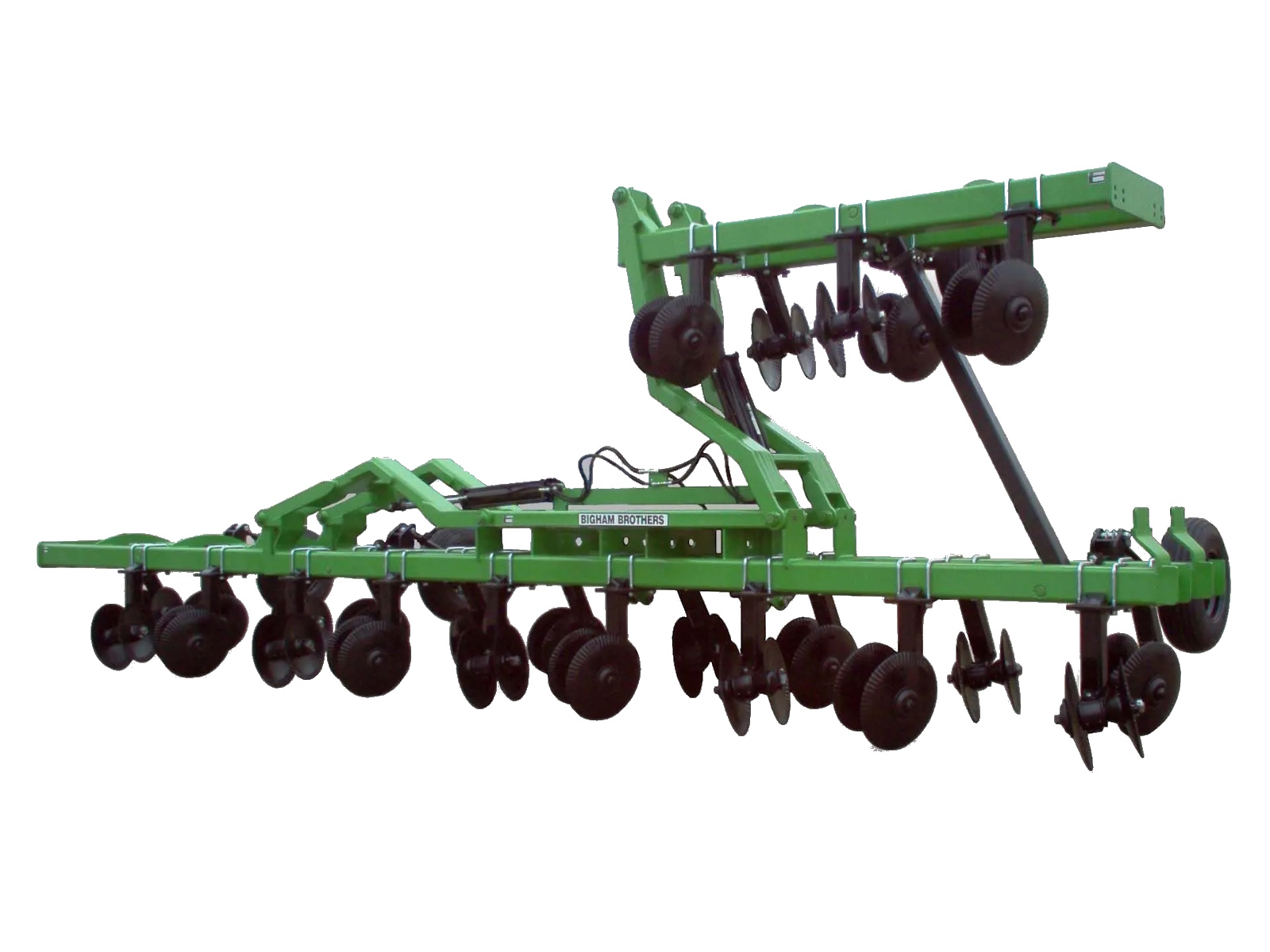

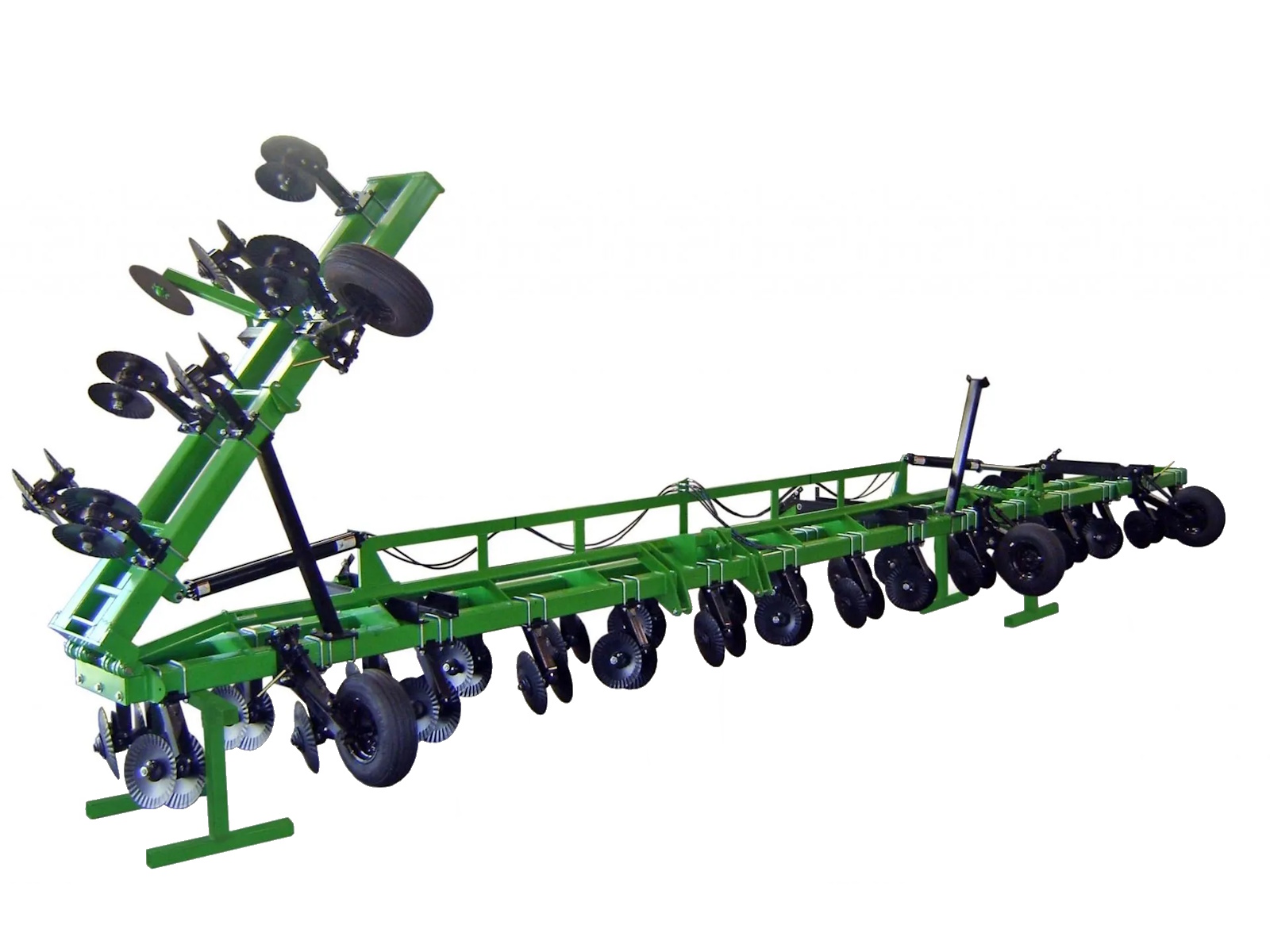

Bigham Over Fold Tool Bars give you an economical way to reduce your transport width and height with legendary Bigham quality.

Available in double 7×7” bars to triple and quad bars with combinations of 4×7” and 4×4” tubes, these tool bars give you the flexibility to outfit wide tools you can safely transport.

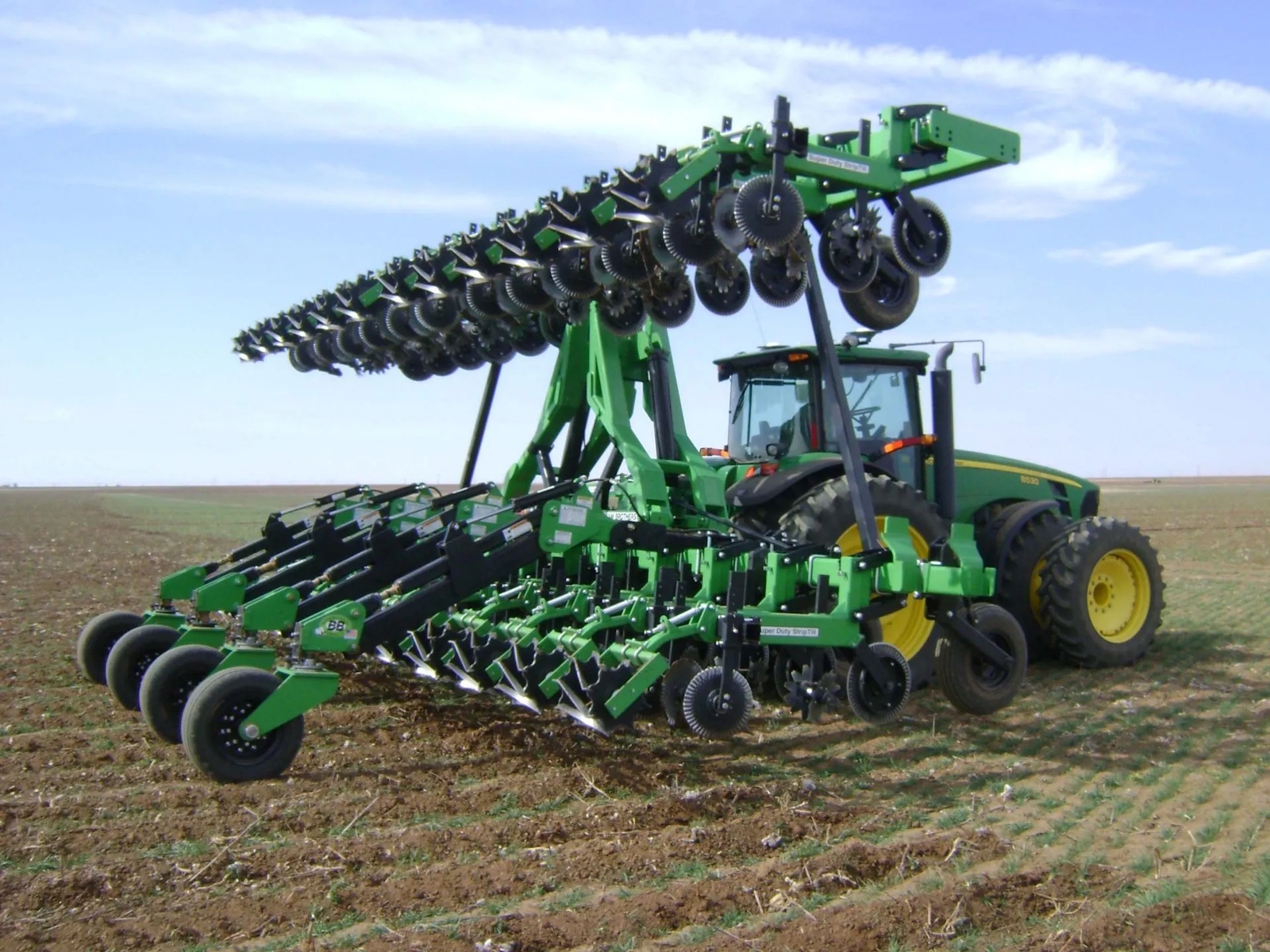

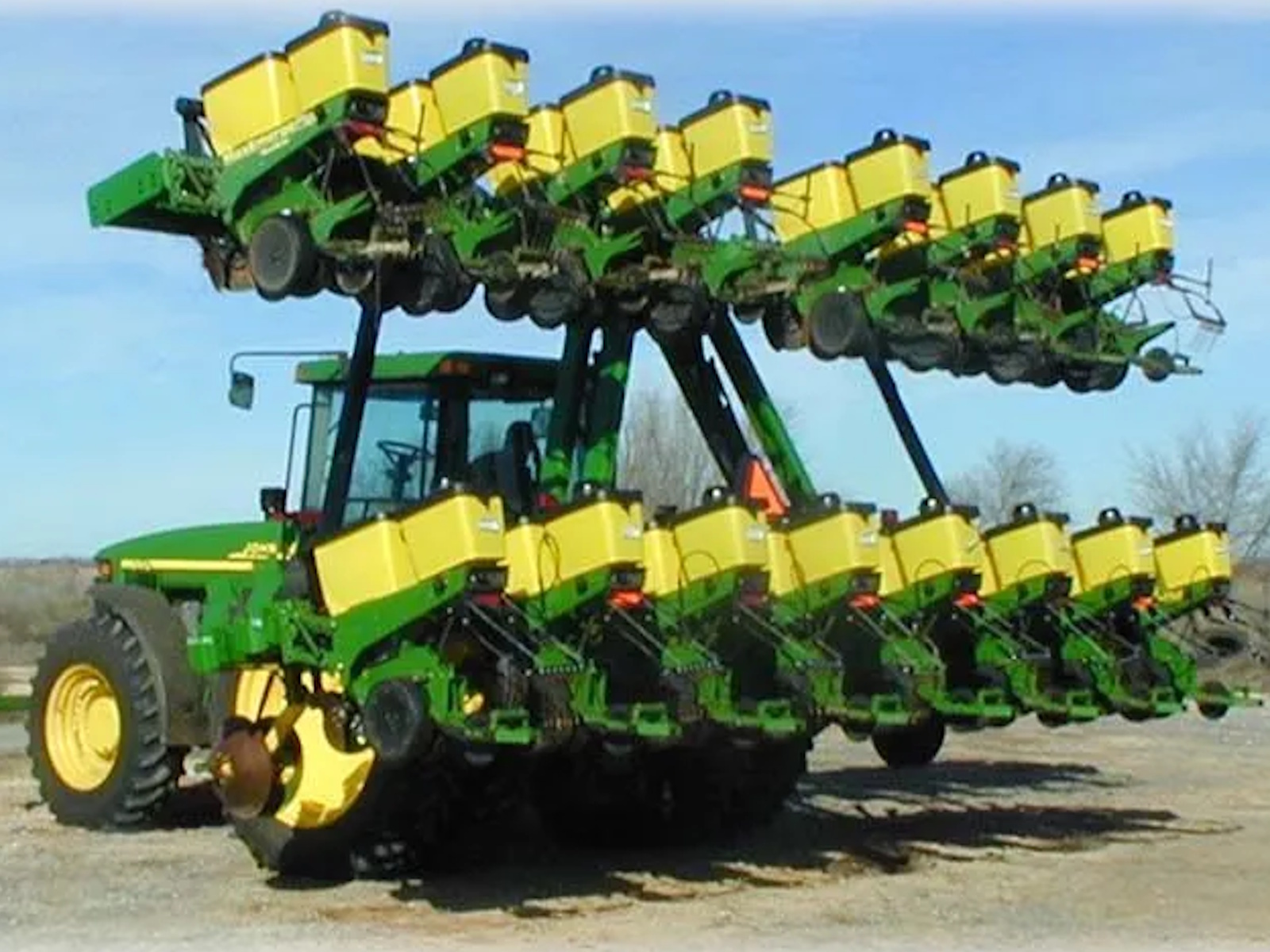

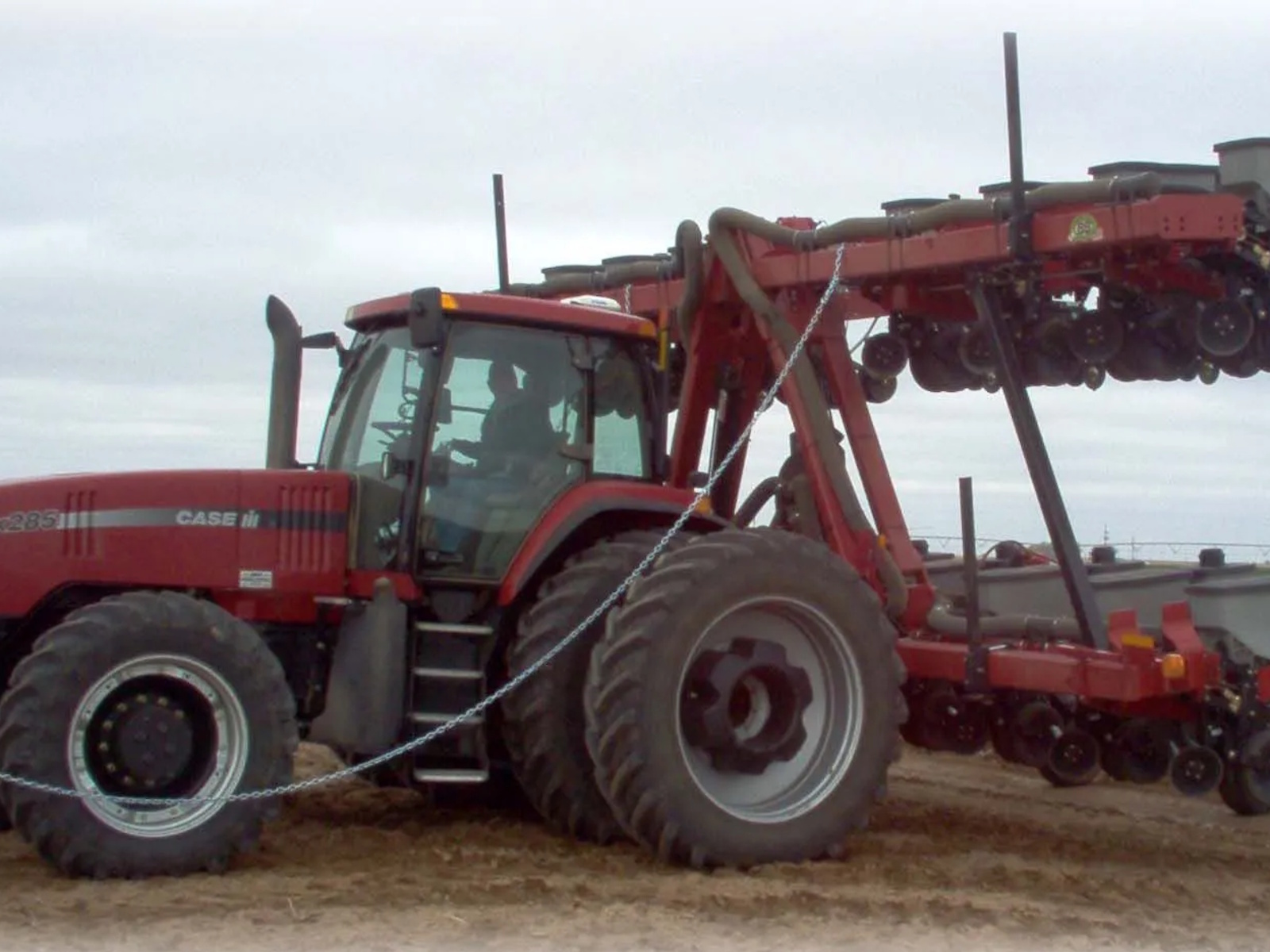

Wings fold inward past the ninety degrees normal vertical fold toolbars travel, up to another forty-five degrees past vertical, reducing your transport height for safety when passing under bridges and electrical wires.

Adjustment is provided to allow the wing to “droop” below horizontal from five to fifteen degrees, allowing the unit to conform to terraces and other surface irregularities.

Wing stands provided additional stability when traveling with wings raised.

Features May Include:

Standard Features on Over Fold Tool Bars

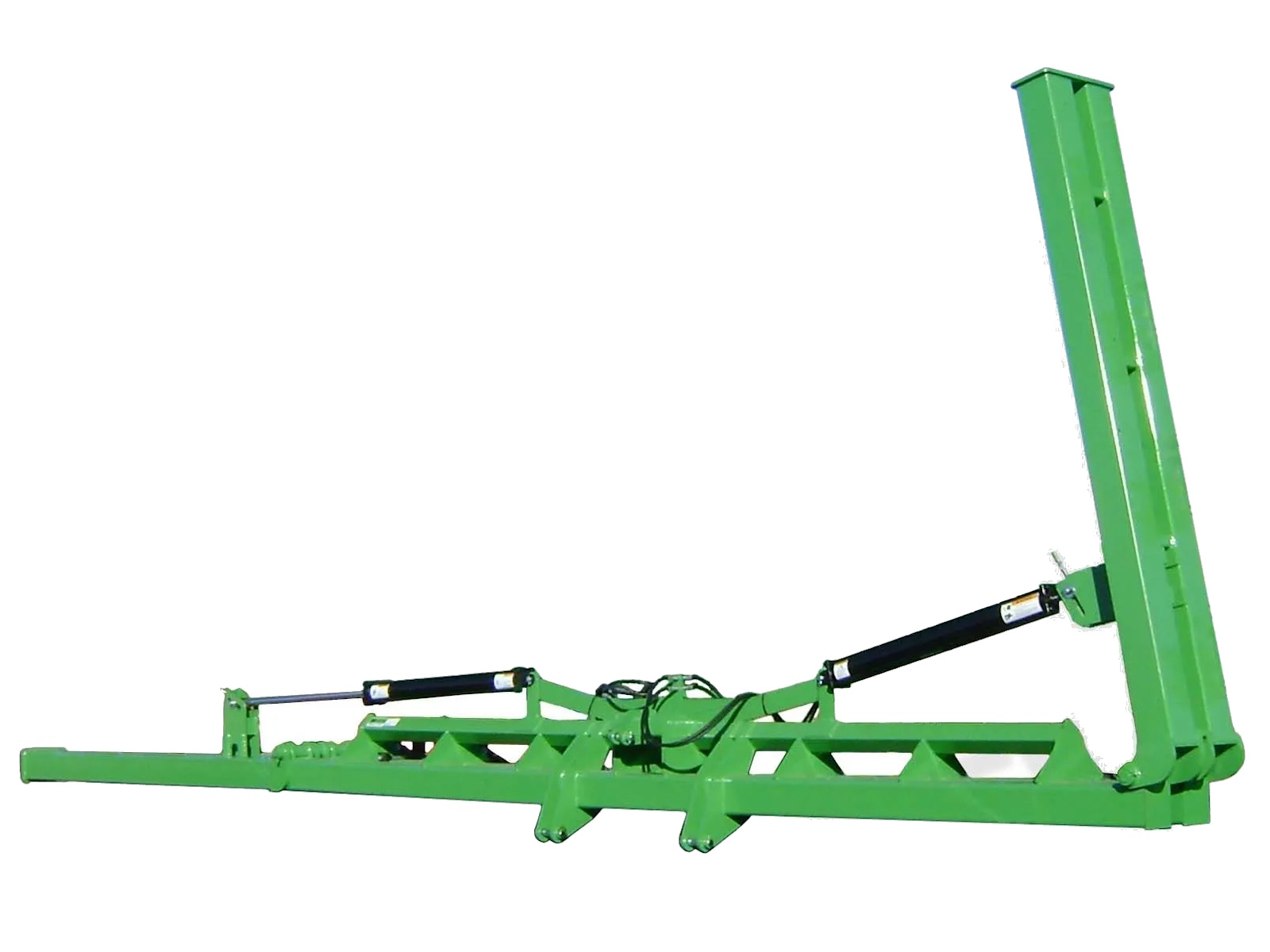

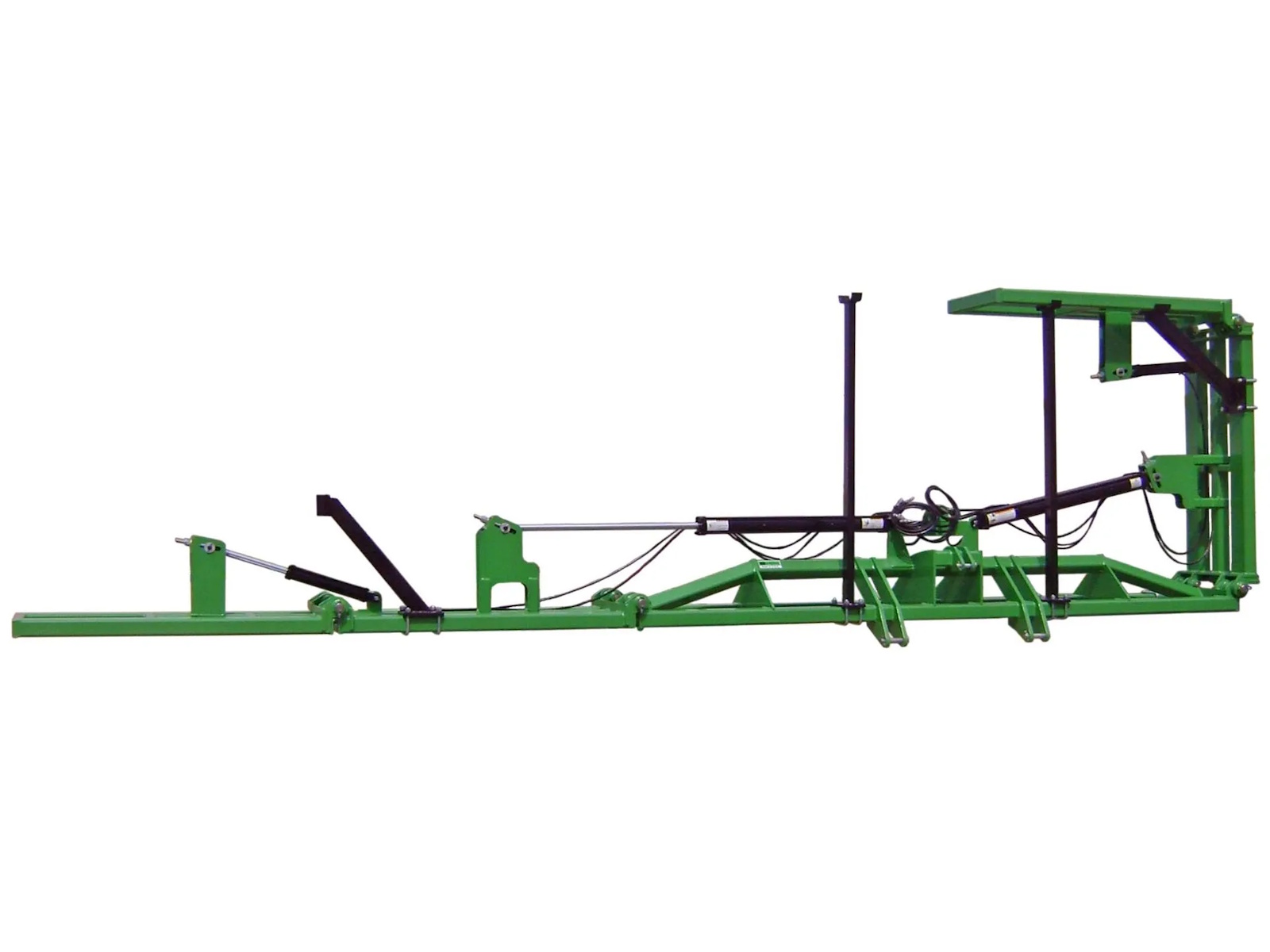

• 4 x 48″ Hydraulic cylinder provides capacity to lift any wing load with reduced operating pressure. Wings fold up and wings rest on stands for positive transport.

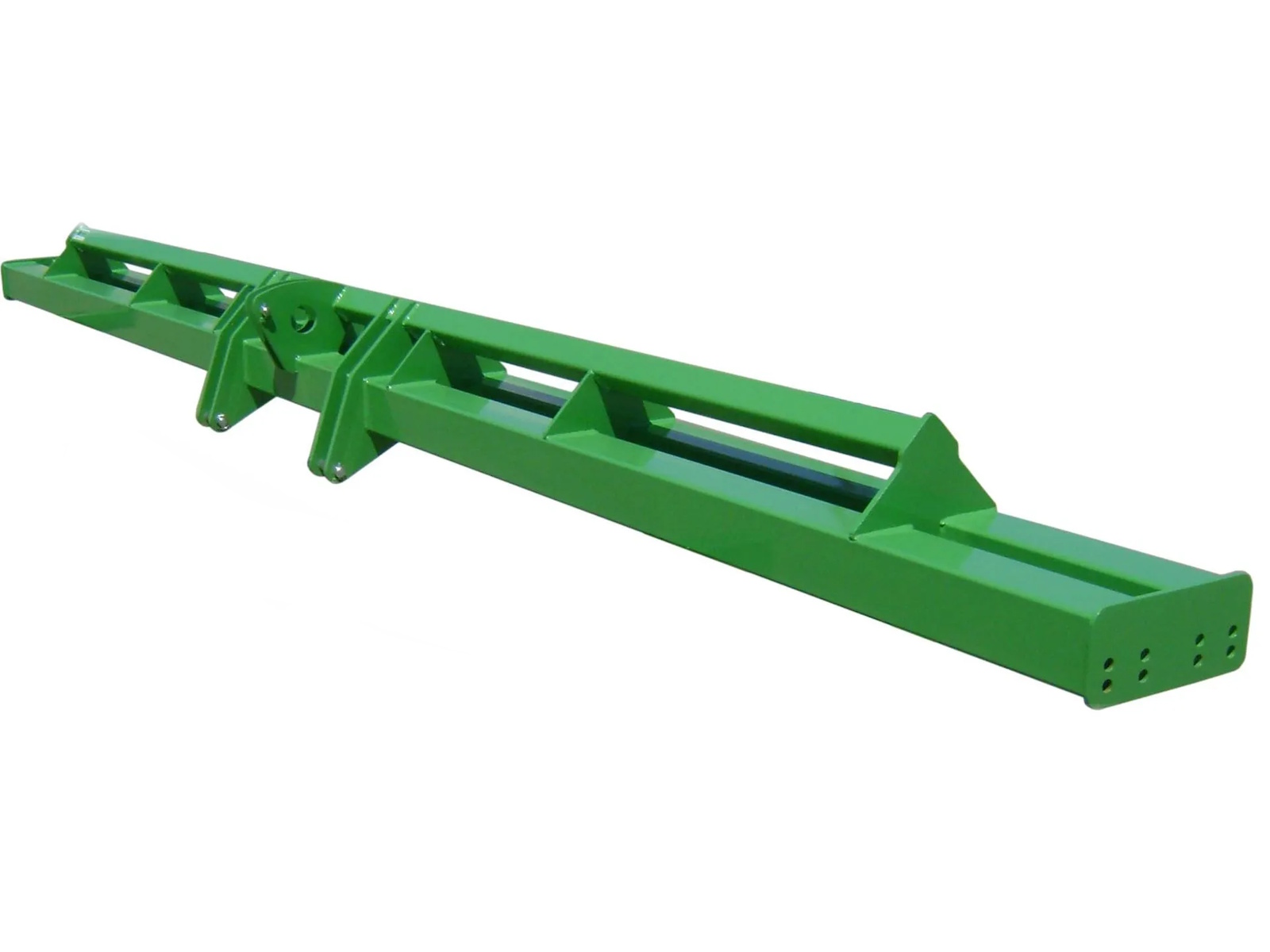

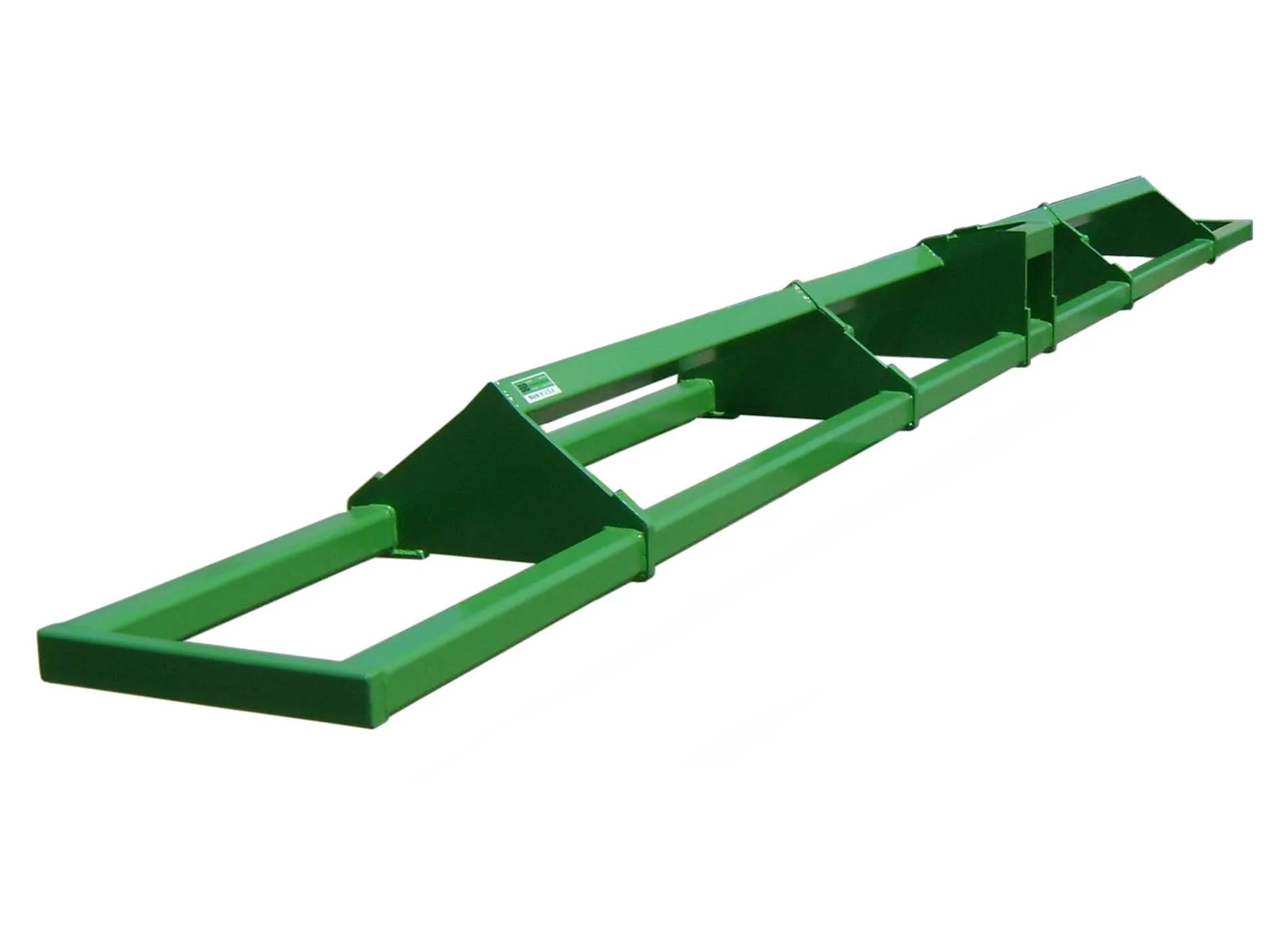

• Diamond mast design is enhanced by one piece stringer plates (braces) cut from solid 5/8″ plate. This design also centers cylinder and lifting lug between the bars of the wing. All tool bars are welded using pulse arc technology to minimize cracks near welds.
• Heavy duty hinge with 2” hinge pin sets hinge above the tool bar and allows the wings to fold over center, and bronze bushings for long life.
• Wings adjust downward from five to fifteen degrees to conform to soil surface.
