2026 ASV VS-75

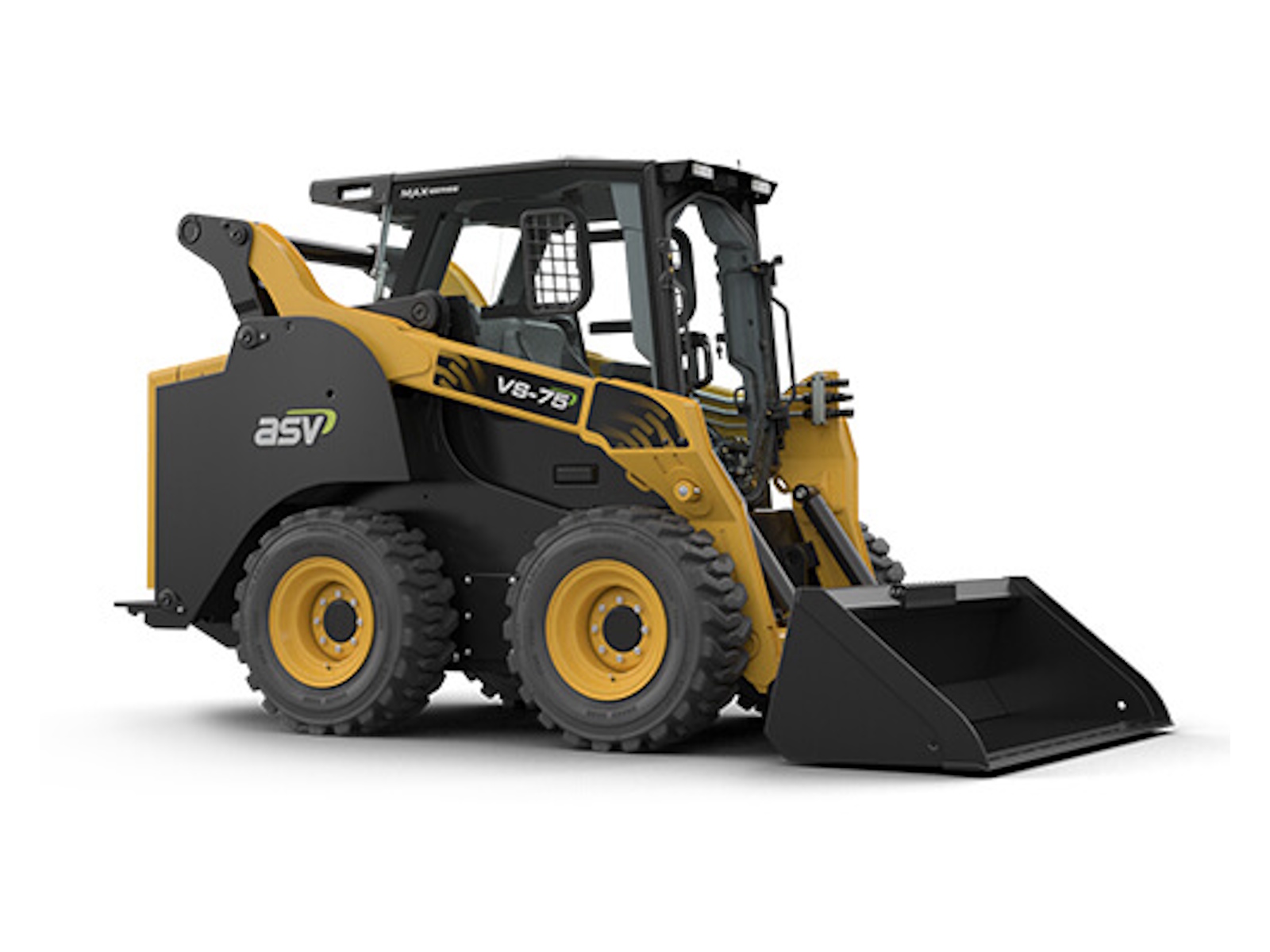

VS-75 Skid Steer
GET COMFORTABLE WITH MAXIMUM PRODUCTIVITY
With more operating weight, reach, tipping load and breakout force than the RS-75, the vertical lift VS-75 skid steer is perfect for loading, rental, construction, landscaping and snow-removal applications. The VS-75 is also built with a next-generation MAX-Series cab, providing more operator comfort than ever.
Impossible to Slow You Down
Created with the kind of technology you expect from ASV, this machine was born to be productive. It features industry-leading speed and ground clearance so you can get work done without worrying about running into stumps, rocks and other jobsite obstacles. The VS-75 is built to do a lot without slowing down at all.
Features May Include:
The Most Productive Skid Steer in The Industry
Power

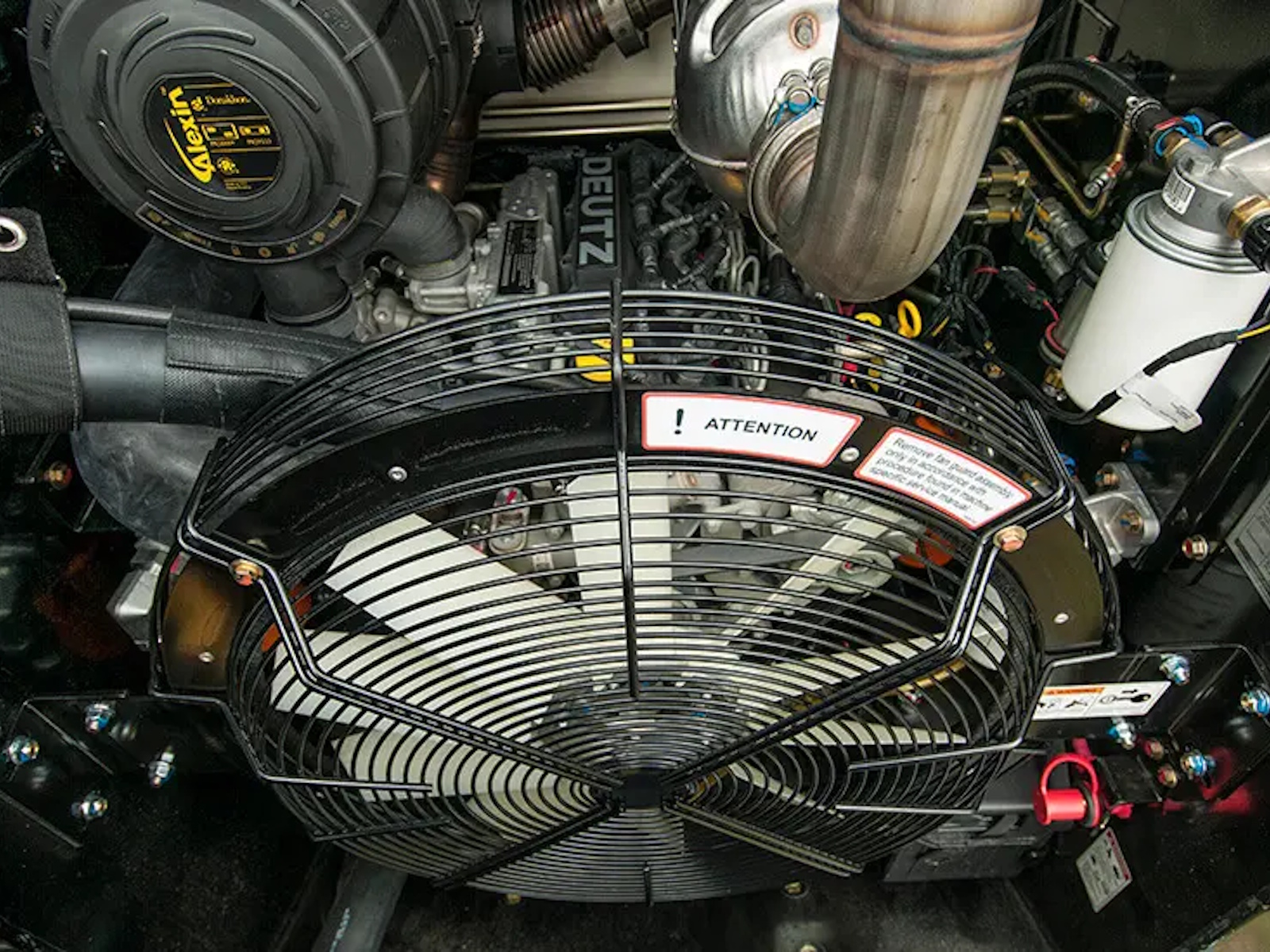

- The VS-75 gets up to 11 mph with an optional two-speed drive. The engine powering the machine is a 2.9-liter, 74-horsepower diesel engine that kicks out 192 foot-pounds of torque. The Tier 4 Final engine technology eliminates the need for regeneration, exhaust sensors and diesel exhaust fluid.
Performance
- This reliable system is composed of large lines, hydraulic coolers and direct-drive pumps. With the optional high-flow auxiliary hydraulic system the engine won’t lose power when running attachments. As an additional option, the VS-75 delivers flow of 30.9 gallons per minute and a system pressure of 3,335 pounds per square inch. This machine comes with standard hydraulic stick controls and quick-attach for attachments.
Comfort

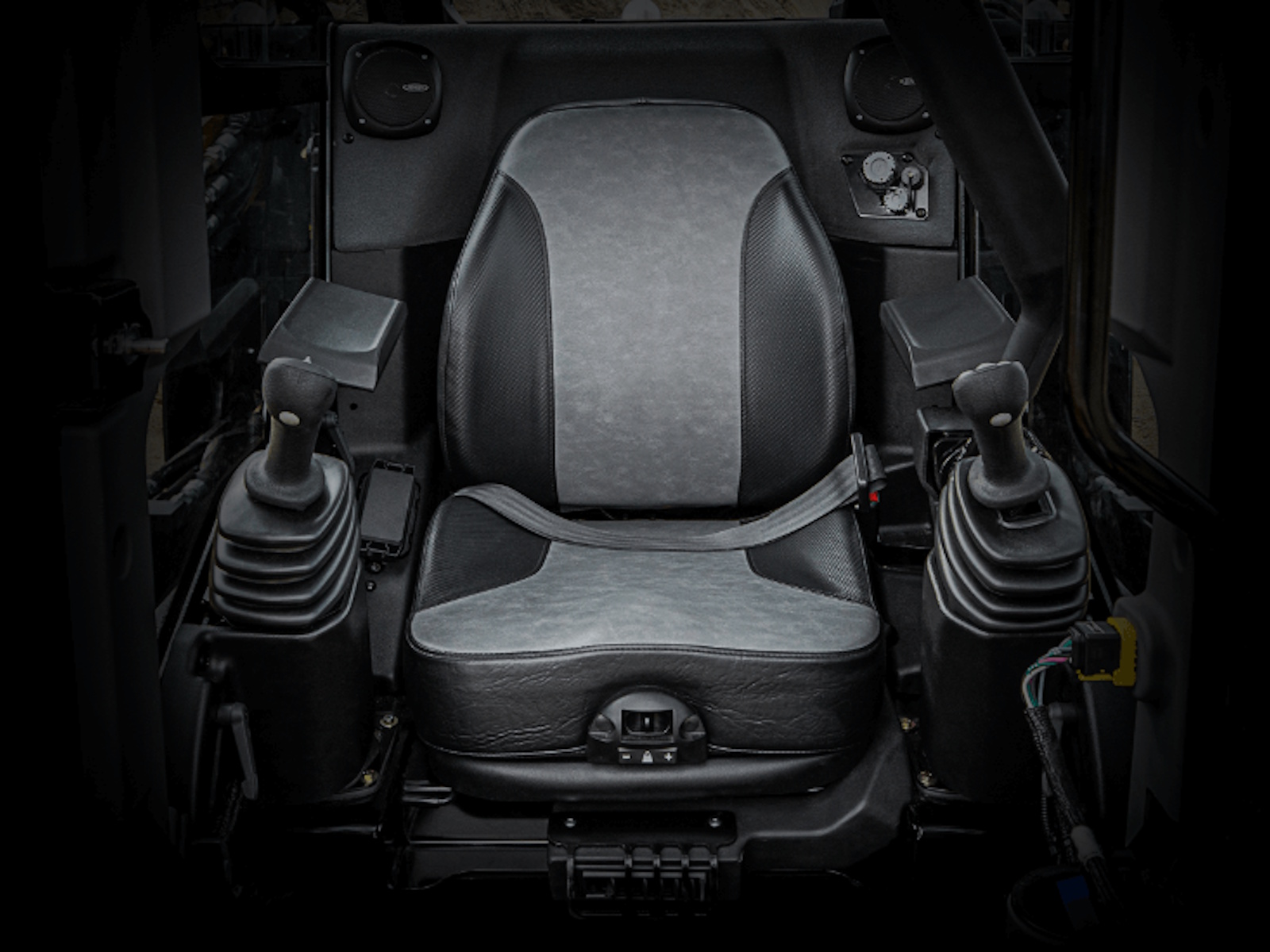

- Built with a next-generation MAX-Series cab, the VS-75 features plenty of creature comforts that let operators work more comfortably for longer periods of time: more all-around space, improved ergonomics, an upgraded HVAC system for better circulation and defrosting, standard joystick controls and an optional all-weather pressurized cab for a cleaner operator environment.
Serviceability
- Every service item has a drain plug to speed up the draining process—that includes the chain cases, hydraulic tank, radiator and engine oil pan. To save you down time, the engine, filters and other daily check points can be accessed through a swing open access door. All of the pins have zerk fittings to make greasing easier and the drive hubs don’t require maintenance because of their standard metal-face seals.
Info
Industry
Agriculture
Make
ASV
Model
VS-75
Trim
Base
Year
2026
MSRP
N/A
Category
Skid Steer Loader
Subcategory
General
Specs
Load Capacity
Operating Capacity (50% of tipping load): 3,500 lbs | Tipping Load: 7,000 lbs | Breakout Force At Bucket Edge: 5,920 lbs
Fuel Type
Diesel
Cylinders
4-cylinder
Torque
Torque, Peak: 192 ft-lb ( 260 Nm )
Steering
Loader Control: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus variable control of auxiliary hydraulic. | Drive Control: Left-hand pilot hydraulic joystick controls machine speed and direction.
Length
Full: 131 in | Overall Length with Bucket: 146 in
Ground Clearance
Unloaded: 10.4 in | Loaded: 10 in
Alternator
Charging System: 95 amp alternator.
Interior
Outlets: 1-12 V port inside operator station. | Machine Display: Engine RPM, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hourmeter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging. Deluxe includes: 7” color touch screen, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules. | Convenience: 12 V power port. | Standard Features: Horn, backup alarm, cupholder, phoneholder, behind seat storage, rear view mirror, lapbar, roof escape hatch, roof panel & rear cab windows. Premium Features: Adjustable joystick & arm rest positions, adjustable directional & air flow HVAC vents, radio with bluetooth & USB, frameless front door, attachment control kit, wiper/washer, beacon switch/outlet, easy-off door. | ROPS: Restraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471. | FOPS: Meets ISO 3449: Level I and II (Optional).
Notes
System Pressure, Max: 3,335 psi | Standard Pump Capacity: 26.1 gpm Optional: 30.9 gpm | Controls: Variable flow via joystick button or continuous via console switch, mode selectable via dash-mounted switch. | Couplers: Push-to-connect quick couplers mounted on loader arms. Pressure relief valve mounted to coupler block. | Emission Controls: Meets all U.S. EPA Tier 4 final standards.
Family/Type
Vertical Lift Skid Steer Loader
Engine
Deutz TCD 2.9 L4
Displacement
177 in.3
Drivetrain
Drive System: Hydrostatic. | Chain Case: Bow tie drive system. | Chain Size: 100 ANSI chain.
RPM
Gross Power Rating At 2600 RPM.
Lubrication System
Width
Width Over Tires: 72 in | Width Over Tires With Rims Reversed: 66 in
Wheels
Wheel Size: 12 x 16.5 in
Electrical
Nominal Charge: 12 V. | Wiring: Pre-wired for all factory-available accessories. | Illumination: 2 - Fixed forward-facing halogen lights, 2 - Adjustable rear-facing halogen light, 2 - LED Side lights (optional), 1 - Interior light.
Starter
Block Heater
Seats
Vinyl seat with built in operator presence switch, Operator Manual pouch, and 2 in wide seat belt, adjustable position seat optional.
Style
Loader Arms: Vertical.
Engine Type
Diesel, 4-cylinder, turbocharged. | Cooling System: Engine-driven fan and coolant/anti-freeze-filled radiator.
Power/Horsepower
Gross Power Rating: 74 hp | Engine Power: 74.2 hp.
Transmission
Travel Speed, Maximum- 1st Speed: 8.1 mph | Travel Speed, Maximum- 2nd Speed: 11 mph
Throttle
Engine Speed: Hand-operated dial, foot throttle optional
Height
Hinge Pin Height: 130 in | Machine Height: 84 in
Weight
Operating Weight: 8,910 lbs | Shipping Weight: 8,095 lbs
Battery
800 CCA
Air Filter (Cabin)
Intake Air Cleaner: Dual stage
